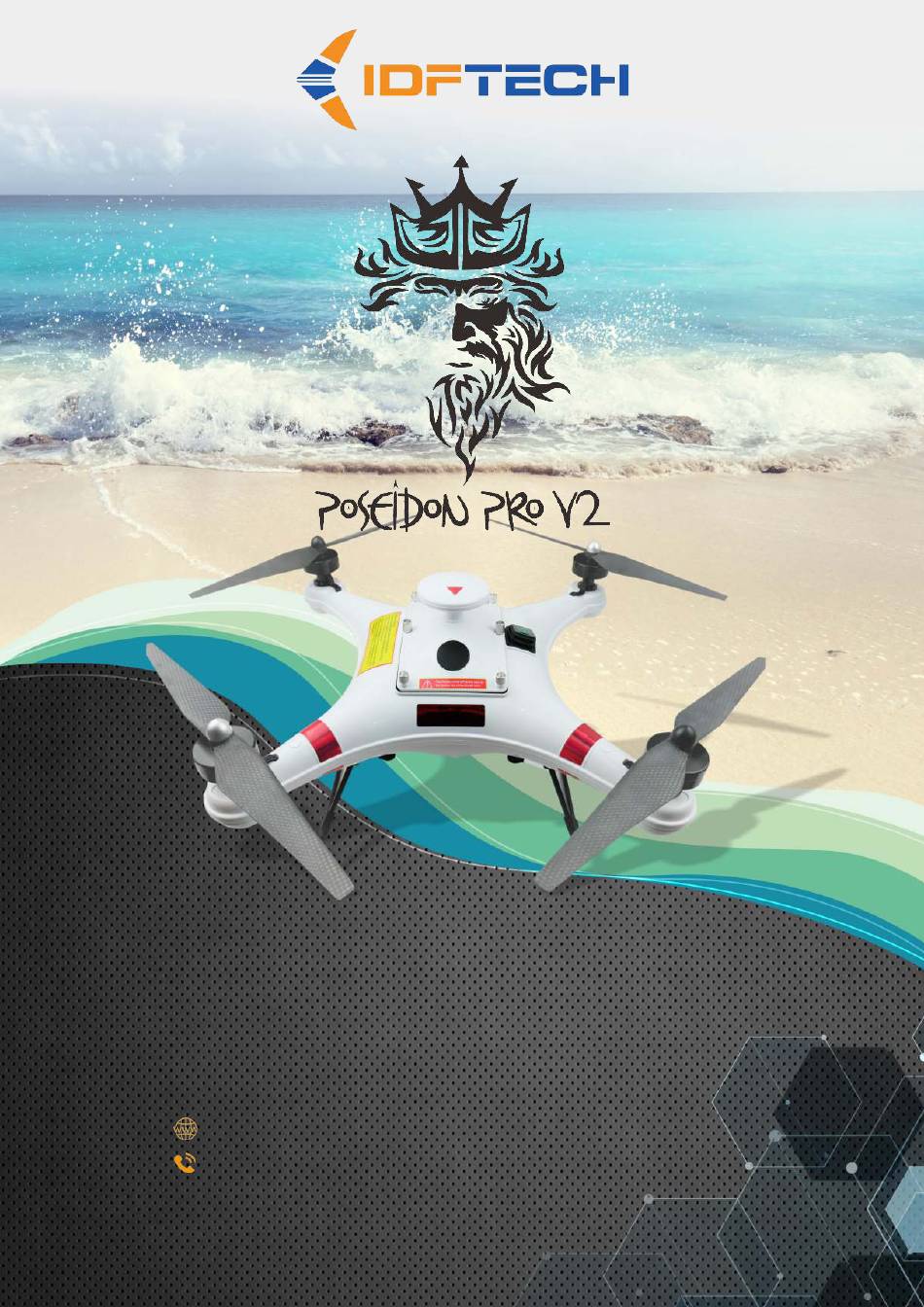

- Page 1 User Manual V2 Shenzhen Idea-Fly Technology Co., Ltd www.idea-fly.com/en/ +86 0755 23110006 Room 201, Building 1, Jianhui Road I Industrial Park, Longuha Street, Longhua District, Shenzhen @2020 iDFTECH...
-
Page 2: Table Of Contents
Selecting Flight Modes Assembly Propeller Installation Landing Gear Fitment Installing Quadcopter Battery LED Indicators Compass Calibration Quadcopter Control Operation First Flight Checklist Learning to Drop Baits Care and Maintenance Poseidon-Pro Technical Specifications Symbol Meanings Important/Caution Warning Attention Note @2020 iDFTECH... -
Page 3: Disclaimer
Please avoid reckless flying like low level flying, high speed flying, racing the bait out. Always climb to 25M before flying your bait. Sale Terms and Conditions Please consult the terms of sale from your dealer or sales agent. @2020 iDFTECH... - Page 4 GPS glitch, magnetic or signal interference you will need to MANUALLY pilot the drone home without the aid of GPS MODE by selecting ATTI Mode. A useful APP is UAV forecast - this APP tells you if the GPS satellite signal will be good or bad. @2020 iDFTECH...
-
Page 5: Safety Precautions
Do not attempt to fly the aircraft with a damaged propeller as this can cause the aircrafts stability to deteriorate or become unmanageable, resulting in the potential loss of the drone and/or causing personal injury. Make sure that all propellers are installed in the correct order as per the manual’s instructions. @2020 iDFTECH... -
Page 6: Features
Poseidon Pro APP supports both IOS and Android operating systems.You can also take video and photos directly to your phone or tablet via the App. Poseidon Pro V2 comes with a Polarised Lens CAP making it easier to see into the water. -
Page 7: Components List
Different contents configurations may apply, please refer to the actual configuration list at the time of purchase. DOWNLOAD SOFTWARE Download the Poseidon-Pro App to your Android or iPhone mobile or tablet. The App Name is IDFTECH and it can be downloaded from the App store. -
Page 8: Remote Controller
Always turn the remote control on before you connect the battery or turn on the quadcopter, and likewise when shutting down - remove the quadcopter’s battery or turn off the quadcopter before you turn the remote controller off. @2020 iDFTECH... -
Page 9: Quadcopter
2. Using the arrow button <> select the following parameters and press enter after each selection. Charging Method B A L A N C E 5A setting for 4500mAh standard battery Charging Current 10A setting for 10000mAh optional battery @2020 iDFTECH... - Page 10 Wind levels and heavy baits will affect the batteries power levels significantly – ALWAYS pay attention to the drone and remote controller’s battery levels Study the LiPo voltage chart below to assist you with your battery condition checking – Use the BX100 battery checker If a LiPo battery swells or is deformed – Discard it Immediately! @2020 iDFTECH...
-
Page 11: Starting And Stopping Motors
When flying in GPS mode, should you find that the aircraft is flying unstably or uncontrollably, please switch the flight mode to attitude mode to regain full control of the aircraft to avoid accidents. Return aircraft and re calibrate compass. @2020 iDFTECH... - Page 12 - one of them can be used. When the heading/return point is recorded, the LED is successfully recorded with a flashing green light. When manually recording the forward and return points, do not switch between closing and return point lock, which may cause the heading lock to be re-recorded. @2020 iDFTECH...
-
Page 13: Assembly
5. Turn the rocker switch to the on position ‘-‘, At this stage the remote controller should sync with the quadcopter and display on the LCD. The Drone battery Level indicator is displayed on the App not the remote Controller. @2020 iDFTECH... -
Page 14: Led Indicators
LED Indicators Always turn the remote controller on first, then turn on the Poseidon-Pro power. Do not shake the Poseidon Pro when the system is initializing, once initialized the LED indicator will display the following light sequence. @2020 iDFTECH... -
Page 15: Compass Calibration
2. Quickly switch back and forth between the GPS mode and return mode of SWB switch for about 5-9 times until the LED indicator on the aircraft remains yellow. 3. Horizontal calibration Hold the quadcopter Horizontally and rotate 360° anti-clockwise until the LED indicator displays a solid green light. Horizontal Calibration @2020 iDFTECH... - Page 16 If the calibration is successful, the calibration mode will automatically exit, and the LED indicator light will flash normally, however if the calibration fails a red light will flash. At this point, switch the control mode again to cancel the current calibration state, and recalibrate from the third step. @2020 iDFTECH...
-
Page 17: Quadcopter Control Operation
1 mode 2 left hand is throttle Right hand is throttle Remote controller instruction The aileron control the flight to the left/right mode 1/mode2 the direction axis controls the left/right rotation of mode 1/mode2 @2020 iDFTECH... -
Page 18: First Flight Checklist
$100 drone and practice, practice, practice. First Flight Checklist • Ensure you have downloaded the IDFTECH App and setup the App as per the user manual and videos directions Check the remote controller and drone batteries are fully charged •... - Page 19 - Re-do compass calibration immediately – If you cannot calibrate the drone abort and relocate to a different area. Download the APP UAV Forecast – This useful App will display the best days to fly and GPS signal strength on that day. @2020 iDFTECH...
- Page 20 – Commit to Disarm as failure to do this could result in damage to the motors and or propellers. Once the drone has landed and the motors have completely stopped, turn the drone off and then turn off the remote control in this sequence. @2020 iDFTECH...
-
Page 21: Learning To Drop Baits
Do not attempt to carry more than half a kilo while you are learning. The Poseidon Pro V2 can carry 700gms baits out to 200metres four - five times on average and dependent upon wind conditions. - Page 22 The overall length of the rig should be no less than 4 metres and is dependent on the water depth you are dropping into - ideally 6 metres to drone reduces the pendulum effect. NOTE: Using lower than 0.7mm line to the drone will cause tangles. @2020 iDFTECH @2020 iDFTECH...
- Page 23 Once the landing is detected the system will stop the motors. It is advisable to take control of the drone and land manually to save battery time. Always wait until the props have completely stopped spinning before approaching the drone. Once landed turn the drone off. @2020 iDFTECH...
-
Page 24: Care And Maintenance
Once the drone is completely dry treat the motors and bait release with an anti-corrosion fluid such as Corrosion-X. Treat external battery terminal with anti-corrosion fluid also. Salt water will always start corrosion somewhere – Use a quality corrosion and water displacement spray that does not gum up such as CorrosionX. @2020 iDFTECH... -
Page 25: Poseidon-Pro Technical Specifications
Max Tilt Angle 35° Max Ascent speed 6m/s 35° Max Descent Speed 4.5m/s Max Wind Speed 8 m/s BAIT RELEASE AND CAMERA Bait Release Mechanism Waterproof and made from corrosion resistant materials Camera Waterproof 720p HD FPV Camera @2020 iDFTECH... - Page 26 7300mAh Voltage 22.2 V Charging current Battery Type Lipo 6S Battery Weight 650 g Operating Temp to 50 Max Charging power 100W BATTERY CHARGER Type 100W Smart Balance Charger LiPo Battery Charge Time 7300mAh 5A setting 110 Minutes @2020 iDFTECH...
