- Page 1 ED210 Staff badge_datasheet_V1.0.0 ED210 LoRaWAN Smart Badge User Manual V1.0.0 Document Revision Record Version Time Description Remark V1.0.0 2019-12-28 Preliminary version Mike...
- Page 2 ED210 Staff badge_datasheet_V1.0.0 Table of content 1. Description ................................- 3 - 2. Features ................................... - 3 - 3. Interface ................................... - 2 - 4. Specification ................................- 2 - 5. Operation guide ..............................- 3 - 6. Package ..................................- 3 -...

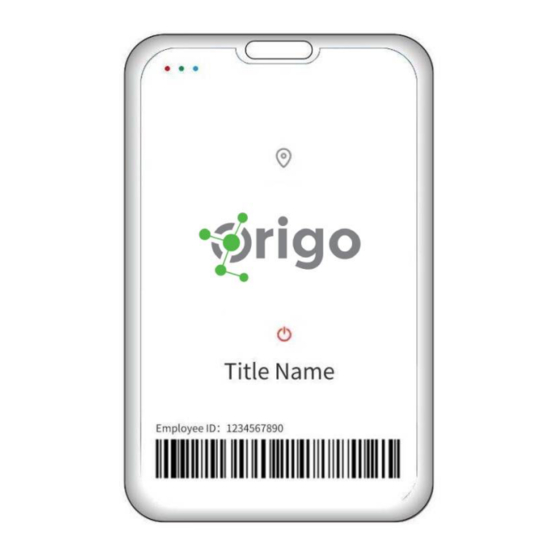

- Page 3 ED210 Staff badge_datasheet_V1.0.0 1. Description ED210 is a smart ID badge based on LORAWAN network transmission. It supports GPS and Beidou dual-mode outdoor positioning and Bluetooth 4.0 indoor positioning. The positioning accuracy is 10～20meters outdoor and 3~5 meters indoor. Through the intelligent tracker, beacons, LoRaWAN gateway and Web platform/APP, it can realize the real-time positioning of staff and visitors.
- Page 4 ED210 Staff badge_datasheet_V1.0.0 3. Interface 3.1 LED Indicator&Buttons Description Remark Status Solid red under charging RGB Red LED indicator Flashes every 32seconds when battery less than 10% RGB Green Solid green when fully charged LED indicator Flashes 5 times in a row when successfully positioned...
- Page 5 ED210 Staff badge_datasheet_V1.0.0 Battery Build in 900mah Rechargeable Li -battery Charging interface Type-c Waterproof charging interface Buttons 1-power button 2-Re-positioning button Battery life More than 40h@ 5 minutes GNSS positioning interval Enclosure IP66 Dimensions 86.5*55*8mm Build in NFC, detect range : 1-15cm...
