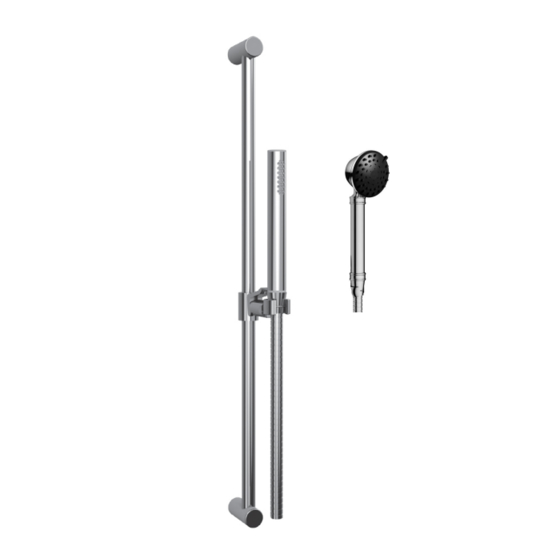

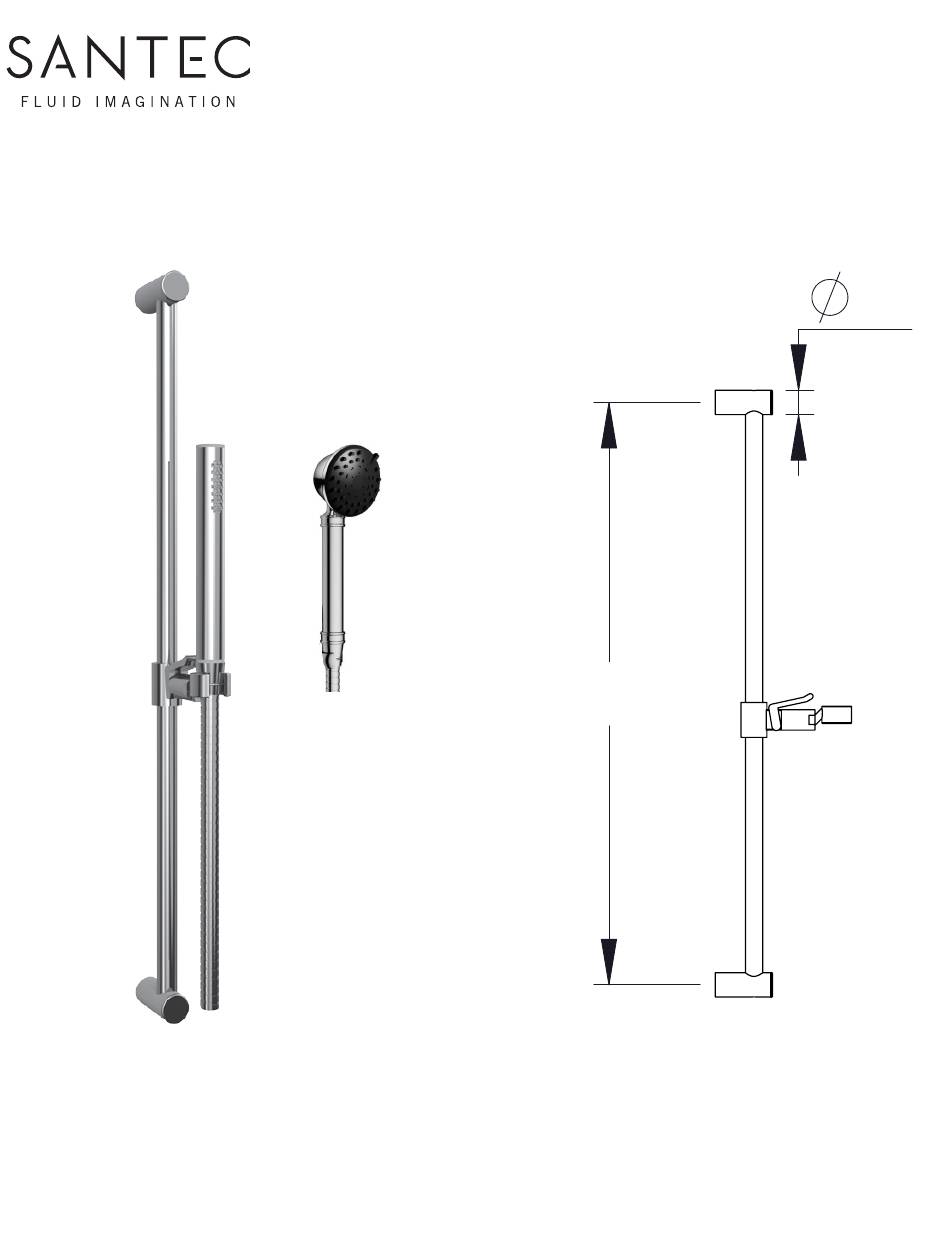

- Page 1 R ev . 4/21 GENERIC PE RS O N AL H AN D S H O WE R SL I DE BA R M ODE L: SL-142 or 708452 WITH OPTIONAL VARIOUS HAND SHOWERS 1" 24"...
- Page 2 S l i d e B a r C o m p o n e n t s Top Post 2x Cap Slide Bar Shower Holder Bracket 2x Toggle ( 6x30) Bottom Post 2x Screw (ST4X30)
- Page 3 I n s t a l l a t i o n Step 1: Insert shower holder bracket onto the slide bar. Press down on the bracket lever to loosen the grip for ease of insert. The threaded end of the slide bar should be pointed upward. Press Threaded Bottom...
- Page 4 Step 2: After determining the slide bar's location on the wall use the bottom post and mark the hole (hole A) on the wall with a marker. The bottom post can be identified with its exhaust hole as shown in the right image below. Bottom post Exhaust hole Marker...
- Page 5 Step 4: Slightly screw the slide bar into the top post. Leave enough room for a marker and screw to be inserted through the post as shown below. Front view offthe top post with the slide bar slighlty screwed in Step 5: Insert the non-threaded end of the slide bar assembly all the way into the bottom post that is mounted to the wall.
- Page 6 Step 6: Mark the hole (hole B) with a marker. Remove the slide bar assembly. Proceed to drill hole B on the mark. Marker Drill hole B Step 7: Inject the silicon into hole B and insert a toggle into it. Insert back the slide bar assembly all the way into the bottom post.
- Page 7 Step 8: Press down on the bracket lever and rotate the slide bar into the top post until it is tightened. Put the caps onto the posts to cover. Installation is now complete. Press...
- Page 8 O P T I O N A L A S S E MB LY F O R H A N D S H O W E R H O S E C O N N E C T I O N T O S U P P L Y E L B O W Note: Position supply elbow ac cording to personal preference per location of water source.
