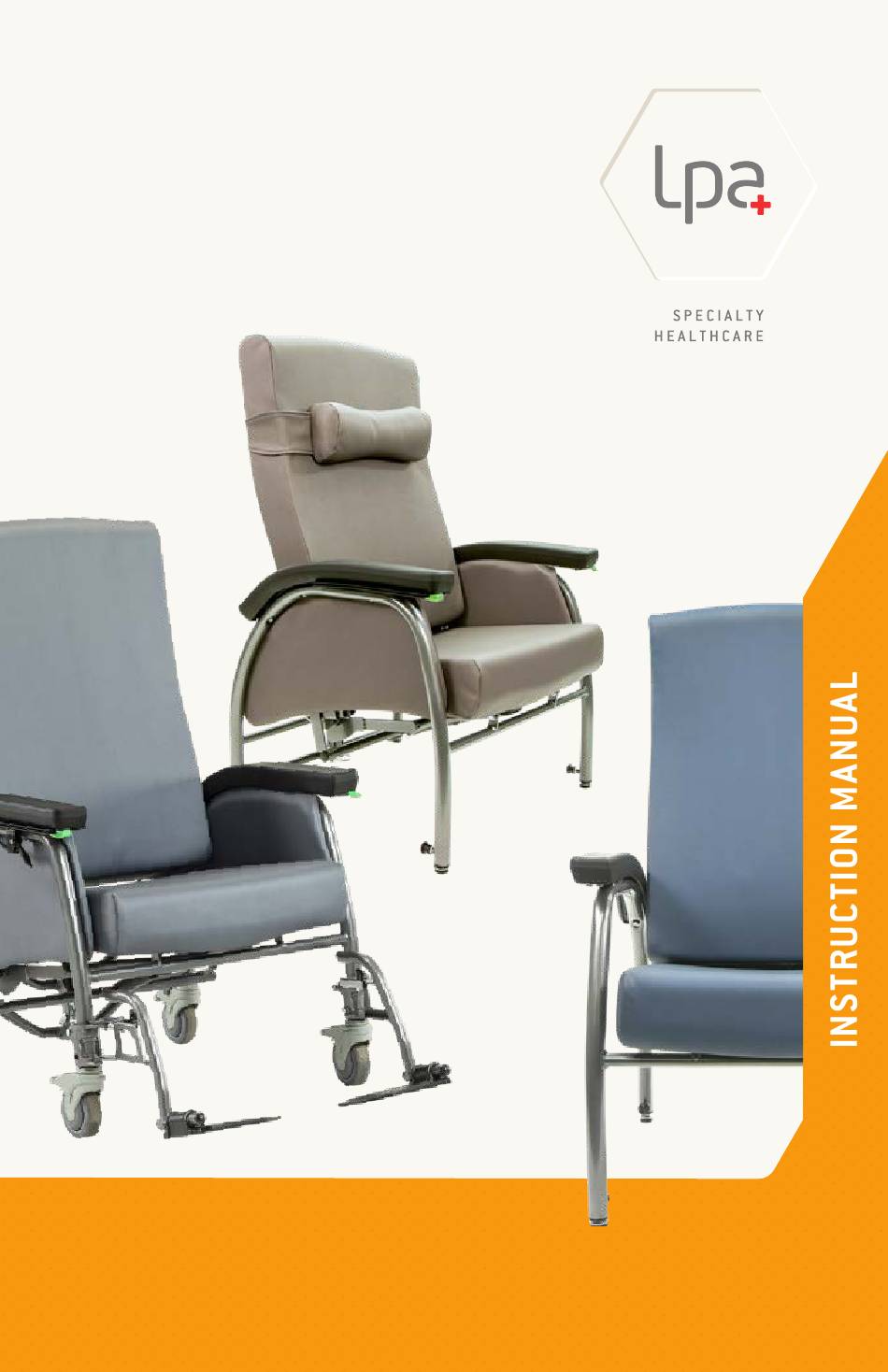

- Page 1 patient room chair Versatile Nomad & Z series FOCUSED ON WHAT MATTERS VERSATILE Z-25 NOMAD Z-55 VERSATILE Z-15 lpamedical.com 2527 Dalton avenue, Quebec (Qc) G1P 3S6 CANADA T 418-681-1313 1-800-663-4863 F 418-681-4488...
-
Page 2: A Word Of Thanks
LPA representative, contact us directly through our website, or use our phone number, listed below. We hope that you enjoy your LPA Medical chair and we thank you for your business. Bryan Welch President LPA Medical inc. -
Page 3: Table Of Contents
TABLE OF CONTENT A Word of Thanks Replacement Parts Availability Policy General Information Definitions Safety Measures Applications Inspection Before Use Risk Prevention Improper Uses Cleaning Maintenance Adjustment and Operating Instructions Seat-to-Floor Height Elastic Backrest Bands Backrest Cushion Backrest Cushion Seat Cushion Tilt –... -
Page 4: Replacement Parts Availability Policy
LPA products are not designed to be pressure-washed or washed in automatic wheelchair washers. LPA products are not designed to be used outdoors or to be used in the shower. -
Page 5: Definitions
Before using the chair, caregivers must have received adequate training from an LPA Medical representative or a trained third party. This instruction manual will be used as a reference for continuing education. It is strongly recommended to appoint a caregiver responsible for training and maintaining an up-to-date list of those who have received training. -
Page 6: Applications
In addition, LPA chairs are not designed for outdoor use. The Versatile chair must be used with accessories specifically designed for it by LPA Medical Inc. It must be used in accordance with recognized health and safety practices. INSPECTION BEFORE USE The chair can be shipped fully assembled or partially assembled. -
Page 7: Improper Uses
The chair should not be pressure-washed or placed inside a washing machine. These practices may cause the chair components to rust internally, as well as deteriorate the adjustment components, thus voiding the LPA chair warranty. MAINTENANCE As long as the recommendations for use and cleaning are followed, the Versatile chair does not require preventive maintenance. -
Page 8: Adjustment And Operating Instructions
ADJUSTMENT AND OPERATING INSTRUCTIONS SEAT-TO-FLOOR HEIGHT 1. Determine if the seat should be raised or lowered. 2. When the chair is unoccupied, lay it on its side, unlock the spring pull by turning the knob counterclockwise (about 2 turns), then pull. 3. -
Page 9: Elastic Backrest Bands
ELASTIC BACKREST BANDS When the backrest with zipper option is chosen 1. Open the zipper (upwards) behind the backrest and open the flaps. 2. Position the elastic bands as desired. 3. Close the zipper. -
Page 10: Backrest Cushion
BACKREST CUSHION When the backrest with zipper option is chosen 1. Open the zipper (upwards) behind the backrest and open the flaps. 2. Unhook the two black plastic J-moldings from the bottom slat of the backrest frame and push them forward. 3. -
Page 11: Backrest Cushion
BACKREST CUSHION When the backrest without zipper option is chosen 1. Roll up the bottom edge of the backrest cushion in the back until you see the two black plastic J-moldings. 2. Unhook the two J-moldings from the bottom slat of the backrest frame and push them forward. -
Page 12: Seat Cushion
SEAT CUSHION 1. Unhook the velcro straps found under the seat at the front and back of the chair. 2. Remove the seat cushion. -
Page 13: Tilt - Model
TILT – MODEL Z-25 WARNING: THE CHAIR MUST BE UNOCCUPIED WHEN MAKING THIS ADJUSTMENT. The tilt angle (available on the Z-25 model only) can be adjusted in two ways. 1. Lay the chair on its side to adjust the rear telescopic support. Unlock the spring pull by turning the knob counterclockwise until it won’t turn anymore (about 1 ½... -
Page 14: Seat Tilt - Option Z-C2-A
SEAT TILT – OPTION Z-C2-A The Z-C2-A option enables seat tilt adjustment to meet the occupant’s needs. Depending on the positioning of the gas spring on the base’s multi-hole plate, you can get: A. Significant assistance when getting up. B. Slight assistance when getting up. C. -
Page 15: Seat Depth - Options Z-C3-A And Z-C4-A
SEAT DEPTH – OPTIONS Z-C3-A and Z-C4-A WARNING: THE CHAIR MUST BE UNOCCUPIED WHEN MAKING THIS ADJUSTMENT. The seat depth can be adjusted by moving the backrest forward or backward. 1. Locate the quick-release levers behind the backrest, under the seat. Push the levers down to loosen them. -
Page 16: Backrest Angle - Option Z-C3-A
BACKREST ANGLE – OPTION Z-C3-A WARNING: THE CHAIR MUST BE UNOCCUPIED WHEN MAKING THIS ADJUSTMENT. The backrest angle adjustment is done with a 4-position telescopic support located under the seat. 1. Lay the chair on its side. Unlock the spring pull by turning the knob counterclockwise until it won’t turn any further, then pull while holding the backrest with one hand. -
Page 17: Backrest Tilt - Option Z-C4-A
BACKREST TILT – OPTION Z-C4-A 1. With the Z-C4-A option, you can adjust the backrest tilt via a gas spring located under the seat. The backrest tilt can be adjusted by the occupant or by the caregiver. 2. Pull on the activator lever, adjust the backrest tilt, then release the lever. -
Page 18: Serial Number Location
SERIAL NUMBER LOCATION Each LPA Medical Inc. chair is identified by a serial number. Always provide your LPA chair’s serial number when ordering replacement parts. The serial number can be found on the label affixed under the back of the seat. -
Page 19: Options And Accessories
OPTIONS AND ACCESSORIES Code Description AE-02 Universal drainage bag holder Seat height adjustment from 20 ½" to 23 ½" Z-C1A — (52 to 60 cm) Z-C2-A Gas spring-activated seat tilt — Tool-less seat depth adjustment and 4-position Z-C3-A — telescopic backrest tilt Tool-less seat depth adjustment and gas Z-C4-A —... -
Page 20: Additional Ergonomic Recommendations
ADDITIONAL ERGONOMIC RECOMMENDATIONS GETTING UP To get up from the Versatile chair more easily: Tilt the chair forward. • Slide your buttocks to the front of the chair. • Bring your feet under the seat. • Place your hands on the armrests. •... -
Page 21: Terms & Conditions
APPLICABLE TO PRODUCTS PURCHASED AS OF SEPTEMBER 1, 2018 GENERAL LPA Medical inc. reserves the right to modify without notice or obligation the design, specifications and prices of the equipment it manufactures. Shipping is charged at the current price at the time of delivery. -
Page 22: General Warranty
2. Purchase date and invoice number. 3. Description of the problem. * The useful lifespan of an LPA chair is estimated to be 10 years. OUR COMMITMENT LPA Medical inc. agrees to provide replacement parts for a period of 10 years after the date of purchase of the product. -
Page 23: Parts List
* Always specify the color, width, fabric pattern and serial number of the Versatile chair when ordering replacement parts. See page 18 for the location of the serial number. Replacement parts may have slight color differences from those of the original chair. LPA Medical cannot be held responsible for these differences. -
Page 24: Exploded View
VUE ÉCLATÉE EXPLODED VIEW Modèles Z-15-20 et Z-25-20 illustrés ; les versions 24" et 28" pourraient présenter certaines différences. Z-15-20 and Z-25-20 models shown; the 24" and 28" widths may have some differences. Z-15... - Page 25 26 28 Z-25 Z-55...
