(520) 294-3292
• FAX (520) 741-2837
www.iotaengineering.com
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should always be followed, including the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
1.
DO NOT USE OUTDOORS.
2.
Do not mount near gas or electric heaters.
3.
Do not use this equipment for other than its intended use.
4.
The IIS 550 I should be mounted securely and in locations and at heights where it will not readily be sub-
jected to tampering by unauthorized personnel.
5.
The use of accessory equipment and replacement parts not recommended by IOTA Engineering, LLC may
cause an unsafe condition, will void the warranty and result in non-compliance with UL specifications.
6.
The AC voltage rating of this equipment is specified on the product label. Do not connect the IIS 550 I equip-
ment to any other voltage.
7.
Not for use with HID lighting.
Use only the battery part number specified for use with the IIS 550 I. Failure to do so may cause an unsafe
8.
condition, will void warranty, and result in non-compliance with UL specifications.
The IIS 550 I uses a sealed valve regulated lead acid battery. Batteries can be punctured if not handled
9.
properly, therefore use caution when servicing batteries. In the event battery acid comes in contact with
eyes or skin, flush with fresh water and consult a physician immediately.
10.
Install in accordance with the National Electrical Code and local regulations.
11.
Installation and servicing should be performed by qualified personnel.
12.
Electricians and end-users need to ensure product system compatibility before final installation.
INSTRUCTION MANUAL
SAVE THESE INSTRUCTIONS

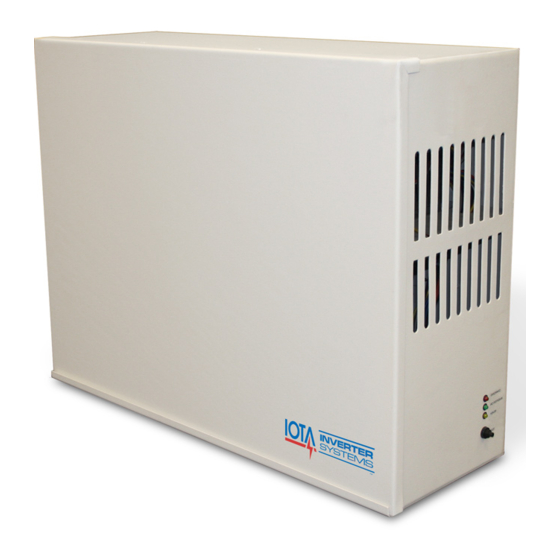

IIS 550 I
550W UNIT INVERTER EQUIPMENT
RECHARGEABLE VALVE-REGULATED
THIS UNIT CONTAINS A
LEAD ACID BATTERY. PLEASE
RECYCLE OR DISPOSE OF
PROPERLY.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for IOTA IIS 550 I
Summary of Contents for IOTA IIS 550 I
- Page 1 Not for use with HID lighting. Use only the battery part number specified for use with the IIS 550 I. Failure to do so may cause an unsafe condition, will void warranty, and result in non-compliance with UL specifications.
- Page 2 1) Remove the front cover of the IIS 550 I by removing the two (2) screws located at the top of cover. 2) Knock out the keyhole slots at the rear of the unit and use for mounting the IIS 550 I securely to the wall. There is an additional round hole for a #10 screw in the cabinet.
- Page 3 Battery Torque Ratings: initial torque is 65 in/lbs, annual is 52 in/lbs. B. Install the battery into the IIS 550 I with the terminal posts facing toward the front of the unit. NOTE: The IIS 550 I battery is heavy. To avoid injury, exercise caution when handling the battery.
- Page 4 Operation Normal Mode - AC power is present and operates the fixtures as intended. The IIS 550 I is in the standby charging mode. The Ready (Yellow) Indicator will be lit providing a visual indication that the unit is in Standby Mode.
