P.O. BOX 11846 TUCSON, AZ 85734
(520) 294-3292
• FAX (520) 741-2837
www.iotaengineering.com
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should always be followed, including the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
DO NOT USE OUTDOORS.
1.
2.
Do not mount near gas or electric heaters.
3.
Do not use this equipment for other than its intended use.
The IIS-125 should be mounted securely and in locations and at heights where it will not readily be subject-
4.
ed to tampering by unauthorized personnel.
The IIS-125 is not for use in air supply/air return ceilings.
5.
6.
The use of accessory equipment and replacement parts not recommended by IOTA Engineering, LLC may
cause an unsafe condition and void the warranty.
7.
The AC voltage rating of this equipment is specified on the product label. Do not connect the
IIS-125 equipment to any other voltage.
The IIS-125 uses sealed valve regulated lead acid batteries. Batteries can be punctured if not handled prop-
8.
erly, therefore use caution when servicing batteries. In the event battery acid comes in contact with eyes or
skin, flush with fresh water and consult a physician immediately.
9.
Install in accordance with the National Electrical Code and local regulations.
10.
Installation and servicing should be performed by qualified personnel.
11.
Electricians and end-users need to ensure product system compatibility before final installation.
INSTRUCTION MANUAL
SAVE THESE INSTRUCTIONS

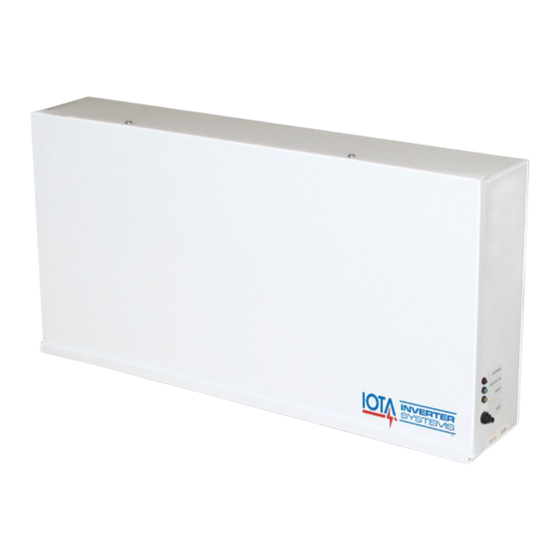

IIS-125
125W UNIT INVERTER EQUIPMENT
THIS UNIT CONTAINS A
RECHARGEABLE VALVE-REGULATED
LEAD ACID BATTERY. PLEASE
RECYCLE OR DISPOSE OF
PROPERLY.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for IOTA IIS-125
Summary of Contents for IOTA IIS-125
- Page 1 Do not mount near gas or electric heaters. Do not use this equipment for other than its intended use. The IIS-125 should be mounted securely and in locations and at heights where it will not readily be subject- ed to tampering by unauthorized personnel.
- Page 2 12″ of exposed leads for wiring in the unit. 3) Knock out the (2) keyhole slots at the rear of the unit and mount the IIS-125-SM securely to the wall. The IIS-125 must be mounted securely. The keyhole slots are spaced to allow mounting to the wall’s unistrut or studs.
- Page 3 Violet, and 277V is Yellow. All remote circuitry is to be wired in accordance with Article 700 of the National Electric Code. Do not exceed the total rating of the IIS-125. When making connections to the IIS-125, DO NOT connect the Input Neutral (WHITE) to the Output Neutral (GRAY).
- Page 4 OPERATION Normal Mode - AC power is present and operates the fixtures as intended. The IIS-125 is in the standby charging mode. The Ready (Yellow) Indicator and Charging (Red) Indicator will be lit providing a visual indication that the unit is charging.
