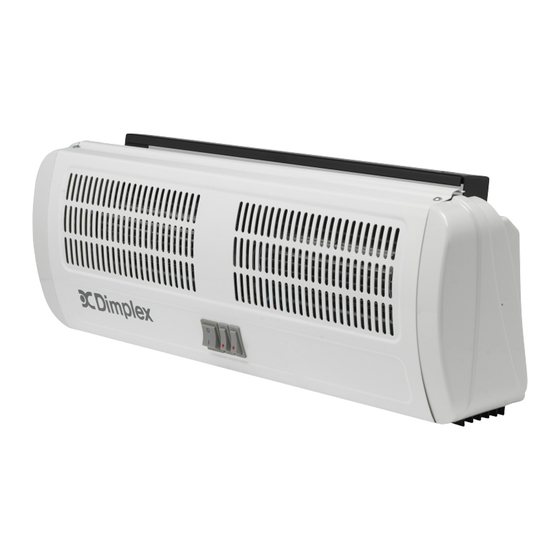

Air Curtain
Model AC6
IMPORTANT
These instructions should be read and carefully retained by the user.
The installation of this appliance should be carried out by a competent electrician and be in
accordance with the current IEE wiring regulations. Tools required are an electrical screwdriver with a
3mm wide blade, a No 2 posidriver, a 7mm AF open ended or box spanner, an 8mm open ended
spanner.
Special instructions on Fitting the heater to a wall or ceiling:-
Solid brick or concrete walls must be drilled and plugged with Rawlplug No 10 size FIBRE inserts.
The plug must be located in the solid part of the wall, not just in the plaster layer.
For panelled internal walls or ceilings, it is best to locate the studding, position the heater fixing
bracket accordingly and use No 10 size wood screws. If it is not possible to locate the studding, use
type M5 Rawlplug INTERSETS, making the 1Omm holes with a drill rather than a bradawl or a
screwdriver.
DO NOT COVER OR OBSTRUCT the air inlet or outlet grille.

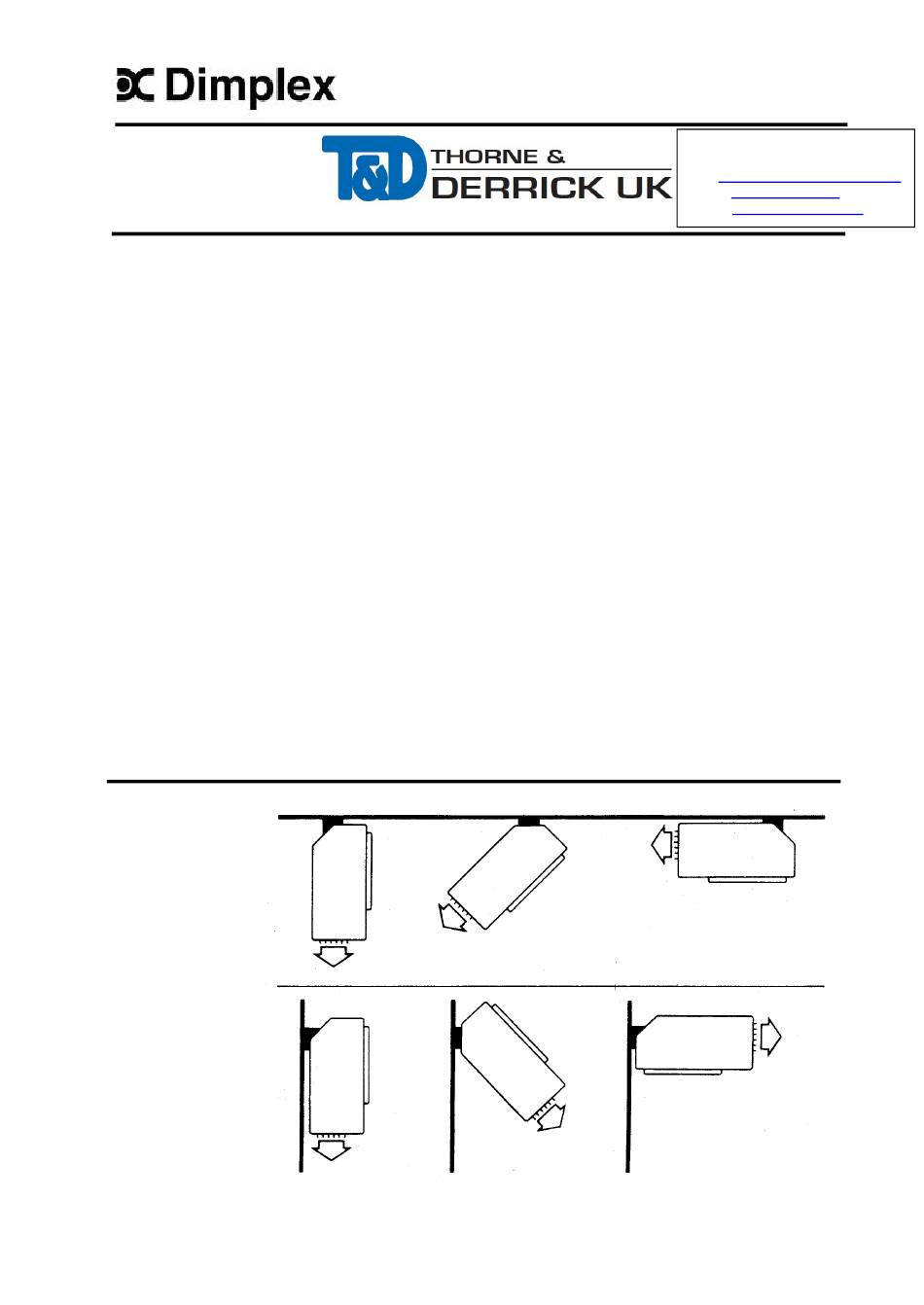

Fixing Positions
Ceiling
mounting
Wall
mounting
Heaters may be mounted end to end for wide doorways
Installation and Operating Instructions
Tel: +44 (0)191 490 1547
Fax: +44 (0)191 477 5371
Email:
northernsales@thorneandderrick.co.uk
Website:
www.heattracing.co.uk
08/17132/ 0
www.thorneanderrick.co.uk

Advertisement

loading
Need help?

Need help?

Do you have a question about the THORNE & DERRICK AC6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Dimplex THORNE & DERRICK AC6

  • Page 1 Installation and Operating Instructions Tel: +44 (0)191 490 1547 Air Curtain Fax: +44 (0)191 477 5371 Email: northernsales@thorneandderrick.co.uk Model AC6 Website: www.heattracing.co.uk 08/17132/ 0 www.thorneanderrick.co.uk IMPORTANT These instructions should be read and carefully retained by the user. The installation of this appliance should be carried out by a competent electrician and be in accordance with the current IEE wiring regulations.
  • Page 2 Installation Remove front louvred panel by removing three screws on top flange and one below centre of louvre panel. Remove the mounting bracket and mark off the screw positions on the wall or ceiling. Fix the bracket in position by making the necessary wall fixings as described under the heading "...
  • Page 3 AC6 Heater Circuit Diagram 1 Wiring the Remote Control Switch Circuit Diagram 2 Operation Switch on electricity supply to the heater. Switching the switch marked " " energises blower and illuminates neon indicator. " and switches marked "E" and " D " as Select "...
  • Page 4 After Sales Service Your Dimplex Air Curtain is guaranteed for one year from date of purchase. We undertake to exchange or repair free of charge within this period any part found to be defective due to a manufacturing fault.
