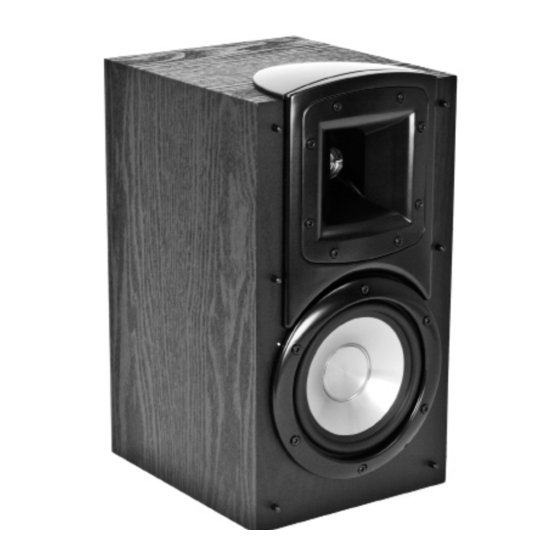

B-20
BOOKSHELF SPEAKER WITH CONTEMPORARY FINISH
Black ash vinyl to complement any modern décor
®
TRACTRIX
HORN
Proprietary technology provides a unique combination of precision,
clarity and effortless power
ALUMINUM DIAPHRAGM COMPRESSION DRIVER (TWEETER)
Produces crystal-clear high frequencies
IMG WOOFER
Creates tight musical bass
REAR-FIRING PORT
Provides exceptional and extensive bass performance
KLIPSCH BELIEVES FOUR PRINCIPLES TO BE THE FOUNDATION
FOR GREAT SOUND:
•
HIGH EFFICIENCY: Every Klipsch speaker is horn-loaded
because the horn shape is perfect for accurate and dynamic
sound transmission. Greater efficiency means lower
distortion which means maximum realism.
DYNAMIC RANGE: Klipsch horn technology reproduces the
•
softest sounds with remarkable clarity and detail and the
loudest sounds with no harshness or distortion. That's what's
known as the best of both worlds.
•
CONTROLLED DIRECTIVITY: Unique Klipsch horn technology
means speakers that more accurately direct sound. The
result is a more lifelike soundstage and way more "Whoa –
Did you hear that?"
•
FLAT FREQUENCY RESPONSE: We believe in delivering
exactly the sound artists intend. Hence, Klipsch's stunningly
accurate speakers – with no unnatural highs, mids or lows.
S P E C I F I C A T I O N S
Frequency Response
62Hz-23KHz ± 3dB
Power Handling
85W RMS / 340W Peak
Sensitivity
92.5dB @ 2.83V / 1m
Nominal Impedance
8 ohms compatible
Crossover Frequency
2250Hz
.75" (1.9cm) Aluminum diaphragm compression driver
High Frequency Drivers
mated to 90° x 60° square Tractrix® Horn
Low Frequency Drivers
5.25" (13.3cm), magnetically shielded IMG woofer
Inputs
Single binding posts
Enclosure Type
Bass-reflex via rear-firing port
Height
12.5" (31.8cm)
Width
7" (17.8cm)
Depth
8" (20.3cm)
Weight
11lbs (5kg)
Finish
Black Ash vinyl
Built From
2010
3502 Woodview Trace Indianapolis, IN 46268 | klipsch.com
All specifications are subject to change without notice. ©2010 Klipsch Group, Inc.
