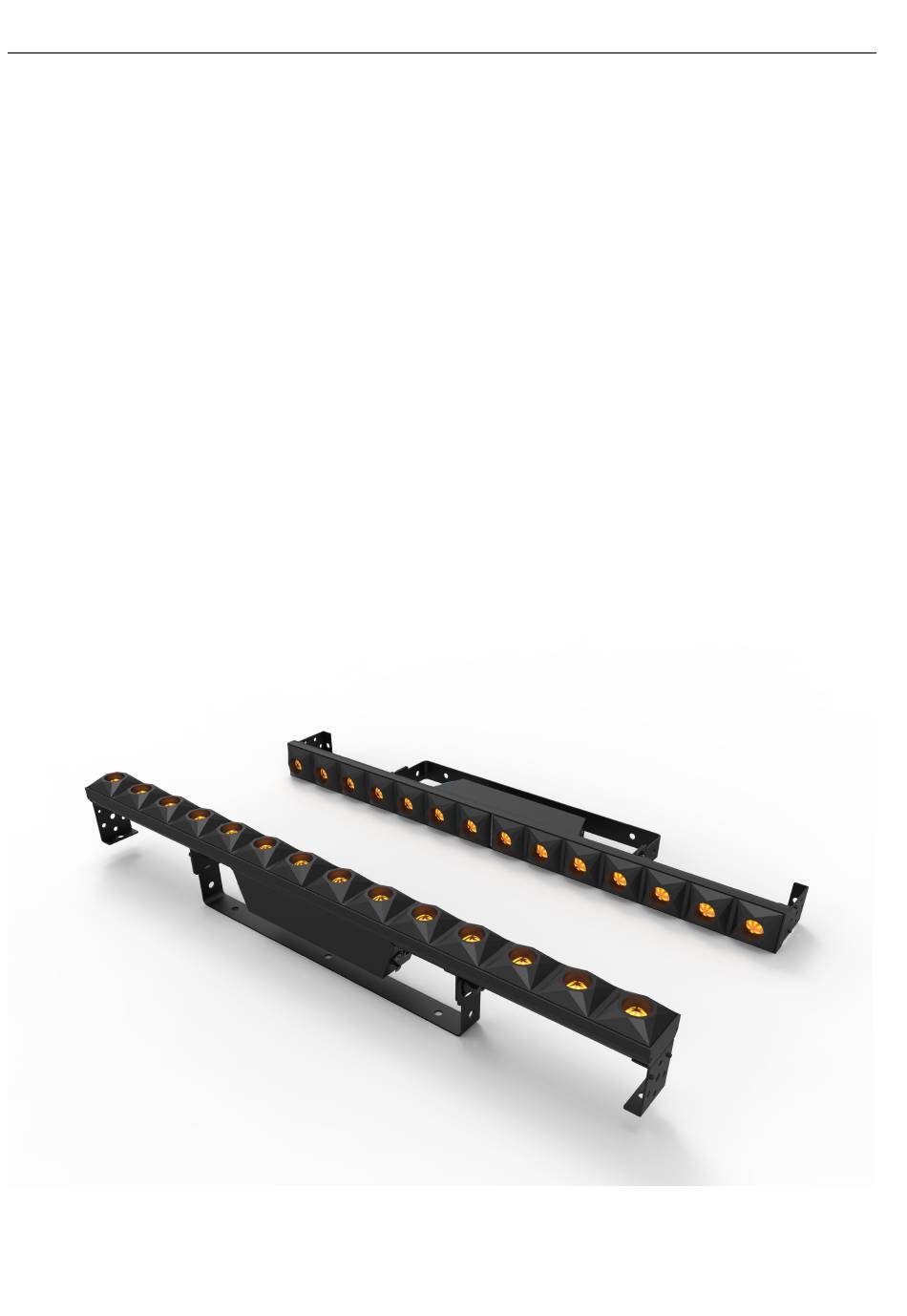

- Page 1 ED MATRIX BEAM 14 User Manual...
- Page 2 CONTNETS 1、Matters needing attention 2、Installation guide 3、Accessories 4、Specifications 5、Menu map 6、Operation 7、Maintenance...
- Page 3 1、Matters needing attention Please read this instruction carefully before installation. ● Check out all accessories after getting the product. ● Inspect the device carefully before installation in case of loose for transportation maintenance ● regularly. For guarantee the life of product , don’t put it on the wet place and also not use it in the place over 40 ●...
- Page 4 Program 1—30 Auto Mode Speed 1—9 Slave Mode YES/NO MENU Sound Mode Sensitivity 0—255 SoftWare Version 14 LEDS Beam1.0 DMX Address 1—512 DMX CH Mode 1CH/4CH/7CH/14CH 6、Operation Keys diagram 6.1 Auto running function 1、Select “Auto Mode ” from root directory menu . 2、Select one program .
- Page 5 6.3 Sound function 1、Select “Auto Mode ” from root directory menu . 2、Select one program . 3、Select “Sound Mode ” from root directory menu . 4、Set up the sound sensitivity. There is no function 0 to 15. Sensitivity gradually increases from 16 to 255.
- Page 6 Master dimmer No function Strobe Strobe from slow to fast No function White White from 1—100% No function Program 1 Program 2 Program 3 Program 4 Program 5 Program 6 Program 7 Program group 1 Program 8 Program 9 Program 10 Program 11 Program 12 Program 13...
- Page 7 14CH DMX Table Channel Function From Feature No function LED1 Brightness 1—100% No function LED2 Brightness 1—100% No function LED3 Brightness 1—100% No function LED4 Brightness 1—100% No function LED5 Brightness 1—100% No function LED6 Brightness 1—100% No function LED7 Brightness 1—100% No function LED8...
