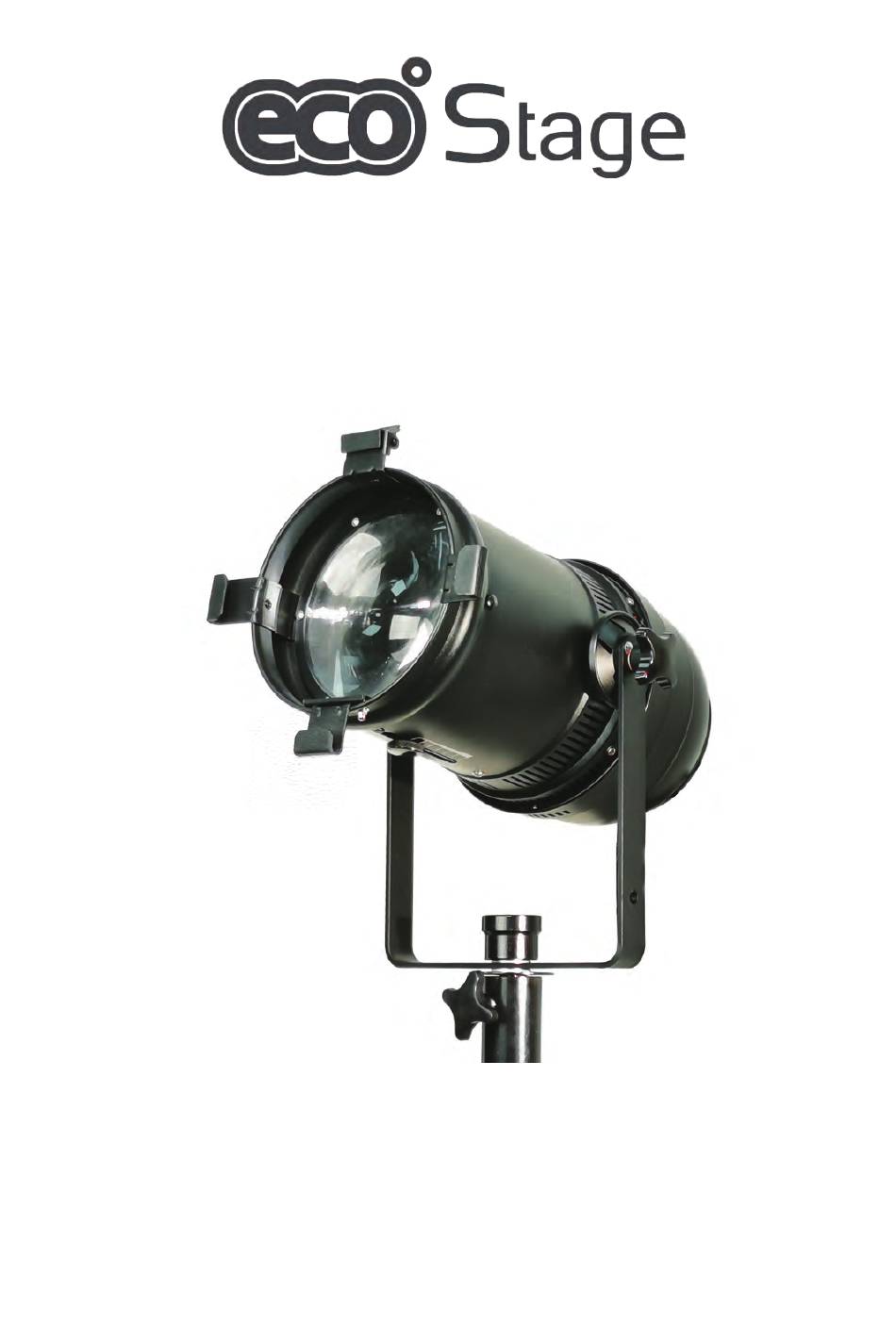

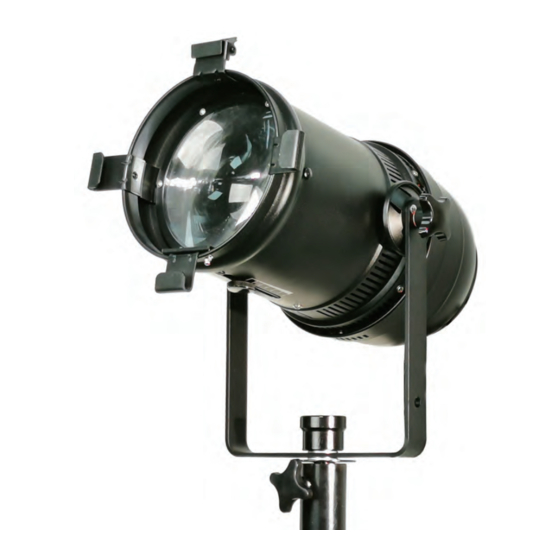

- Page 1 User Manual LED ZOOM PAR64 COB 200W WW+CW 2IN1 IP...
-
Page 2: Table Of Contents
LED ZOOM PAR64 COB 200W WW+CW 2IN1 IPX4 Table of contents 1. Safety instructions..............................3 1.1. FOR SAFE AND EFFICIENT OPERATION....................3 2. Technical Information.............................4 3. Menu structure...............................4 4. DMX Table................................8 4.1. DMX Mode 1 (1 Channel)..........................8 4.2. DMX Mode 2 (2 Channel)..........................8 4.3. -
Page 3: Safety Instructions
LED ZOOM PAR64 COB 200W WW+CW 2IN1 IPX4 1. Safety instructions This device is suitable for indoor use only. All modifications to the device will void the warranty. Repairs are to carry out by skilled personnel only. Use only fuses of the same type and original parts as spare parts. -
Page 4: Technical Information
LED ZOOM PAR64 COB 200W WW+CW 2IN1 IPX4 Important: Damages caused by the disregard of this user manual are not subject to warranty. The dealer will not accept liability for any resulting defects or problems. Make sure the electrical connection is carried out by qualified personnel. - Page 5 LED ZOOM PAR64 COB 200W WW+CW 2IN1 IPX4 DMX AMOUNT SETTING “C”: Function Code “1”: Channel amounts DMX ADDRESS SETTING “D”: Function Code “001”: DMX Address SINGLE MODE SETTING, work only on the situation of “F”: Function Code “000”: Function number Temperature setting “C”: Function Code...
- Page 6 LED ZOOM PAR64 COB 200W WW+CW 2IN1 IPX4 SLAVE MODE The machine only accept the signal that send from host-machine, it won’t accept the signal from the console. WHILE IN MASTER-SLAVE MODE, ONLY ONE HOST MACHINE CAN BE EXISTED, IF NOT, IT MAY CAUSE SIGNAL CONFLECTS.
- Page 7 LED ZOOM PAR64 COB 200W WW+CW 2IN1 IPX4 SINGLE WHITE F010~F019 strobe, speed low to high FADE IN/OUT: Adjust the speed from F020(slow)～F029(fast). SOUND ACTIVE MODE: Color jump and Strobe. Adjust the strobe speed from F030(slow)～F039(fast). Shut down the light in 5 seconds mute.
-
Page 8: Dmx Table
LED ZOOM PAR64 COB 200W WW+CW 2IN1 IPX4 4. DMX Table 4.1. DMX Mode 1 (1 Channel) DMX Channel DMX Value Function 1. White Dimming 1~255 Adjust LEDs dimmer low to high 4.2. DMX Mode 2 (2 Channel) DMX Value... -
Page 9: Dmx Mode 5 (5 Channel)
LED ZOOM PAR64 COB 200W WW+CW 2IN1 IPX4 4.5. DMX Mode 5 (5 Channel) DMX Value Function DMX Channel 1. White Dimming 1~255 Adjust LEDs dimmer low to high 2. WW Dimming 1~255 Adjust LEDs dimmer low to high 3. CW Dimming... -
Page 10: Dmx Mode 7 (7 Channel)
LED ZOOM PAR64 COB 200W WW+CW 2IN1 IPX4 4.7. DMX Mode 7 (7 Channel) DMX Value Function DMX Channel Turn on the light and White Dimming and 1~255 1. White Dimming color is controlled by CH2, 3, 4, 5 2. WW Dimming...
