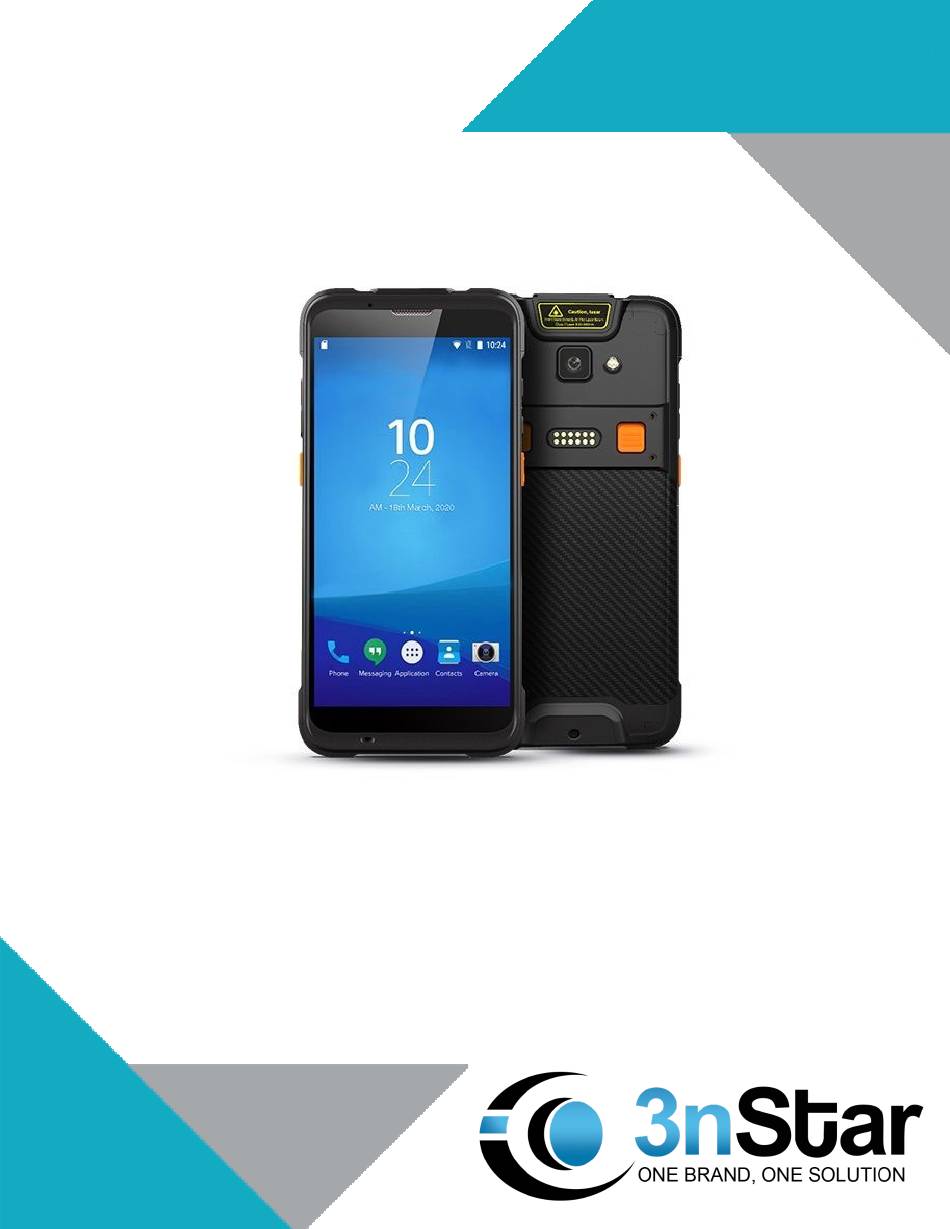

- Page 1 Android 11 Data Collector USER MANUAL Nustar 5sx...
-
Page 2: Table Of Contents
Table of Contents Statement ..............................1 Chapter 1 Product Intro ..........................2 1.1 Intro ..............................2 1.2 Precaution before using battery ......................2 1.3 Notes ..............................3 Chapter 2 Installation Instructions........................ 4 2.1 Appearance ............................4 2.2 Install Micro SD and SIM cards ......................5 2.3 Battery Charge ............................ -
Page 3: Statement
3nStar. No right to copy a licensed program in whole or in part is granted, except as permitted under copyright law. The user shall not modify, merge, or incorporate any form or portion of a licensed program with other program material, create a derivative work from a licensed program, or use a licensed program in a network without written permission from 3nStar. -
Page 4: Chapter 1 Product Intro
Chapter 1 Product Intro 1.1 Intro 3nStar Nustar 5sx is a newly developed rugged handheld computer with large screen and strong extensibility. Running on AndroidTM 11 OS, it is equipped with a Qualcomm Octa-core processor for high-speed processing. With 5.5-inch high-definition display, it is integrated with barcode scanning, NFC, and other functions. -
Page 5: Notes
1.3 Notes 1. Using the incorrect battery type causes risk of explosion. Please dispose the used battery according to instructions. 2. Due to the used enclosure material, the product should only be connected to a USB Interface of version 2.0 or higher. Connection to the power USB is prohibited. 3. -
Page 6: Chapter 2 Installation Instructions
Chapter 2 Installation Instructions 2.1 Appearance Nustar 5sx back and front appearances are showing as follows: Button Description 1. Power Locate on right side, press to ON/OFF device. Locate on right side, its function can be defined by Side 2. PTT key software. -
Page 7: Install Micro Sd And Sim Cards
2.2 Install Micro SD and SIM cards The card sockets go as follow: 2.3 Battery Charge By using the USB Type-C contact, the original adaptor should be used for charging the device. Make sure not to use other adaptors to charge the device. Note: 1. -
Page 8: Buttons And Function Area Display
2.4 Buttons and function area display Nustar 5sx has 6 side buttons, 2D scanning module locates on the top. HD camera and flashlight locate at rear. NFC identification surrounds the camera. -
Page 9: Chapter 3 Call Function
Chapter 3 Call Function 3.1 Calling Numbers 1. Click the icon. 2. Click number key to input phone numbers. 3. Click the icon to call. 4. Click the icon to end call. 3.2 Contacts 1. Click contacts to open contacts list. 2. -
Page 10: Chapter 4 Barcode Reader
Chapter 4 Barcode Reader 1. In App Center, open the 2D barcode scan test. 2. Press the “SCAN” button or click the scan key to start scanning. The parameter “Auto interval” can be adjusted. Caution: Please scan codes in the correct way otherwise the scanning will be failed. 2D code: Max. -
Page 11: Chapter 5 Rfid Reader
Chapter 5 RFID Reader 5.1 NFC Click App Center, open “NFC” to read and write tag information. -
Page 12: Chapter 6 Other Functions
Chapter 6 Other Functions 6.1 PING tool 1. Open “PING” in App Center. 2. Setup PING parameter and select external/internal address. 6.2 Bluetooth Open “BT Printer” in App Center. In the list of detected devices, click the device that you want to pair. Select printer and click “Print”... -
Page 13: Gps
6.3 GPS 1. Click “GPS” in App Center to open the GPS test. 2. Setup GPS parameters to access GPS information. 6.4 Volume Setup 1. Click “Volume” in App Center. 2. Setup volume by requirements. -
Page 14: Sensor
6.5 Sensor 1. Click “Sensor” in App Center. 2. Setup the sensor by requirements. 6.6 Keyboard 1. Click “Keyboard” in App Center. 2. Setup and test the main value of the device. -
Page 15: Otg Function
6.7 OTG Function Nustar 5sx Cradle OTG Connection: 1. Install Nustar 5sx rubber boot. 2. Pay attention to the installing direction of DC0509-BS2 Type C & Pogo Pin. 3. Install the device onto cradle and select OTG mode on the pop-up menu to switch on OTG. -
Page 16: Keyboard Emulator
6.9 Keyboard Emulator The keyboard emulator can be used in multiple operating background and output formats directly. It includes Prefix/Suffix/Enter/TAB. Please check the keyboard emulator manual for more details. Note: For each model, keycode of side button would be different, so user needs to use the keyboard in App Center to check keycode and bind in Barcode2D. -
Page 17: Chapter 7 Device Characteristic
Chapter 7 Device Characteristic Physical Characteristics Size 160x76x15.5mm / 6.3*2.99*0.61in Weight ＜287g/10.12oz(with battery) Display 5.5-inch display, IPS LTPS 1440*720 Touch Panel Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported Battery 4420mAh(type)/4300mAh(min) removable main battery, 5200 mAh optional pistol battery, support QC3.0 and RTC Standby: up to 490 hours (only main battery;... - Page 18 User Environment Operating temp. -20℃ to 50℃ Storage Temp. 40℃ to 70℃ Humidity 5%RH - 95%RH noncondensing Sealing IP65, IEC sealing standard Drop specification Multiple 1.8m/5.91ft drops (at least 20 times) to the concrete across the operating temperature range Multiple 2.4m/7.87ft drops (at least 20 times) to the concrete after installed rubber bumper Communication EU/CH:...
- Page 19 Data Collection Barcode scanning SE4710 RFID NFC 13.56Mhz Developing Environment Software development kit Language Java Develop Eclipse/Android Studio...
