Summary of Contents for 3nStar Nustar 5sx

  • Page 1 Portable Data Collector USER MANUAL Nustar 5sx...
  • Page 2: Table Of Contents

    Contents Contents ......................1 Statement ......................2 Chapter 1: Product Introduction ................. 3 Background ..................3 Precautions before Using the Battery ..........4 Charger ....................5 Chapter 2 Installation instructions ..............6 2.1 Appearance ....................6 2.2 Install Micro SD and SIM cards ..............7 2.3 Battery Charging ..................
  • Page 3: Statement

    The software is provided strictly on an “as-is” basis. All software, including firmware, furnished to the user is on a licensed basis. 3nStar grants to the user a non-transferable and non- exclusive license to use each software or firmware program delivered hereunder (licensed program).
  • Page 4: Chapter 1: Product Introduction

    Chapter 1: Product Introduction 1.1 Background Nustar 5sx is an industrial-grade smart handheld terminal that has been designed and manufactured by 3nStar, Inc. It’s based on Android 9, which runs fast and has a long battery life. To meet the needs of multi-industry applications like logistics express, warehouse inventory, manufacturing, retail, etc.
  • Page 5: Precautions Before Using The Battery

    1.2 Precautions before Using the Battery • Do not leave battery unused for long period of time, no matter if it is in the device or the storage inventory. If the battery has been used for 6 months already, it should be checked for charging ability or it should be disposed of as required.
  • Page 6: Charger

    1.3 Charger The charger output voltage/current is 5V/2A. Notes: Note: Using the incorrect type battery causes risk of explosion. Please dispose the used battery according to instructions. Note: Due to the used enclosure material, the product shall only be connected to a USB 2.0 Interface or higher. The connection to so- called power USB is not to be used.
  • Page 7: Chapter 2 Installation Instructions

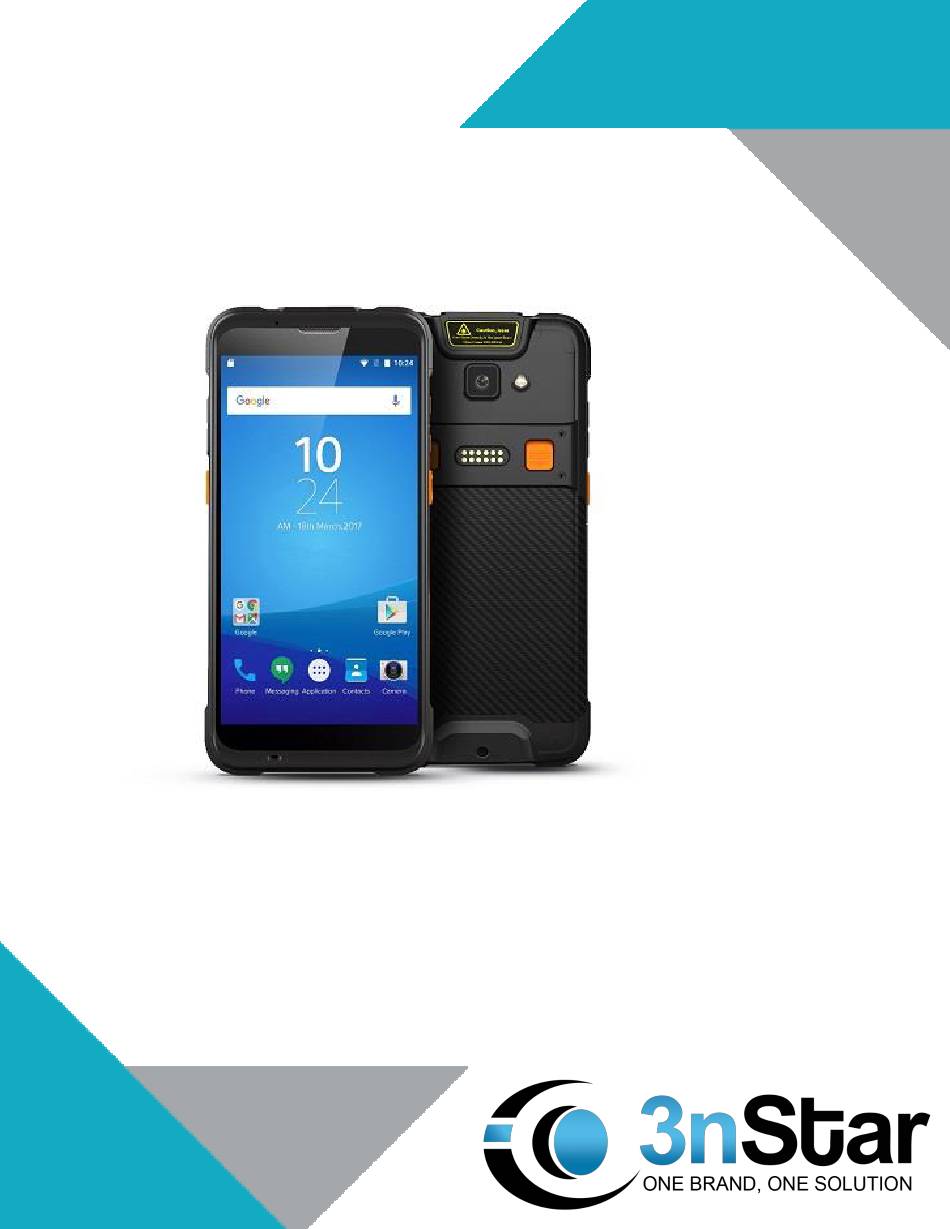

    Note: SAR Max. Value: 0.26W/kg(10g) for Head; 0.60 W/kg (10g) for body. Chapter 2 Installation instructions 2.1 Appearance Nustar 5sx back and front appearances are showing as follows:...
  • Page 8: Install Micro Sd And Sim Cards

    Buttons instruction Button Description 1. Power Locate on right side, press to ON/OFF device. Side Locate on right side, its function can be defined by software. 2. PTT key button Scanning button located on both sides. There are two scanning 3.SCAN buttons.
  • Page 9: Battery Charging

    Make sure not to use other adaptors to charge the device. 2.4 Buttons and Function Area Display Nustar 5sx has 6 side buttons, and a 2D scanning module located on the top. An HD camera and flashlight located on the back. NFC identification surrounds...
  • Page 10: Chapter 3: Call Function

    Chapter 3: Call Function 3.1 Calling Numbers 1. Click icon 2. Click number key to input phone numbers. 3. Click icon to call. 4. Click icon to end call. 3.2 Contacts 1. Click “contacts” to open the contacts list. 2. Click icon to add new contacts.
  • Page 11: Chapter 4: Barcode Reader-Writer

    Chapter 4: Barcode Reader-Writer 1. In the App Center, click to open the 2D barcode scan test. 2. Press the “SCAN” button or click scan key to start scanning. The parameter “Auto interval” can be adjusted. Caution: Please scan codes in correct orientation otherwise scanning will fail.
  • Page 12 Max. radiant power: 0.6mW Wave length: 655nM IEC 60825-1 (Ed.2.0). 21CFR 1040.10 and 1040.11 standard.
  • Page 13: Chapter 5: Rfid Reader

    Chapter 5: RFID Reader 5.1 NFC Click the App Center, open “NFC” to read and write tag information.
  • Page 14: Chapter 6: Other Functions

    Chapter 6: Other functions 6.1 PING Tool 1. Open “PING” in the App Center. 2. Setup PING parameter and select external/internal address.
  • Page 15: Bluetooth

    6.2 Bluetooth 1. Open “BT Printer” in the App Center. 2. In the list of detected devices, click the device that you want to pair. 3. Select printer and click “Print” to start printing contents.
  • Page 16: Gps

    6.3 GPS 1. Click “GPS” in the App Center to open the GPS test. 2. Setup GPS parameters to access GPS information.
  • Page 17: Volume Setup

    6.4 Volume Setup 1. Click “Volume” in the App Center. 2. Setup volume as needed.
  • Page 18: Sensor

    6.5 Sensor 1. Click “Sensor” in the App Center. 2. Setup the sensor as required.
  • Page 19: Keyboard

    6.6 Keyboard 1. Click “Keyboard” in the App Center. 2. Setup and test the main value of the device.
  • Page 20: Network

    6.7 Network 1. Click “Network” in the App Center. 2. Test WIFI/Mobile signal as required.
  • Page 21: Chapter 7: Device Characteristics

    Chapter 7: Device Characteristics Physical Characteristics Size 160x76x15.5 mm / 6.3*2.99*0.61 in <287g /10.12 oz (with battery) Weight Display 5.45-inch display, IPS LTPS 1440*720 Corning Gorilla Glass, multi-touch panel, gloves Touch panel and wet hands supported 4300mAh removable main battery Standby: over 300 hours Battery Continuous use: over 12 hours (depending on...
  • Page 22 User Environment -20℃ to 50℃ Extremity Operating temp. 40℃ to 70℃ Storage Temp. 5%RH - 95%RH non condensing Humidity IP65, IEC sealing standard Sealing Multiple 1.5m/4.9ft drops (at least 20 times) to the Drop specification concrete across the operating temperature range Communication 2G: 850/900/1800/1900MHz 3G: 850/900/1900/2100MHz...
