RFbeam Microwave V-MD3 User Manual

user manual
V-MD3
digital 3D radar transceiver
Features

Applications

Description

Control Panel

© RFbeam Microwave GmbH | Schuppisstrasse 7 | CH-9016 St. Gallen | www.rfbeam.ch | V-MD3 | user manual
– Easy evaluation of the radar sensor V-MD3 over a GUI
– Easy adjustment of parameters for optimization to customer
applications
– Real-time streaming of all relevant radar processing data
– Data recording and playback including video using a webcam
– Firmware update over boot loader
– Saves time to market and reduces NRE costs
– Getting started with the V-MD3
– Real-time optimisation of the radar parameters
for different applications
– Situation recording including video data
for later analysis in the lab
– Learning about the potential of a V-MD3 sensor

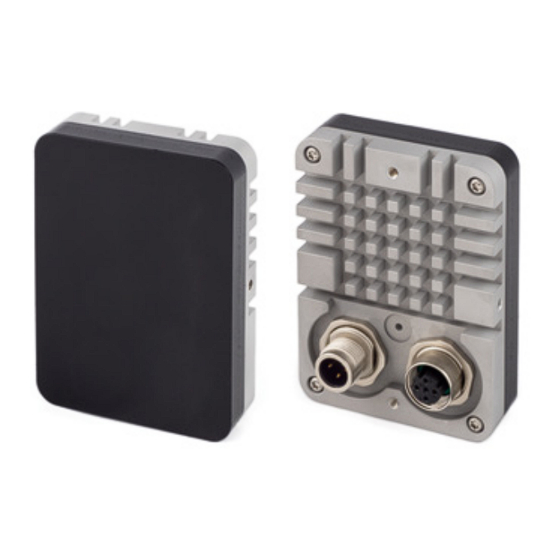

The V-MD3 is a high-end 3D radar transceiver with integrated sig-
nal processing and tracking algorithms. It can measure the speed,
direction, distance and angle (in azimuth and elevation) of moving
and static objects. The digital structure and wide power supply
range make it very easy to use this sensor in any stand-alone or
MCU based application.
The control panel described in this user manual allows a simp-
le and quick evaluation of the sensor with all its parameters. All
settings can be easily adjusted in the control panel and the effects
can be verified in real time. The recording function also offers
the option of subsequently playing back and analysing measure-
ments.
Figure 1: Control panel GUI overview
05 / 2020 – Revision A | Page 1 / 16
