INSTRUCTION MANUAL

FOR

PLOTTER

X-Y

(A3 Size)

Table of Contents

Summary of Contents for Sekonic SPL-450

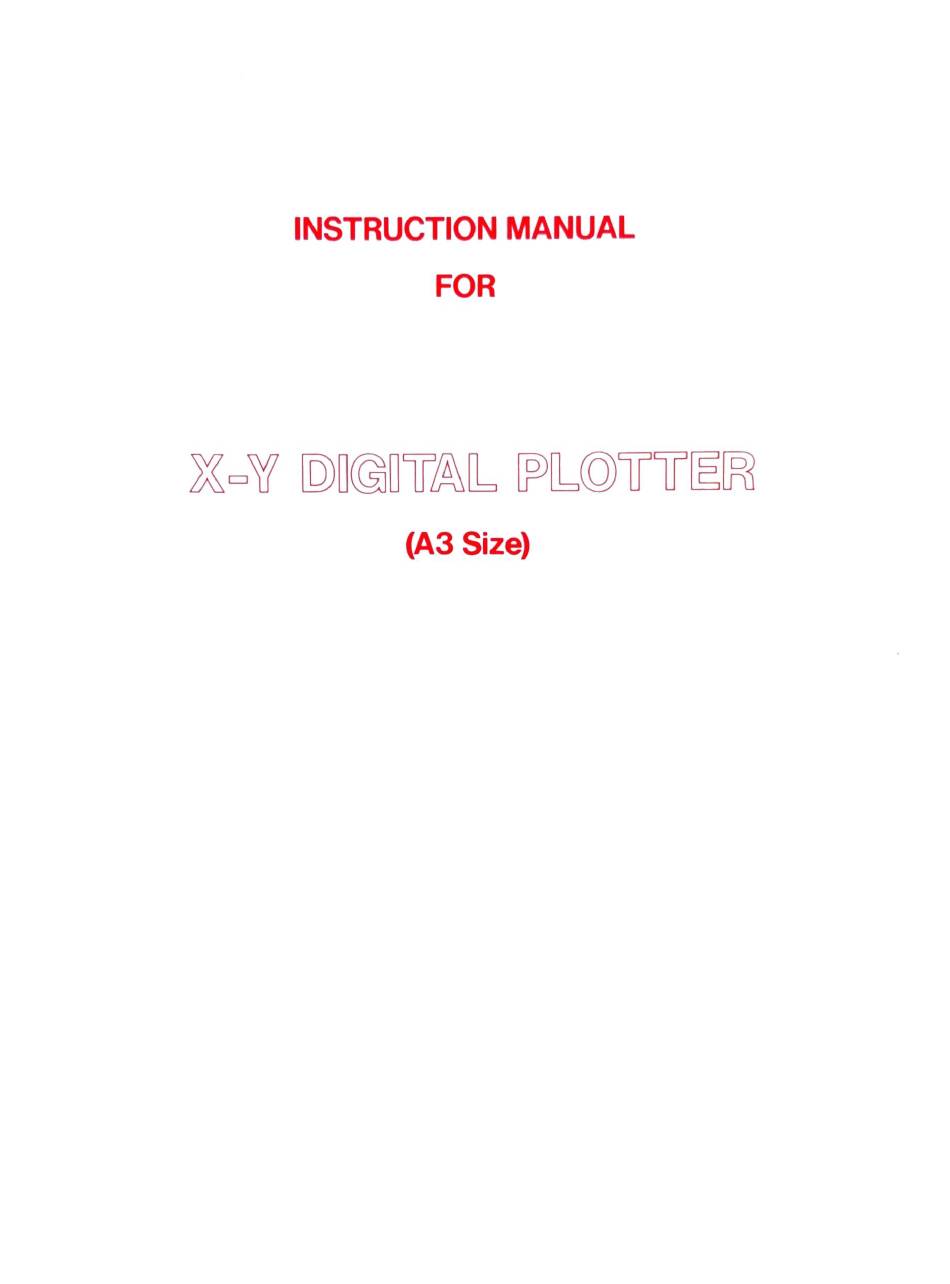

Page 1 INSTRUCTION MANUAL PLOTTER (A3 Size)
Page 2: Table Of Contents
INTRODUCTION Thank you very much for your purchase of our X —Y , plotter. For correct operation,please read the " Instruction Manual ". CONTENTS 1. Standard Accessories 2. Precautions on Operation 3. Names and Functions of Each Part 4. Preparation for plotting Interface 6.
Page 3: Standard Accessories
Standard Accessories Unpack and verify that the following standard accessories are supplied. I pc. 1 X Y plotter (main unit) I pc. Power Cord I set 3 Fiber pen (water type,8colors per set) 1 pc. 4 Magnet I pc. 5 Soft cover 1 copy 6 Instruction manual * Magnet (4) is not furnished to Electrostatic Paper Holding type.
Page 4: Precautions On Operation
Precautions on Operation Observe the following precautions for safe operation. I) Avoid operating or storing the X —Y plotter in a place exposed to direct sunlight or near a device generating heat. 2) Avoid operating the X —Y plotter in a dusty or humid place. 3) Avoid operating the X—Y plotter in a place with extreme mechanical vibration or electrical noise.
Page 5: Names And Functions Of Each Part
Names and Functions of Each Part l) Names of each part (5) Pen arm (8) @ Pen cap (8) (j) Paper holder (Cover) (2) Guide seal (Table) (j) Tray (3) Magnet(standard accessory) (B) Control panel @ Format table (Slide arm) (B) Pen holder Pen No.l (D Dip switch...
Page 6 2) Functions of each part Paper holder This is used to fix the left side of the paper. Guide seal This is used as a reference for positioning the bottom edge of the paper. Magnet A standard accessory,used to fix the right side of the paper. Pen cap operation.
Page 7: Preparation For Plotting
Preparation for Plotting Prepare for plotting according to l,he following procedure. Installation Install the X Y plotter in as flat a place as possible. Paper setting Magnetic Paper Holding type. Raise the paper holder,and insert the left edge of the sheet of paper. The left edge meets the paper guide.
Page 8 Paper size and plotting area ANSI/A,ANSI/B,ISO/A4 and ISO/A3 sizes are usable in this plotter. Use the dip switch on the rear panel for setting the plotting area for each size of paper. Refer to 8) Setting the dip switch. Set each size of paper according to 2) . The plotting area and ziro point position are different for each size of paper.
Page 9 ANSI/ A size paper Origin of coordinates 199. 050 mm Fig.4—4 Coordinate origin and plotting area for ANSI/ A size paper ANSI/ B size paper Origin of coordinates 416. 000 mm Fig.4—5 Coordinate origin and plotting area for ANSI/ B size paper...
Page 10 ISO/A4 size paper 193. 000 mm Origin of coordinates (0, 0) Fig.4—6 Coordinate origin and plotting area for ISO/A4 size paper ISO/A3 size paper Origin of coordinate 404. 000 mm Fig.4—7 Coordinate origin and plotting area for ISO/A3 size paper...
Page 11 Kind of paper Coated paper,fine quality paper, and measuring paper are usable. We recommend coated paper that produces minimal ink blurring. Use an oil pen when using a film sheet for an OH P (Overhead Projector). Pen setting Remove the cap,and insert the pen into the pen arm. Insert the pen point into the pen cap,and insert the flange into the pen arm slit.
Page 12 Power connection and operation Verify that the power switch is—off. -Insert the-powen cable—into the power cord plug,and connect the other end of the power cable to the AC outlet. Connect the interface connector. For each format setting,refer to 5 " Interface "...
Page 13 Description of the control panel The switches and lamps on the control panel and their functions are described. — POWER PAPER — POWER — ALARM — P.HOLD HOLD — ALARM ENTER PENT PEN8 ENTER UP/DOWN PENT PEN8 DOWN PEN6 PEN5 PEN5 PEN6 PEN4...
Page 14 ENTER ENTER KEY • When the "DP "command is received, the ALARM lamp flickers. When the pen is moved to a desired point and the NT E Key is pressed, the ALARM lamp stops flickering and the coordinate value of that point and the pen state are stored in the output buffer of the X —Y plotter.
Page 15 • Pause function. By pressing any of the arrow keys while program is executed, the opera- tion stops temporarily and -the pen returns to the pen—up position. To release the pause mode, press any of the arrow keys again. While the plotter remains in the pause mode, the MANUAL RESET is available.
Page 16 Setting the dip switch Two dip switches are provided on the rear panel. Set them appropriately before turning on the power switch. The SWI determines the communication method of the RS— 232 C interface. The SW2 determines the default value of the character font. The upper side is "...
Page 17 Set the baud rate. Select whether the stop bit is I or 2 bits. Select whether or not the parity bit exists. No. 5 Select even or odd partity when the parity bit exists(No.5) No. 6 Unused Used in combination with switch No.9 for setting the paper size No.
Page 18: Interface
Interface Interface switching Two interfaces are provided, an 8 —bit parallel Centronics interface and RS—232C interface. These interfaces are automatically switched. The in terface that receives a signal first after the power is turned on is selected. 8—bit parallel interface (conformable to Centronics) O) Control signal ST B ERROR...
Page 19 Input connector Cable side : DDK 57 — 30360 or the equivalent Main unit side : DDK 57—40360 or the equivalent (b) Connector signals and functions Signal Direction Function Strobe pulse, Pulse width of 0. 5/LS is required. Input Usually "HIGH" in input, and takes in the data at the trainling edge.
Page 20 RS-232C Interface (D Synchronizing system Start—stop system @ Communication speed(baud rate) 150, 300, 600, 1200, 2400, 4800, 9600 ($) Communication format Start bit: I bit Data:8—bit or 7 —bit Parity:Even,odd,or no parity Stop bit: 1 or 2 bits @ Buffer memory size 1024 bytes/5120 bytes (Convertible by Dip Switch).
Page 21 (t) Connector signals and functions Signal Signal name Function Direction Frame ground Grounding for safety Serial transmission data Transmission data TXT) Output sends an X—parameter Receiving data Serial reseiving data Input Request to send Usually ON (+potential) Ou tput ermits transmission rom Clear to send Input the lotter...
Page 22: Example With Computer Communication (Rs - 232C)
• ENQ/ACK handshake Handshake is executed by the computer inquiring to the plotter about buffer space required for data transmission. • Software checking handshake Handshake is executed by the computer inquiring to the plotter about the resindual buffer capacity. @ Setting the Communication format Use the dip switch (S WI) on the rear panel to set the data communication condition, baud rate, stop bit, and parity of RS 232C.
Page 23 CABLE B..•lnterface Cable Model : T-52422 or Standard IBM 9 -pin to 25 pin cable Computer Side Plotter Side ( Connector:DSUB - 25P ) ( Connector:DSUB- 9 S ) (3) Dip switch setting Set the dip switches of the plotter as follows : 1 23 6 78 9 10 (4) Communication Verification with Computer...
Page 24: Command
Command Format Instruction Function X Ci/sd), Y Ci/sd) This specifies the center point by AA Center angle C i ) Arc absolute. absolute coordinates,and describes (,ResolutionCi) ) a circular arc. X Ci/sd), Y Ci/sd) This specifies the center point by AR Center angle C i ) relative coordinates,and describes Arc relative.
Page 25 Format Instruction Function Type( i ) ( , P eating FT space (sd) ( , Angle Fill type. This specifies the hatching type. 1M e mask value Input error mask. This sets the mask byte. Initialize. This performs initialization. Pix(i), This specifies the coordinates of Input PI and P 2.
Page 26 Format Instruction Function OS (i return) Output statas. This outputs a status byte. (i return) This outputs the coordinates of Output window. window. X (i/sd), Y Ci/sd) Plot absolute. This moves the pen by absolute coordinates. (X (i/sd), Y Ci/sd) Pen down.
Page 27 Format Instruction Function This describes a character at each SM Character Symbol mode. plotting point. SP Pen No. (i) This selects a desired pen. Select pen. Character width This sets the character size by a Relative character SR ( d), Character relative value.
Page 28: Specifications
Specifications Plotting Area(max): ISO A-3 404mm or ANSI B 16.38" x 10.24" Plotting Speed' 400mm/sec(15.7" /sec)in each axis Resolution: 0.025mm (0.001") Plotting Accuracy: (Distance accuracy) less than of plotted distance or 0. Imm(0.004 ") , which ever higher. (Repetition accuracy ) less than 0.
