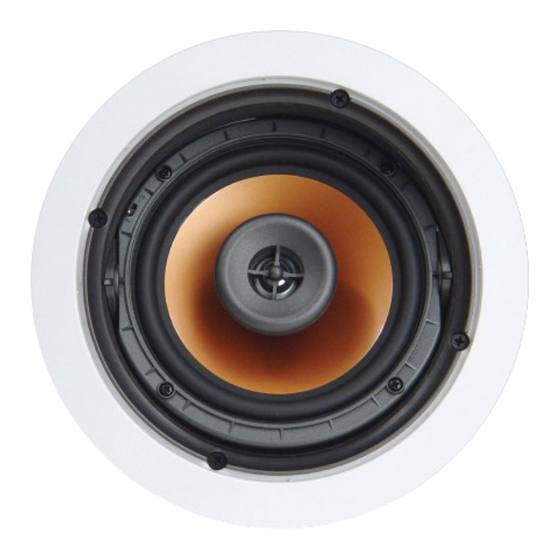

Klipsch CDT-3650-C Specifications

6.5" Two-Way Pivoting In-Ceiling Loudspeaker
Thanks to a new patent-pending gimbal
mechanism, known as
Dispersion Technology™ (CDT), both the
high and low frequencies of the CDT-3650-
C can be directed towards the listening area.
Because the tweeter is independently
adjustable from the woofer, this speaker
offers even more precise localization.
With integrated whole-house audio systems
becoming more popular than ever, Klipsch
designed the CDT-3650-C to meet the
market's demand for a high-performance in-
ceiling loudspeaker that easily challenges the
inherent limitations of fixed locations.
The CDT-3650-C features a 1-inch
aluminum tweeter mated to a swiveling 100-
degree Tractrix® Horn. This swiveling
horn design dramatically increases efficiency
by enabling the speaker to produce more
output using less energy. Additionally, a
horn-loaded tweeter works well in instances
where you want to point the sound to a
specific location because it has more
controlled directivity than a conventional
dome tweeter.
The speaker's 6.5-inch copper-colored IMG
woofer also has great positioning
capabilities. It can rotate a full 360 degrees
and then shift 15 degrees in any direction.
This flexibility combined with the swiveling
tweeter puts you in complete control of
where the sound will go. Other professional
grade features, such as a premium network
and a treble contour switch help the CDT-
3650-C establish a new benchmark in
architectural audio excellence.
CDT-3650-C
Available in a white finish, the paintable CDT-3650-C can be paired with
a Klipsch IK-650-C installation kit (sold separately). This revolutionary kit
Controlled
design incorporates a mud ring, breakaway wire tie and color-coded
brackets for easy speaker size identification. It also includes perforated
metal wings that easily fasten to the studs via screws, staples or nails.
Painted white for easy marking and placement, these metal wings can be
folded around the edge of the studs if necessary.
High sensitivity and power handling
I
Swiveling Tractrix Horn compression driver tweeter for clear sound in
I
any location
Treble attenuation switch
I
S P E C I F I C A T I O N S
FREQUENCY RESPONSE
SENSITIVITY
NOMINAL IMPEDANCE
CROSSOVER FREQUENCY
POWER HANDLING
ENCLOSURE MATERIAL/TYPE
DRIVE COMPONENTS
WIRE GAUGE ACCOMMODATED
WEIGHT
DIAMETER
MOUNTING DEPTH
CUTOUT DIMENSIONS
INSTALLATION KIT
FIRE RATED ENCLOSURE
63Hz-20kHz ± 3dB
93dB @ 1 watt/1 meter
8 ohms
2800Hz
50 watts (200 watts peak)
ABS, Infinite baffle, front flush with ceiling
Two-way system using one 1"(2.5cm)
aluminum dome compression tweeter with a
swiveling 100˚ Tractrix Horn and one
6.5" (16.5cm) pivoting IMG woofer
12
6.8 lbs. (3.1kg)
9.5" (24.1cm)
4.5" (11.4cm)
8.3" (21cm)
IK-650-C (sold separately)
ME-650-C (sold separately)
www.klipsch.com
1-800-KLIPSCH
All specifications are subject to change without notice. ©2004
