Summary of Contents for Danfoss DEVIreg 316

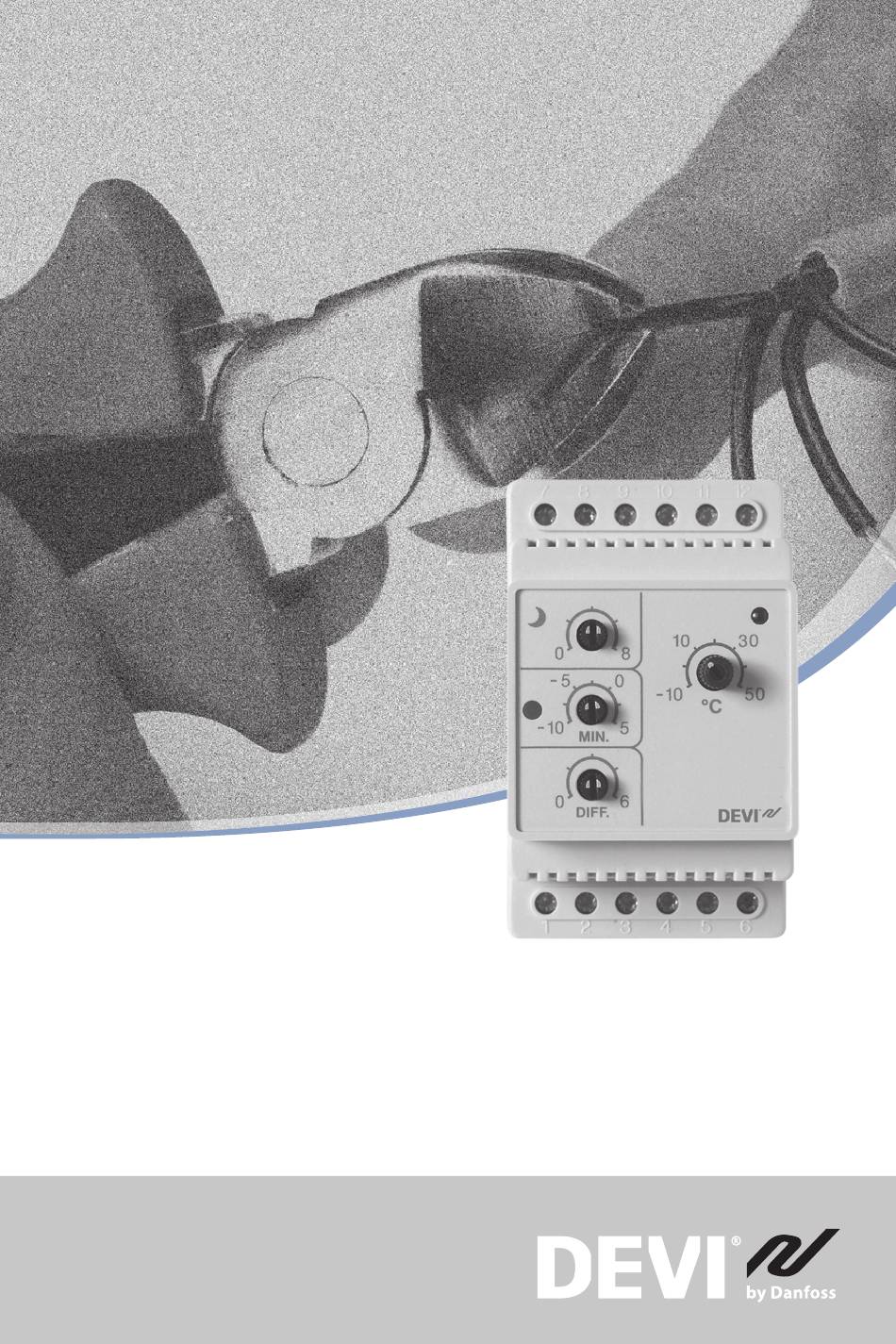

- Page 1 Installation Guide DEVIreg™ 316 Electronic Thermostat www.DEVI.com...
- Page 2 The English language is used for the original instructions. Other languages are a translation of the original instructions. (Directive 2006/42/EC)
-
Page 3: Table Of Contents
DEVIreg™ 316 Table of Contents Introduction Technical Specifications ... 4 Safety Instructions ....5 Mounting Instructions Settings Hysteresis . -
Page 4: Technical Specifications
DEVIreg™ 316 The thermostat has a button to adjust the temperature setting with a scale from -10°C to +50°C . An LED indicator shows standby periods and heating periods (red light). More information on this product can also be found at: devireg devi com. -
Page 5: Safety Instructions
DEVIreg™ 316 Pollution degree 2 (domestic use) Type Storage temperature -20 °C to +65 °C IP class Protection class Class II - Dimensions 86 x 36 x 58 mm Weight 180 g The product complies with the EN/IEC Standard “Automatic electrical controls for household and similar use”: •... -
Page 6: Mounting Instructions
Follow the steps below to mount the thermostat: 1. Click the thermostat on to the DIN rail attachment. 2. Connect the thermostat according to the connection diagram. Danfoss A/S IP20 D316 Ulvehavevej 61 -10T50 7100 Vejle... -
Page 7: Settings
DEVIreg™ 316 The screen of the heating cable must be connected to the earth conductor of the power supply cable by using a separate connector. Note: When you use the wire sensor for floor heating, always install the sensor in a conduit. 3. -
Page 8: Minimum Temperature Limiter
DEVIreg™ 316 temperature is between -10°C to +50°C, then it is recom- mendable also to adjust the hysteresis (C) according to the requested regulating range. As an example if the temperature is set at 18°C and the hysteresis at 3°C the thermostat will switch on at 18°C and off at 21°C. -
Page 9: Temperature Set-Back
DEVIreg™ 316 When the temperature drops below the minimum tem- perature set value, the thermostat stops heating and the LED indicator turns yellow. When the temperature exceeds the maximum temperature setting, the thermostat stops heating and both the indica- tor for minimum and maximum temperature disappears. Temperature Set-back By connecting an external timer to terminals 4 and 6, the thermostat can be set to reduce the temperature by 0°C to... -
Page 10: Warranty
All work will be invoiced in full if Danfoss is required to inspect or repair faults that have arisen as a result of any of the above. The DEVIwarranty shall not extend to products which have not been paid in full. - Page 11 DEVIreg™ 316 Installation Guide...
- Page 12 DEVIreg™ 316 Installation Guide...
-
Page 13: Disposal Instruction
DEVIreg™ 316 Disposal Instruction Installation Guide... - Page 14 DEVIreg™ 316 Installation Guide...
- Page 15 DEVIreg™ 316 Danfoss A/S Nordborgvej 81 6430 Nordborg, Syddanmark Denmark 08095512 & AQ119286461476en-020402 © Danfoss | 2022.05...
