- Page 1 IxOS Application Server Installation Guide User Guide Release 8.30 EA June 2017 Copyright © 2017 Ixia. All rights reserved.
- Page 2 This publication may not be copied, in whole or in part, without Ixia's consent. Ixia, the Ixia logo, and all Ixia brand names and product names in this document are either trademarks or registered trademarks of Ixia in the United States and/or other countries. All other trademarks belong to their respective owners.
-
Page 3: Contacting Ixia
Tower 1, 7th Floor, UMIYA Business Bay +91 80 4939 6410 Cessna Business Park Survey No. 10/1A, 10/2, 11 & 13/2 Outer Ring Road, Varthur Hobli Kadubeesanahalli Village Bangalore East Taluk Bangalore-560 037, Karnataka, India +91 80 42862600 IxOS Application Server Installation Guide User Guide... - Page 4 China Ixia Technologies (Shanghai) Company Support: support-chin- a@ixiacom.com Unit 3, 11th Floor, Raffles City, Beijing 400 898 0598 (Greater China Region) Beijing, 100007 P.R.C. +86 10 5732 3932 (Hong Kong) IxOS Application Server Installation Guide User Guide...
-
Page 5: Table Of Contents
Contacting Ixia About this guide Note icons and messages Typographical conventions Textual conventions Chapter 1 Ixia Application Server Installation Note Regarding Ixia Applications Installation and Setup System Interface Safety Precautions Chapter 2 Ixia Application Server Settings Remote Desktop Usage Chapter 3 Running Ixia Applications... - Page 6 This page intentionally left blank. IxOS Application Server Installation Guide...
- Page 7 About this guide About this guide This section explains the notational and typographical conventions used in this documentation, and provides a list of related documentation. Section contents: Note icons and messages Typographical conventions Textual conventions IxOS Application Server Installation Guide...
-
Page 8: About This Guide
Code samples, including keywords and variables within text and as separate paragraphs, and user-defined program elements within text. Text file content or examples, such as lines of text from an .ini file. Textual conventions The following table describes the typographical conventions used in this document. IxOS Application Server Installation Guide... - Page 9 Simultaneous keystrokes are shown by joining the key names with a plus sign (+). For example, CTRL+Q. > (right angle Separates levels in a hierarchy of menu selections. bracket) For example: “Select Administration > Users .” IxOS Application Server Installation Guide...
- Page 10 This page intentionally left blank. IxOS Application Server Installation Guide...
-
Page 11: Chapter 1 Ixia Application Server Installation

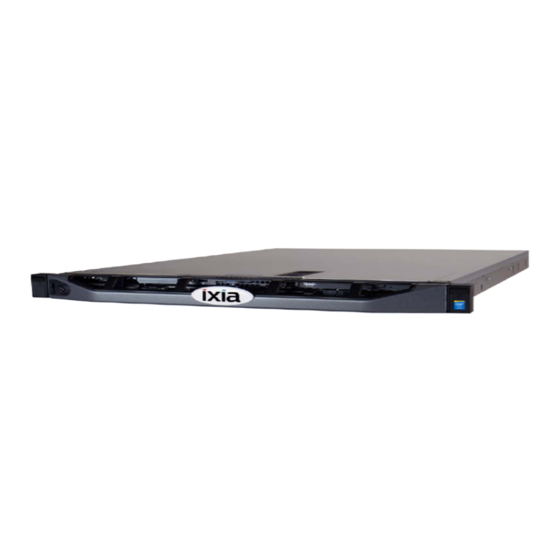

The Ixia Application Server does not have Ixia applications pre-installed. In order to support Ixia applications, the client component of Ixia applications used must be installed on the Ixia Application Server. For Ixia application compatibility and support, please visit www.ixi- acom.com (under Support, choose Product Compatibility Matrix ). - Page 12 Chapter 1 Ixia Application Server Installation Table: Specifications Ixia Application Server Motherboard Dual-processor motherboard using Intel C610-series chipset. Processor 2 x Intel® Xeon® processor E5-2600 v3 product family. Memory 64GB RDIMM, 2133 MT/s, Dual Rank. Drives One 1TB SATA 6Gbps 3.5 inch hot-plug hard-drive One 480GB Solid State Drive 6Gbps 2.5 inch hot-plug drive...
-
Page 13: Installation And Setup
Unpacking the System Inspect the box the Ixia Application Server was shipped in and note if it was damaged in any way. If the server itself shows damage you should file a damage claim with the carrier who delivered it. Decide on a suitable location for the rack unit that will hold the Ixia Application Server. - Page 14 (that is, the use of power strips). Installing the System into a Rack This section provides information on installing the Ixia Application Server into a rack unit with the rack rails provided. IxOS Application Server Installation Guide...
- Page 15 Chapter 1 Ixia Application Server Installation There are a variety of rack units on the market and the assembly procedure may differ slightly. You should also refer to the installation instructions that came with the rack unit you are using.
- Page 16 Chapter 1 Ixia Application Server Installation Note: Both chassis rails have a locking tab, which serves two functions. The first is to lock the server into place when installed and pushed fully into the rack, which is its normal position.
- Page 17 Figure: Installing the Server into a Rack Installing a Server into a Telco Rack To install the Ixia Application Server into a Telco type rack, do the following: 1. Use two L-shaped brackets on either side of the chassis. 2. Determine how far follow the server will extend out the front of the rack. Larger chassis should be positioned to balance the weight between front and back.
- Page 18 Chapter 1 Ixia Application Server Installation Figure: Installing the Server into a Telco Rack Providing Power The final step is to provide input power to the system. Plug the power cord from the power supply unit into a high-quality power strip that offers protection from electrical noise and power surges.
-
Page 19: System Interface
Chapter 1 Ixia Application Server Installation System Interface Figure: Front Panel, Application Server Overview There are several LEDs on the control panel to keep you constantly informed of the overall status of the system as well as the activity and health of specific components. There are also two buttons on the chassis control panel. -
Page 20: Safety Precautions
Safety Precautions Electrical Basic electrical safety precautions should be followed to protect yourself from harm and the Ixia Applic- ation Server from damage. Be aware of the locations of the power on/off switch on the chassis as well as the room's emer- gency power-off switch, disconnection switch or electrical outlet. - Page 21 Keep the area around the Ixia Application Server clean and free of clutter. The Ixia Application Server weighs approximately 23 lbs to 27 lbs (10.4 kg to 12.2 kg) when fully loaded. When lifting the system, always keep your back straight and lift with your legs.
- Page 22 Chapter 1 Ixia Application Server Installation There is a danger of explosion if the onboard battery is installed upside down, which will reverse its polarity. . Figure: Onboard Battery Replacement IxOS Application Server Installation Guide...
-
Page 23: Chapter 2 Ixia Application Server Settings
Logging In to the Ixia Application Server To log in to the Ixia Application Server via remote desktop, use the two Remote Desktop license cards pre-installed with the application server. To install additional RD CALs (Client Access Licenses): 1. - Page 24 Administrator account should be left unchanged to provide access to the server for debug purposes. The Administrator and Ixia accounts are intended to be used for local console access only. Remote Access should be done using the Admin and User accounts.
- Page 25 Chapter 2 Ixia Application Server Settings Account Name Password Admin08 123456-08 Admin09 123456-09 Admin10 123456-10 User01 123456-01 User02 123456-02 User03 123456-03 User04 123456-04 User05 123456-05 User06 123456-06 User07 123456-07 User08 123456-08 User09 123456-09 User10 123456-10 IxOS Application Server Installation Guide...
- Page 26 This page intentionally left blank. IxOS Application Server Installation Guide...
-
Page 27: Chapter 3 Running Ixia Applications
Supports disconnect/reconnect from the test session in progress Configuration The Ixia chassis, the Ixia Application Server, and the end-users’ computers are all connected via a cor- porate intranet or internet. Ixia test applications will be installed only on the Ixia Application Server. - Page 28 Ixia application. Set the server to restrict each user to single session. Only one copy of the Ixia application needs to be installed by a user with an Administrator priv- ilege. Installation should be done via VNC, not Remote Desktop.
- Page 29 Chapter 3 Running Ixia Applications Each instance of the Ixia application and remote desktop session can be viewed and controlled by other users if permission is granted by the login user. The following quick steps show how to do this: 1.
-
Page 30: Known Limitations
256K, the number of recom- mended users on the application will drop to less than six. Ixia recommends to leave 20 -25% of installed memory available to handle peak demands. - Page 31 The saved configuration for IxAutomate, along with its log files and result files, is saved in the same directory on the Ixia Application Server. The config files for each user will be applied to each instance of IxAutomate on the application server. Each user must carefully name the config files based on the user’s login name.
- Page 32 This page intentionally left blank. IxOS Application Server Installation Guide...
- Page 33 13 running installation 20 Ixia applications 17 installation and setup 3 ixia application 20 safety precautions 10 Ixia Application Server 1, 3, 13 supported 1 Ixia, contacting 0 typographical conventions 2 known limitations 20 user account 14 limitations-known 20...
- Page 34 This page intentionally left blank. IxOS Application Server Installation Guide...
- Page 36 Ixia 26601 West Agoura Road Calabasas, California 91302...
