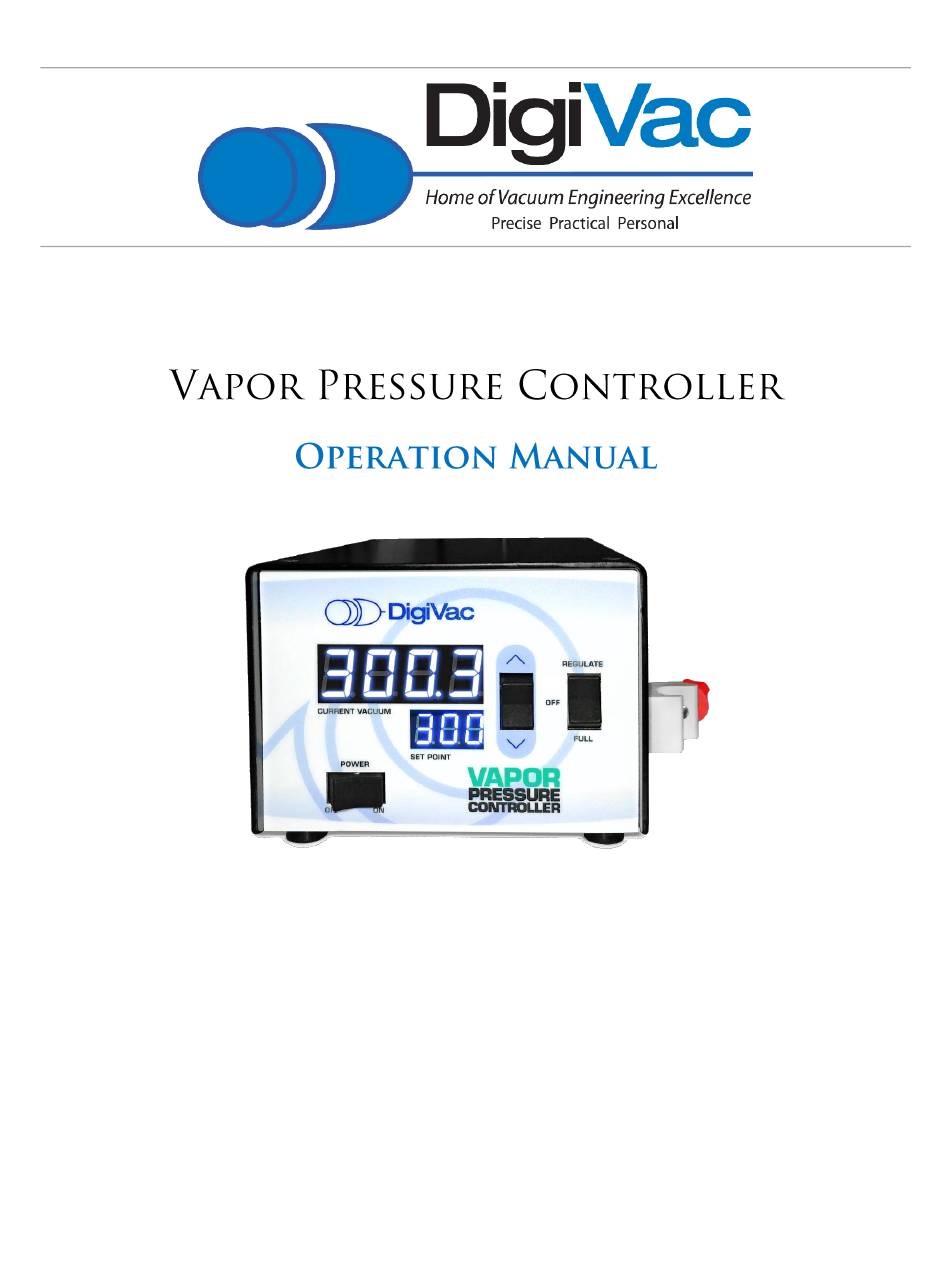

- Page 1 YOU MUST READ THIS MANUAL BEFORE USE...
- Page 2 Table of Contents Calibration Procedure ............................. 6 Sensor and Plumbing ............................7 Maintenance ..............................7 Notes on calibration ............................7 (J)D □ 1020 Campus Drive West, Morganville, NJ 07751 - Office: 732-765-0900 igiVac Fax: 732-765-1800 - sales@digivac.com - www.digivac.com...
- Page 3 The VPC facilitates separating chemicals that have vapor pressures as close as 10 Torr to one another. It can also be used to prevent bumping by gradually changing the pressure. The VPC can also help save your pump, widen the choices of pumps you can use for low temperature distillation, and keep vacuum pump oil out of your system.
- Page 4 • Use hose clamps or another way to minimize leakage at vacuum interfaces • Use Teflon tape on all NPT fittings. Consult our guide on best practices for NPT connections. (J)D □ 1020 Campus Drive West, Morganville, NJ 07751 - Office: 732-765-0900 igiVac Fax: 732-765-1800 - sales@digivac.com - www.digivac.com...
- Page 5 • U=0 sets the units to Torr • U=1 sets the units to mbar • U=2 sets the units to kPa (J)D □ 1020 Campus Drive West, Morganville, NJ 07751 - Office: 732-765-0900 igiVac Fax: 732-765-1800 - sales@digivac.com - www.digivac.com...
-
Page 6: Calibration Procedure
The VPC valve is a bit noisy, but more of a finger tapping loudness. If you hear a loud metallic sound, then something is wrong. Consult your vendor. (J)D □ 1020 Campus Drive West, Morganville, NJ 07751 - Office: 732-765-0900 igiVac Fax: 732-765-1800 - sales@digivac.com - www.digivac.com... -
Page 7: Maintenance
Notes on calibration There is inherent drift in all sensors including the DigiVac 775i piezo resistive sensor. Drift is specified in the datasheet, but the specification is typically a worst case scenario as drift is not easily predicted and depends on operating environment. Depending on your accuracy requirements, it makes sense to set up a calibration interval to obtain as found data, and get a fresh calibration. - Page 8 1/8" FNPT (if you remove the nipple), 1/8"MNPT, 1/4" ID hose with a barb, 3/8” ID hose fits over the nipple LED Heights .56” .35” (J)D □ 1020 Campus Drive West, Morganville, NJ 07751 - Office: 732-765-0900 igiVac Fax: 732-765-1800 - sales@digivac.com - www.digivac.com...
- Page 9 27 inches of mercury. Below that, it is much more useful to talk in terms of absolute pressure, starting from absolute zero. The Vacuum Gauge does just this. (J)D □ 1020 Campus Drive West, Morganville, NJ 07751 - Office: 732-765-0900 igiVac Fax: 732-765-1800 - sales@digivac.com - www.digivac.com...
- Page 10 DIGIVAC product, including, but not limited to, any vacuum system, engine, vehicle, factory, or the like. In the event, a court of law with proper jurisdiction finds DIGIVAC liable to you for any purpose, you agree and acknowledge DIGIVAC’s maximum liability shall not exceed the purchase price of one unit of product giving rise to such liability, or $250.00,...
