Summary of Contents for Akai MPD16

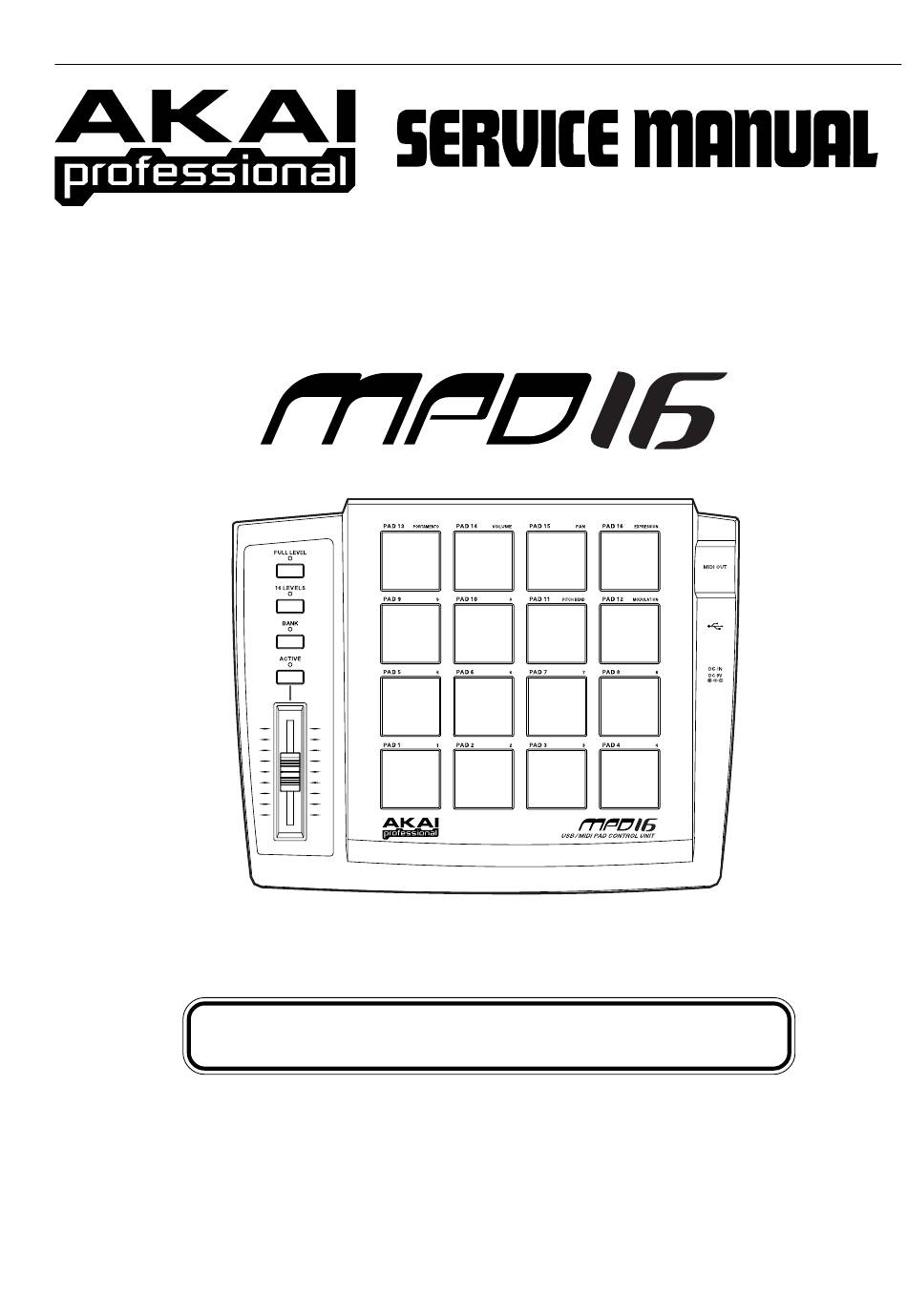

- Page 1 USB / MIDI PAD CONTROL UNIT SERVICE MANUAL...
-
Page 2: Safety Instructions
SAFETY INSTRUCTIONS INFORMATIONS SYMBOLS FOR PRIMARY DESTINATION 1. Parts identified by the symbol are critical for safety. Replace them only with the parts number specified. Unit destinations are indicated with letters as shown below. 2. In addition to safety, other parts and assemblies are Symbols Principal Destinations specified for conformance with such regulations as those... -
Page 3: Specifications
SPECIFICATIONS Functions: Transmission of MIDI Note-On/Off, Aftertouch (Key pressure), Control Change messages Terminals: USB connector x 1 (USB V1.1) MIDI OUT 5-pin DIN x 1 DC IN 9V AC Adaptor connection x 1 Controls: Pad x 16, FULL LEVEL key, 16 LEVELS key, BANK key, ACTIVE key, Slider Indicators: LED x 4 (FULL LEVEL, 16 LEVELS, BANK, ACTIVE) Power:... -
Page 4: Supplementary Information
Follow the on-screen instructions as you would install a new device, e.g. printer, scanner, etc., to install the driver. The driver software for the MPD16 is inside the folder named "Driver" on this CD-ROM. Specify this folder to load the file from. -
Page 5: How To Use This Parts List
III. PARTS LIST ATTENTION 1. When placing an order for parts, be sure to list the Part No., Model No. and the description of each part. Otherwise, the non-delivery of the part or the delivery of a wrong part may result. 2. - Page 6 1. PC BOARD BLK Ref.No. Part No. Description BA L4030A020A PC MAIN BLK MPD16 2. PC MAIN BLK Ref.No. Part No. Description ED 812087J D LED L-934SRD-G RED ED 812087J D LED L-934SRD-G RED ED 812087J D LED L-934SRD-G RED...
- Page 7 FINAL ASSEMBLY BLOCK SERVICE MANUAL...
- Page 8 4-7-3, KITA-YAMATA, TSYZUKI-KU, YOKOHAMA, JAPAN SERVICE SECT. PHONE : +81-45-914-8530 FAX : +81-45-914-8531 SERVICE MANUAL...
