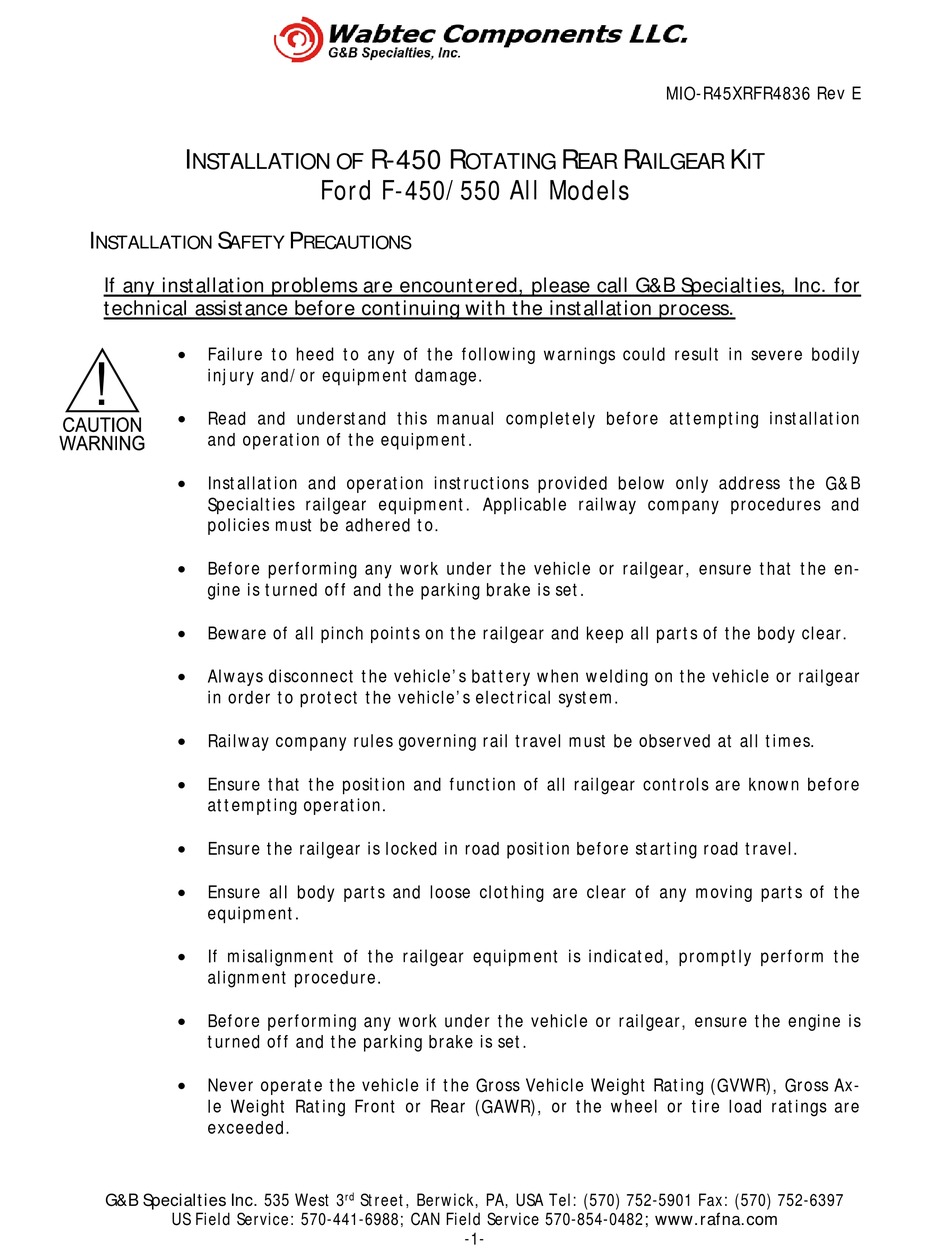

Wabtec R-450 Installation Manual

I
NSTALLATION OF
I S
NSTALLATION AFETY
If any installation problems are encountered, please call G&B Specialties, Inc. for
technical assistance before continuing with the installation process.

Failure to heed to any of the following warnings could result in severe bodily
!
injury and/or equipment damage.

Read and understand this manual completely before attempting installation
and operation of the equipment.

Installation and operation instructions provided below only address the G&B
Specialties railgear equipment. Applicable railway company procedures and
policies must be adhered to.

Before performing any work under the vehicle or railgear, ensure that the en-
gine is turned off and the parking brake is set.

Beware of all pinch points on the railgear and keep all parts of the body clear.

Always disconnect the vehicle's battery when welding on the vehicle or railgear
in order to protect the vehicle's electrical system.

Railway company rules governing rail travel must be observed at all times.

Ensure that the position and function of all railgear controls are known before
attempting operation.

Ensure the railgear is locked in road position before starting road travel.

Ensure all body parts and loose clothing are clear of any moving parts of the
equipment.

If misalignment of the railgear equipment is indicated, promptly perform the
alignment procedure.

Before performing any work under the vehicle or railgear, ensure the engine is
turned off and the parking brake is set.

Never operate the vehicle if the Gross Vehicle Weight Rating (GVWR), Gross Ax-
le Weight Rating Front or Rear (GAWR), or the wheel or tire load ratings are
exceeded.
G&B Specialties Inc. 535 West 3
US Field Service: 570-441-6988; CAN Field Service 570-854-0482; www.rafna.com
R-450 R
OTATING
Ford F-450/550 All Models
P
RECAUTIONS
rd Street, Berwick, PA, USA Tel: (570) 752-5901 Fax: (570) 752-6397
-1-
MIO-R45XRFR4836 Rev E
R R K
EAR AILGEAR IT
