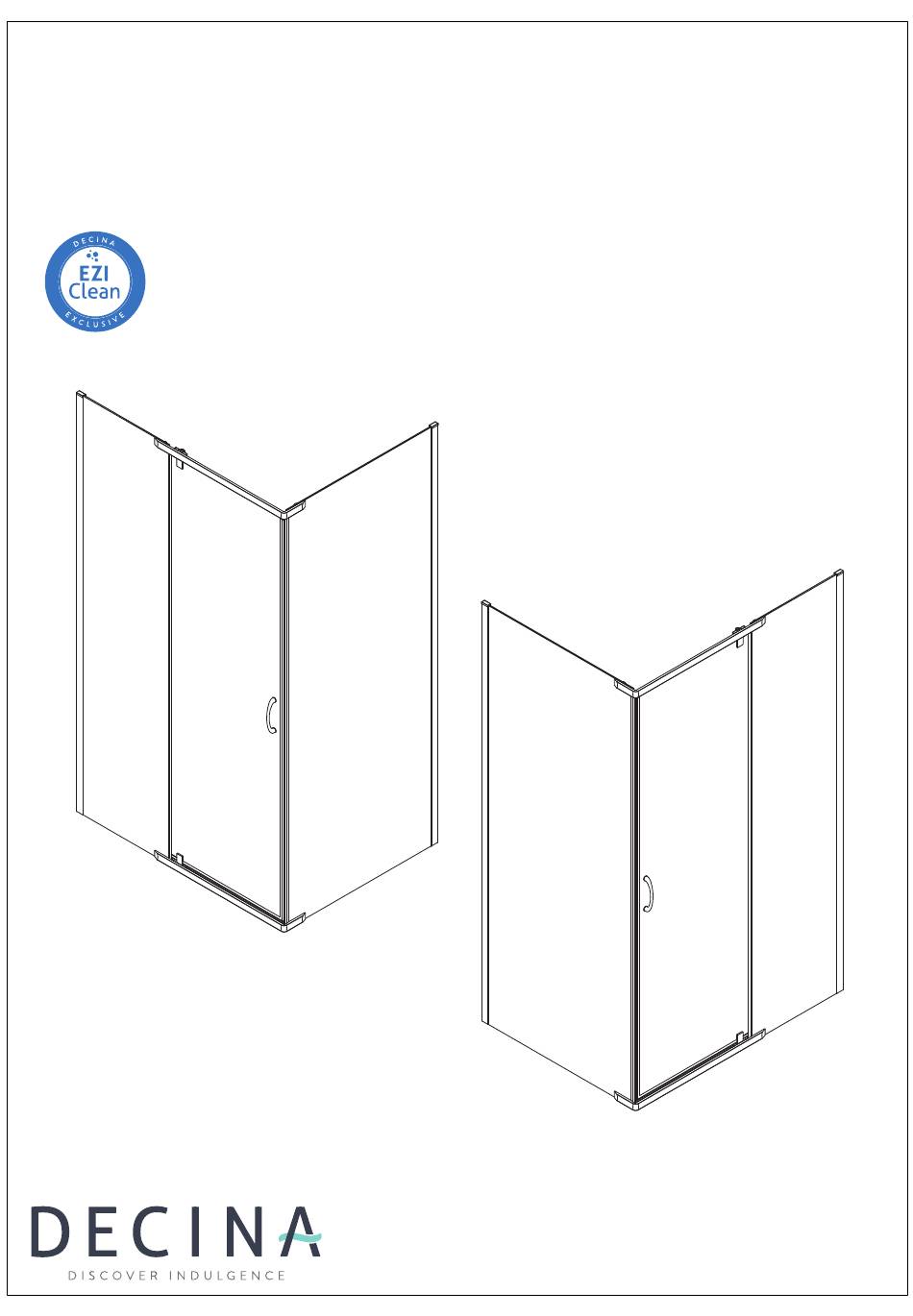

- Page 1 Instruction Manual CASCADE 900x900 (6mm) 1000x1000 (6mm) 1200x900 (6mm) With Decina's Exclusive EZI Clean Coating...
- Page 2 Maintenance - The use of harsh or abrasive cleaners will cause deterioration of the EZI Clean coating. If water alone is not enough to clean the glass, Decina recommends the use of mild detergent solutions only. Tools Required...
- Page 3 Parts List 1. Wall Channel Gasket 2 pcs 12. Brace 2 pcs 2 pcs 6 pcs 2. Channel Cap 13. Allen Head Screw Cover 3. Wall Channel 2 pcs 14. Countersunk Allen Head Screw 4 pcs 10 pcs 4 pcs 4.
- Page 4 Determining Wall Channel Location When commencing step 1 on the following page, please refer to this drawing and the tabulated dimensions for your size of system to assist in the correct location of the wall channels. SHOWER (Wall to outside of wall channel) WALL SIDE OF SHOWER...
- Page 5 Important - See page 4 for the dimensions and notes Install the wall channel. Important: Leave the corner glass protectors on until the last possible moment. Note Hole Locations Install the fixed panel glass. There is a sticker to indicate which side has the EZI Clean coating.
- Page 6 For white screens, run the screw in and out of the threaded holes in the brace before fitting. Fit cap to the wall channels. Install the top hinge to Install the bottom door Important: Leave the corner glass protectors the door. hinge on the brace.
- Page 7 Note steps 5B to 5D show the seals being installed on the door with the frame removed for clarity. Cut the seals to the correct length before fitting. Install the vertical door seals along the whole height of the door, and fit the bottom drip strips in between. 24 h SILICONE Silicone inside and outside of...
