Thermon Genesis HMI Quick Start Manual

GENESIS CONTROLLER
CONTROL AND MONITORING SYSTEM
The Genesis Controller HMI
serves as the central user
interface.
▶ View Status For 72 Circuits
On Dashboard
▶ Allows Up To 20 RTD's Per
Circuit
▶ Communications to Host
Computer via Ethernet
Communications
▶ Reduced Wiring And
Connections
▶ Each RTD is Addressable
▶ Control Panel - IP66 IP
Rating
The Genesis Controller has a
simple "glove touch" interface
that allows the operator to
adjust and monitor heat
tracing circuits. The following
steps show navigation of the
controller's basic functions.

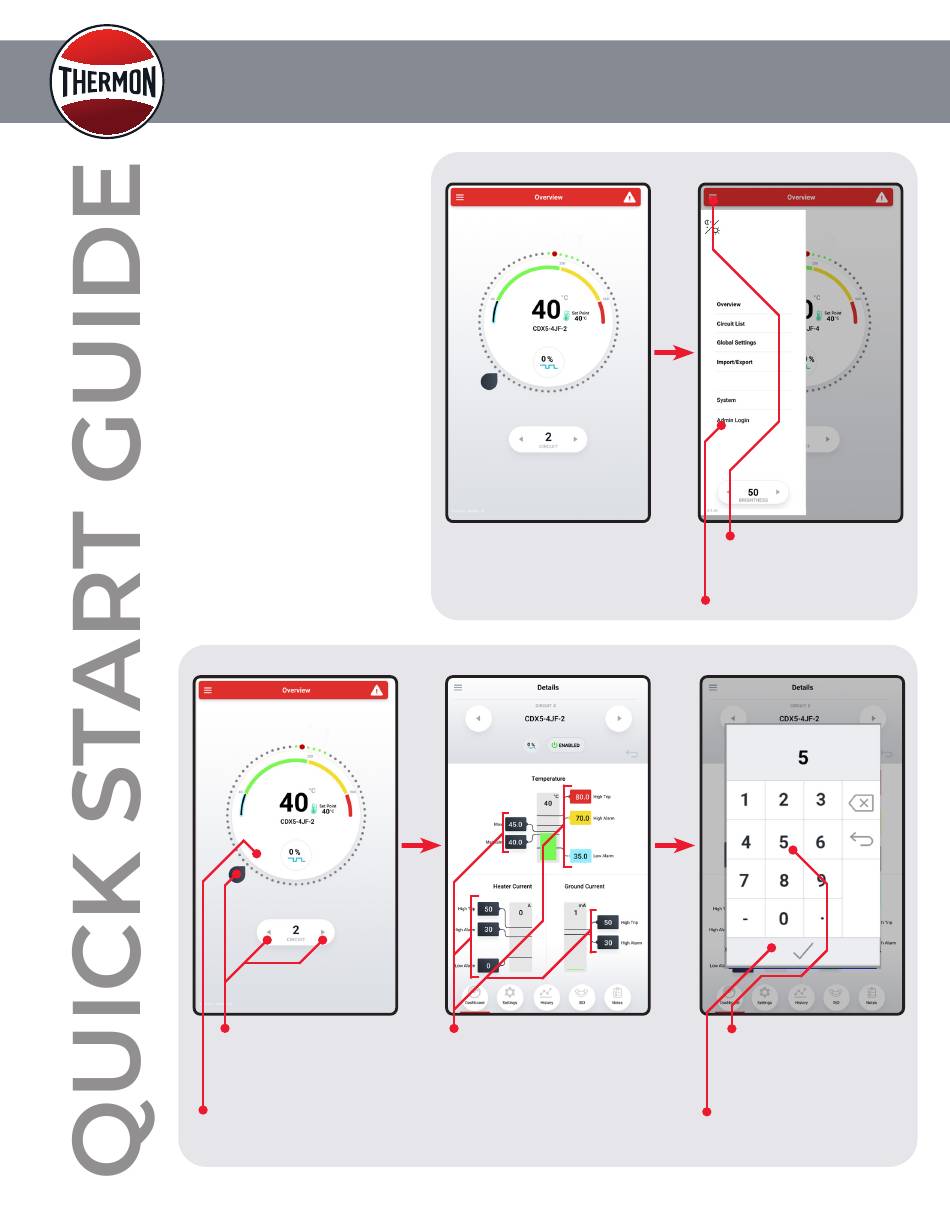

OVERVIEW

• Rotate the teardrop
cursor or use the
arrows to select a
circuit.
• Touch inside the circuit
dial to show the Circuit
Dashboard.
OVERVIEW
The Overview screen displays
information on any circuit.

CIRCUIT DASHBOARD

• Touch any value on circuit
details to edit a setpoint.
"HAMBURGER" MENU
• To edit circuit values,
log in by touching the
"Hamburger" menu.
• Select Admin Login.

NUMBER PAD

• Edit Maintain Temp,
Alarms, and Control
Band using the
number pad.
• Select check to accept
new setpoint.
