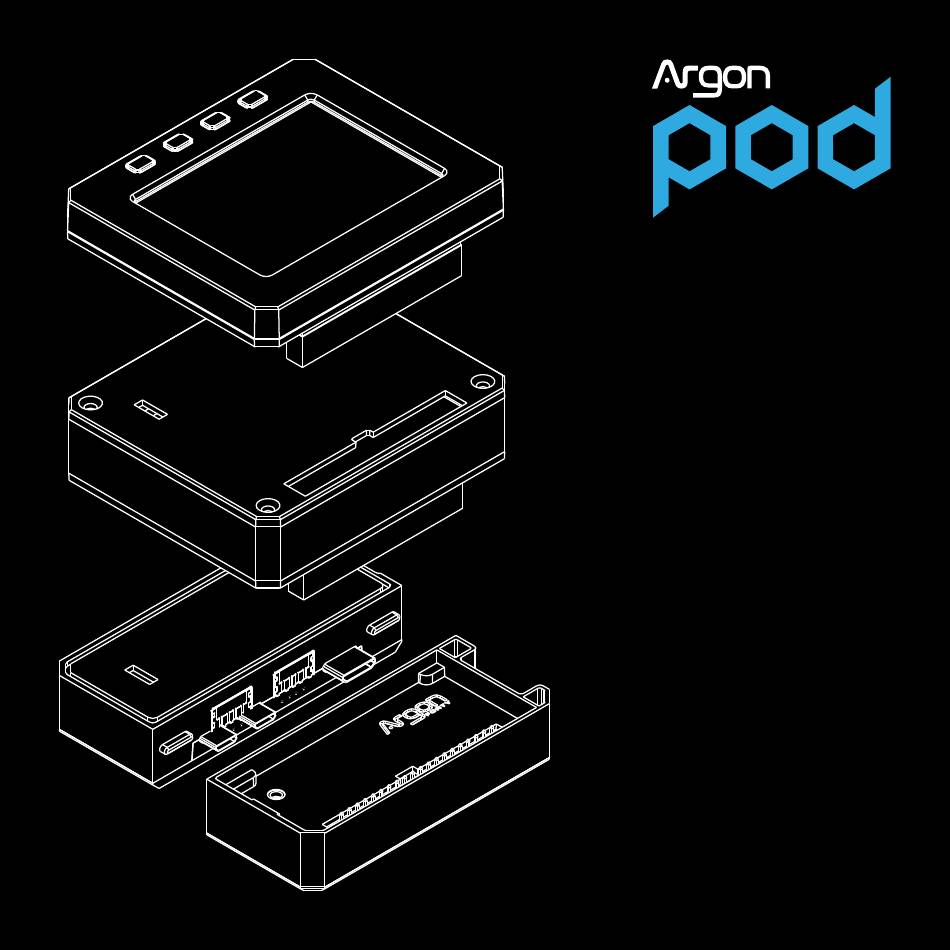

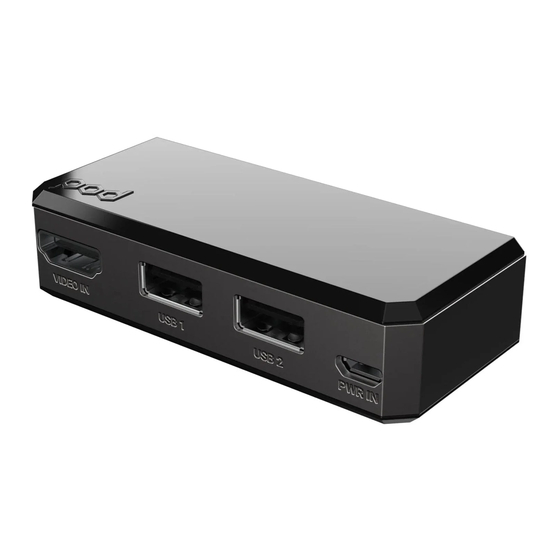

- Page 2 ARGON POD “YOUR CREA TIVITY IS LIMITLESS.” MODULE The Argon POD System is specifically designed for the latest Raspberry Pi Zero 2 W Boards, but it will also work with earlier Zero and Zero W Board. POD CASE MODULE The main POD Module is the HDMI�USB Hub module which converts the POD HDMI�USB MODULE...
- Page 3 Micro USB Power Micro SD Card Slot ASSEMBLY INSTRUCTIONS Remove the Bottom Cover of the POD Case. Drop inside the Raspberry Pi Zero 2 W Board. Make sure that the SD Card is NOT inserted to the RPi Board. *RASPBERRY PI BOARD Secure the 4 screws at the bottom of the case.
- Page 4 Secure the 4 screws at the bottom of the case. Place the desired Top Cover for your given use case. Insert micro SD Card After assembly, Argon POD Case is ready to use or connect to other POD Modules SIDE A - IN SIDE B - OUT www.argon40.com...
- Page 5 WIRING DIAGRAM FOR BUTTONS ARGON POD DISPLA Y MODULE WIRING DIAGRAM FOR IR GPIO23 VOUT IRM�H638T/TR2 100nF PARTS Button 1 � GPIO 16 Button 2 � GPIO 20 2.8 Inch Screen with Resistive Touch Button 3 � GPIO 21 40 PIN Female Header Button 4 �...
-
Page 6: Installing The Display Driver
During disassembly, take extra caution not to bend the GPIO PIN on the Raspberry Pi Board. argonpod-uninstall You may need to use a plastic prying tool to remove the POD Always REBOOT after changing any configuration of uninstallation Display Module. -
Page 7: Front Side
ASSEMBLY INSTRUCTIONS ARGON POD LAN •USB Get your fully assembled POD � HDMI�USB Module. MODULE At the Bottom of the POD HDMI�USB Module there is a 12�PIN Female Port. Connect the 12�PIN Male Connectors of the POD LAN�USB Hub Module. - Page 8 LET US CAST SOME MAGIC. ARGON ONE M.2 ARGON POL Y+ SA T A | NVMe ONE V2 Pi NAS VENTED...
