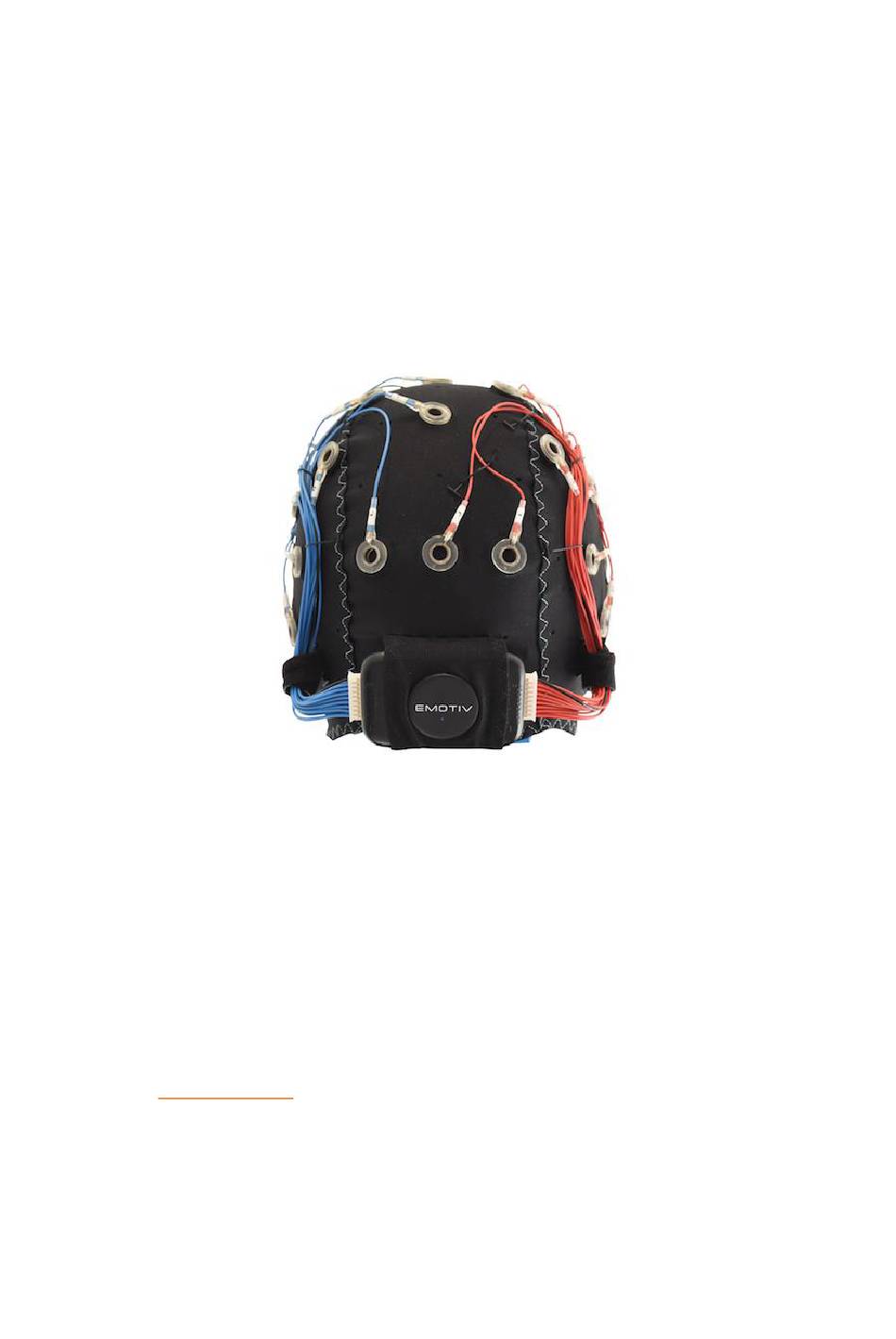

EMOTIV
EPOC FLEX

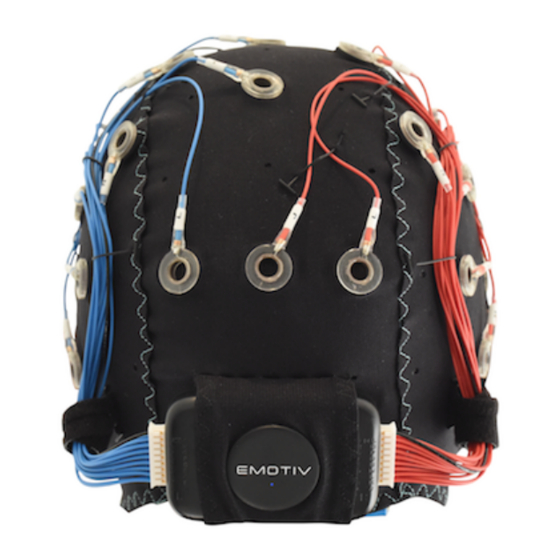

This document is intended to help you get started using the EPOC Flex. The EPOC
Flex is a 32-channel, flexible EEG system. It was built on the award winning EPOC+
technology and is designed for researchers who would like to have a more flexible
sensor placement and / or greater density of sensors. The reference sensors can be
placed in any location on the head, or on the ears with included earclips. EmotivPRO
v1.4+ is required for operation.
If you have any queries beyond the scope of this document, please contact us
through our
online
Safety Precautions
•
EPOC Flex is a consumer product, it is not intended to use be used for in-patient
health care or in hazardous environments.
•
EPOC Flex is designed to be used at room temperature; rapid changes in
temperature will affect the performance of the amplifiers and increase the noise floor.
USER MANUAL
support.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Emotiv EPOC FLEX
Summary of Contents for Emotiv EPOC FLEX
- Page 1 Safety Precautions • EPOC Flex is a consumer product, it is not intended to use be used for in-patient health care or in hazardous environments. • EPOC Flex is designed to be used at room temperature; rapid changes in...
- Page 2 • WARNING: Do not charge EPOC Flex while wearing the device. In the unlikely event your PC has a faulty power supply you and your headset could unintentionally become the ground path and so If EPOC Flex detects a USB connection when turned on it will stop communicating.
- Page 3 In case of dried gels, please soak the electrodes shortly (half a minute) and rinse again, or use a soft toothbrush. In case of more persistent or greasy stains you may use mild detergents, pure soap or baby shampoo, and clean your cap and electrodes in luke-warm soap water.
- Page 4 The connectors shown are JST PHD-18VS which are easily sourced from digikey if replacements are required. Charging and LED Indicators The EPOC Flex has a single RGB LED to indicate power on and charging as shown in the table below. Action...
- Page 5 If the EPOC Flex LED does not turn blue on power on it requires charging. Please use the provided USB Micro-B cable to recharge using any usb port. Note 1: The headset will charge faster if connected to a dedicated USB port.
- Page 6 EmotivPRO. This placement gives good coverage of the entire head, with the pod fitted in the back pocket. The standard EPOC Flex cap follows the official 10-20 system and has 72 openings as shown above. The controller has two pockets it can be placed in on the cap, one is fitted about Cz and the other Iz.
- Page 7 Choosing cap size Specifying the right cap size is critical for ensuring the sensors are in the right place when taking measurements. Our supplier recommends measuring the head diameter in the horizontal circumference as shown in the image below. Once you have the measurement for your test subjects you specify the closest size to the ones available for example 54.5cm →...
