- Page 1 ISSUE 2 1220 INSTALLATION AND USER GUIDE 6, 9 & 12kW ELECTRIC BOILER PLEASE RETAIN FOR REFERENCE...
-
Page 2: Product Codes

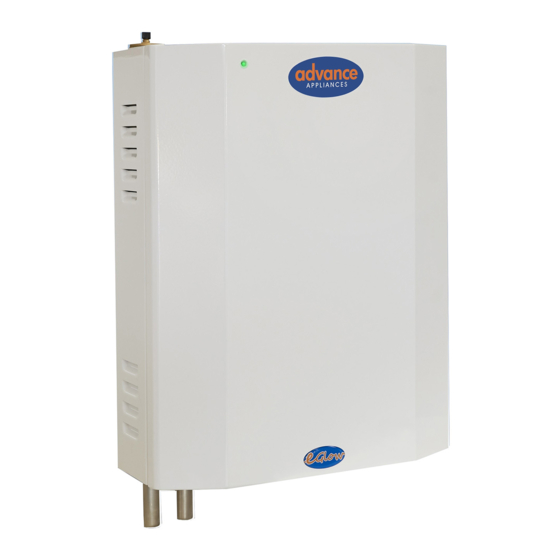

PRODUCT CODES CODE TYPE SIZE WEIGHT FULL KG 6KW CENTRAL HEATING BOILER 510h x 400w x 167d 15KG EG6-U 6KW UNDERFLOOR HEATING BOILER 510h x 400w x 167d 15KG 9KW CENTRAL HEATING BOILER 510h x 400w x 167d 15KG EG9-U... -
Page 3: Technical Specifications
OPTIONAL SEALED SYSTEM KIT AA 0400 KIT INCLUDES: COLD FILL HOUSE WITH DOUBLE ISOLATION 3 BAR PRESSURE RELIEF VALVE 1/2” EXPANSION VESSEL 8 LITRES PRESSURE GAUGE TECHNICAL SPECIFICATIONS POWER RATING 12kW FLOW AND RETURN 22MM BOTTOM ENTRY 22MM BOTTOM ENTRY 22MM BOTTOM ENTRY ELECTRICAL SUPPLY SP 240 VAC 50hz 30A SP 240 VAC 50hz 40A... -
Page 4: Mounting The Boiler
Only persons competent to do so may fit this appliance. Calculate space heating requirements and allow an extra 3kW for hot water provision if an indirect cylinder is to be installed. Advance recommend an Advance Appliances stainless steel pre-plumbed unvented cylinder and would always advise customers to consider renewable energy such as solar to contribute toward the generation of domestic hot water. -
Page 5: Installation Schematics
The eGlow boiler can only be configured into a sealed system. A sealed system kit can be purchased from Advance Appliances to make the job simple. An 8 litre expansion vessel is supplied with each kit but it should be noted that systems with high water content may require larger vessels. - Page 6 ELECTRICAL CONNECTIONS continued Check after installation • Polarity • Short circuit • Earth continuity • Resistance to earth • Visual check for stray wiring strands etc • Mechanical check for integrity of connections Do not switch on until the unit is full of water and air has been purged from the system. IMPORTANT The switching in the boiler is zero voltage and cannot be used for mains switching e.g.
-
Page 7: Part Numbers
USER INSTRUCTIONS Set the programmer to match your own preferences for heating periods. The room thermostat should be set at a comfort level, usually 20°C. The room thermostat should be in a room where the radiator is locked on e.g. a hallway, study etc rather that a living room or bedroom. - Page 8 SCHEMATIC AUTO AIR VENT CONTACTOR MAINS THERMISTER CONTROL HIGH LIMIT FLOW SWITCH THERMOSTATS 3 KW PODS AUTO BYPASS A RATED PUMP RETURN FLOW...
- Page 9 EGLOW PROBLEM SOLVING Note: Main fault modes LED7 Red Cont – Flow Switch Red Flashing – overheat Green – All ok Check voltage input at the terminal is between 207v- 245v. Note voltage during commissioning should be checked when the pods are ac ve to ensure the voltage does not go below the minimum level.
- Page 10 EGLOW PROBLEM SOLVING continued Check con nuity on bu on stat(s) on pods Replace bu on stat(s) Is the pump running? Check voltage to pump Power Power Replace Replace board pump Test flow switch with the pump running, there should be con nuity Ensure system is fully purged of air.
- Page 11 EGLOW PROBLEM SOLVING continued Connect each pod in turn. Does any one pod, when connected, turn off the boiler? Replace pod Notes LED layout Pump Diagram Green: ON Pods 1 to 4 Red: off but board powered Fault: Red Cont= Flow Red Flash= Overheat Mode Central hea ng...
- Page 12 • You keep proof of purchase/installation date • Warranty is registered on Advance Appliances Website • It is installed correctly and the benchmark paperwork is completed • It is used for its intended purpose •...
