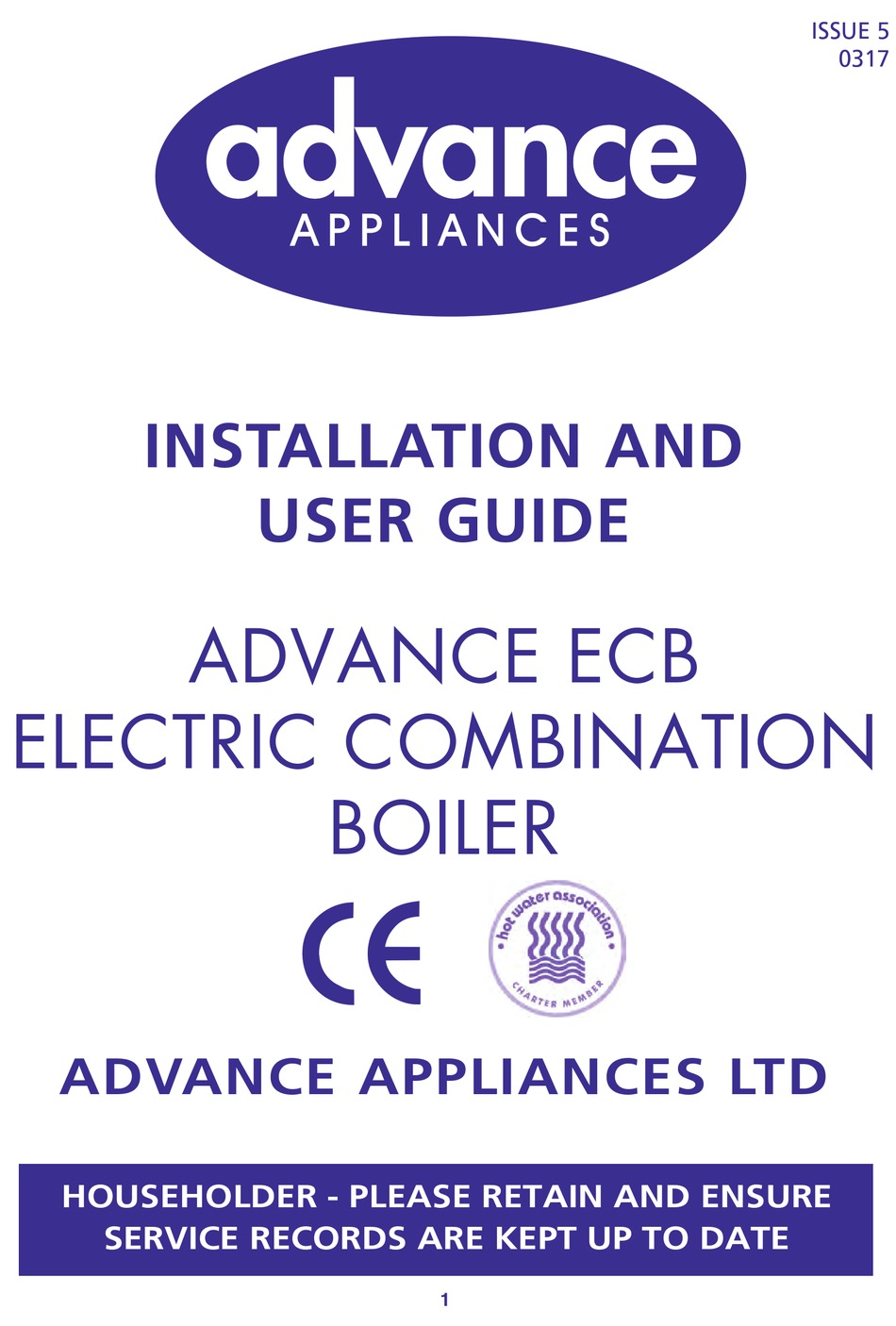

Page 1: User Guide
ISSUE 5 ISSUE 4 0317 0115 INSTALLATION AND USER GUIDE ADVANCE ECB ELECTRIC COMBINATION BOILER ADVANCE APPLIANCES LTD HOUSEHOLDER - PLEASE RETAIN AND ENSURE SERVICE RECORDS ARE KEPT UP TO DATE... - Page 2 SCHEMATIC 22mm Overflow Cold Section Copper Vent Isolation Valve Turn off when full Blending Valve Temperature Gauge Hot Water Coil 2 L Expansion Vessel Heating Flow Service Valve 3kw Immersion Heater (Boost) Cold Heating Return Immersion Heater Drain...
- Page 3 Set Timer to off-peak Period(s) Isolate Float Valve When Full Water Temperature Control Heating Return...
- Page 4 INTRODUCTION The Advance Electric Combination boiler is perfect for modern all electric apartment dwellers who prefer the comfort of wet central heating systems and mains pressure hot water for powerful showers and quick bath filling. The unit is supplied for use with a vented (open) central heating system and also provides mains hot water.
-
Page 5: Operation
OPERATION When heating is switched on water is pumped from the store to the radiators and has the benefit of providing immediate heat. A temperature gauge is fitted for convenience and diagnostics. The store works at an optimum temperature of 75°C . Set temperature between 70°C and 75°C on the thermostat dial. -
Page 6: Installation
INSTALLATION The unit must be installed to meet current best practice by a person competent to do so. Incoming mains of 22mm with a pressure of 2 bar or above is recommended for best performance. Lesser pressures/pipe diameters will compromise performance;... -
Page 7: Central Heating
PIPE WORK In order to comply with Part L Building Regulations it is necessary to insulate any hot water (primary and secondary) pipework within one metre of the cylinder. Guidance is given in the Table 5 (Page 20) of the 2013 Domestic Heating Compliance guide. -
Page 8: Warranty
70°C and 75°C. Please note that the immersion heaters are high temperature and replacements should be ordered from Advance Appliances Ltd.The spares are listed at the back of this booklet with relevant code numbers. GENERAL ALL JOINTS INCLUDING IMMERSION HEATERS MUST BE CHECKED –... - Page 9 PROGRAMMERS Two programmers are supplied with the unit - a wireless one with integrated room thermostat for central heating and one attached to the ECB which must be programmed to come on during off peak periods. Consult your energy supplier regarding these times if you are unsure. This is important and will help reduce running costs of the ECB.
-
Page 10: Wiring Schematic
WIRING SCHEMATIC IMMERSION 6kw IMMERSION PUMP THERMOSTATS HEATER RELAY CENTRAL RELAY HEATING PROGRAMMER COMM PEAK PROGRAMMER WIRING DIAGRAM... -
Page 11: Specification
WIRING SCHEMATIC SPECIFICATION CAPACITY HEATING RATING WEIGHT FULL HGT x DIA ERP RATING 210 HOT 20 COLD 6KW TO 10 KW 250KG 1750 x 535 SPARES EXPANSION VESSEL AA 0001 TEMPERING VALVE AA 0002 B IMMERSION 3KW HI TEMP AA 0005 IMMERSION 6KW HI TEMP AA 0284 A RATED PUMP... - Page 13 INSTALLER & COMMISSIONING ENGINEER DETAILS Customer Details Servicing Requirements 1. Check pressure reducing valve Name ................(if fitted) is 3.0 bar static and adjust Address ............... if necessary. 2. Check flow rates are correct at 18 litres ....................per minute. Clean filter in pressure Tel No.
- Page 14 NOTES...
- Page 15 INSTALLER & COMMISSIONING ENGINEER DETAILS Servicing Requirements Customer Details 1. Check pressure reducing valve Name ................(if fitted) is 3.0 bar static and adjust Address ............... if necessary. 2. Check flow rates are correct at 18 litres ....................per minute. Clean filter in pressure Tel No.
- Page 16 HOT WATER ASSOCIATION CHARTER MEMBER Hot Water Association (HWA) Members undertake to offer their customers the following: • To supply t for purpose products clearly and honestly described • To supply products that meet or exceed appropriate standards and building and water regulations •...
