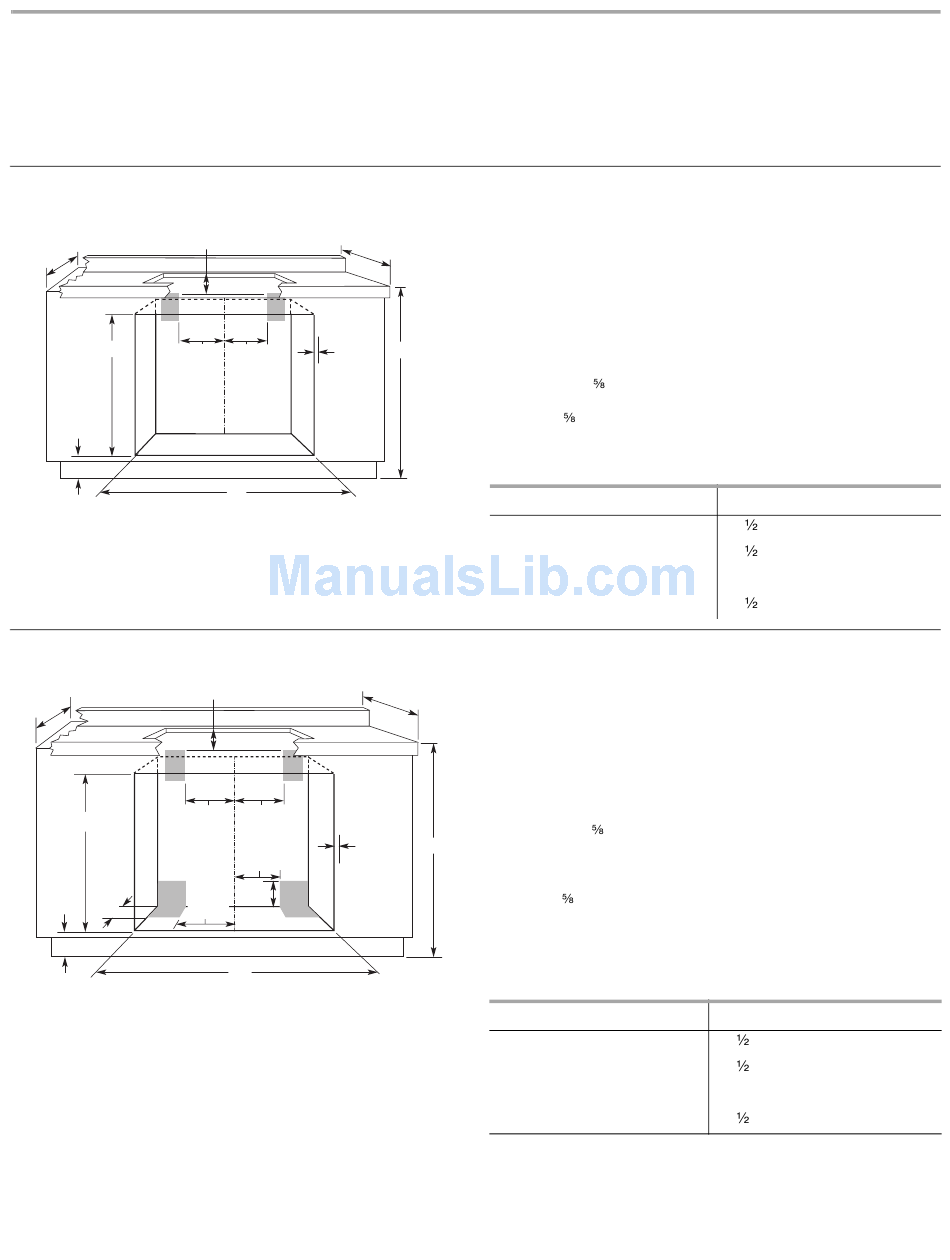

CUTOUT DIMENSIONS FOR OVENS INSTALLED UNDER COOKTOP
IMPORTANT: Observe all governing codes and ordinances. Cooktop must be approved for use over an oven. See Cooktop Installation
Instructions for cutout dimensions. Center the cooktop cutout over oven cutout. The junction box for the oven can be installed on either
side of the cutout area. The shaded area not used for the oven junction box is recommended for a junction box for the cooktop.
Approved Built-In Oven and Electric Cooktop Combinations
A
D
I
Approved Built-In Oven and Gas Cooktop Combinations
A
D
K
L
*NOTE: Lower shaded areas are recommended locations for flexible or rigid gas pipe installation. The gas pipe can be installed on
either side of the cutout, and either through the floor or through the wall. The shaded area not used for oven junction box is
recommended for 120-volt grounded outlet for cooktop.
8303946
B
C
G
E
F
J
B
E
F
G
I
J
M
N
U.S.A. ONLY
For the approved model number combinations refer to the
undercounter label located on top of the oven chassis and on
the bottom of the cooktop burner box.
A. 24" (61 cm) cabinet depth
B. 4" (10.2 cm) to top of countertop
C. 25" (63.5 cm) countertop depth
D. 27¾" (70.5 cm) minimum cutout height
H
E. Junction box 9" (22.9 cm) to center of cutout
F. Junction box 9" (22.9 cm) to center of cutout
G. Allow
H. 36" (91.4 cm) from cabinet base to countertop
I. 4 " (11.7 cm) from floor
J. See Cutout Dimensions chart.
CUTOUT DIMENSIONS
Oven Size
24" (61 cm)
27" (68.6 cm)
30" (76.2 cm)
36" (91.4 cm)
For the approved model number combination refer to the
C
undercounter label located on top of the oven chassis.
A. 24" (61 cm) cabinet depth
B. 4" (10.2 cm) to top of countertop
C. 25" (63.5 cm) countertop depth
D. 27¾" (70.5 cm) minimum cutout height
E. Junction box 9" (22.9 cm) to center of cutout
F. Junction box 9" (22.9 cm) to center of cutout
G. Allow
H
H. 36" (91.4 cm) from cabinet base to countertop
I. Gas line through wall 9" (22.9 cm) to center of cutout
J. 3¼" (8.26 cm)*
K. 4 " (11.7 cm) from floor
L. 3¼" (8.26 cm)*
M. Gas line through floor 9" (22.9 cm) to center of cutout
N. See Cutout Dimensions chart.
CUTOUT DIMENSIONS
Oven Size
24" (61 cm)
27" (68.6 cm)
30" (76.2 cm)
36" (91.4 cm)
" (1.6 cm) for oven trim to overlap on each side.
Oven Cutout Dimension
22 " (57.2 cm)
25 " (64.8 cm)
28½" (72.4 cm)
34 " (87.6 cm)
" (1.6 cm) for oven trim to overlap on each side.
Oven Cutout Dimension
22 " (57.2 cm)
25 " (64.8 cm)
28½" (72.4 cm)
34 " (87.6 cm)
