Manual Injector
Operating Instructions
tcs
1. Get to Know Your Machine
A
tcs
C
E
D
PARTS
Mounting screws
not included
1 Copyright 2017 Thermoplastic Comfort Systems, Inc.
Operating Instructions: TCS Manual Injector

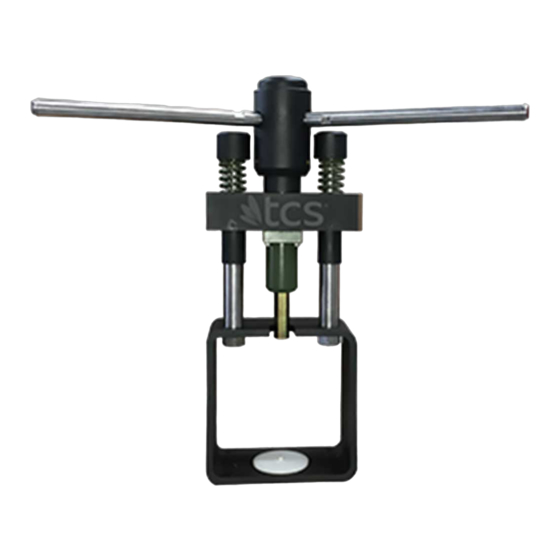

The TCS Manual Injector is used to inject
molten thermoplastic material into the
Injection flask. This injector is the most
economical of the TCS injection units.
The main benefit of having a manual
injector is the easy maintenance, and
longevity of the unit.
The injector is used in conjunction with
the TCS Digital Furnace. With one furnace
the injector yields approximately 30 cases
per day, but with additional furnaces and
melting cylinders, it can yield up to 120
cases per day.
plEasE REad maNual pRIOR TO usE
A
FRONT VIEW
A. Handles
B
B. Springs
C. Piston
D. Flask Guide
E. Mounting Screws
Handles
Included in package
Item #3506-01
SPECIFICATIONS
Yields: Approx. 30 cases per day (up to 120 with
additional furnaces)
Weight: 42 lbs
Dimensions: Width 22'" | Height 22" | Depth 17"
BACK VIEW
www.tcsdentalinc.com / 866-426-2970
I092614 Rev B
Effective Date: 05/15/2017
Advertisement
Table of Contents
Related Manuals for TCS 3506-01
Summary of Contents for TCS 3506-01
- Page 1 Manual Injector Operating Instructions The TCS Manual Injector is used to inject molten thermoplastic material into the injection flask. This injector is the most economical of the TCS injection units. The main benefit of having a manual injector is the easy maintenance, and longevity of the unit.
- Page 2 FIG 3 Note: Refer to TCS Digital Furnace Operating Manual for instructions on how to use the furnace in conjunction with this injector. 5. Use the flask guide to center the flask for injection.
- Page 3 WARNING: Use heat protective gloves from this point forward. Note: View TCS Digital Furnace for instructions. tcs® Proceed to melt the resin using the TCS Digital Furnace. Once the resin is melted and ready for injection, immediately: horizontal position lean on sprue opening...
- Page 4 Thermoplastic Comfort Systems, Inc. 2619 Lime Ave., Signal Hill, CA 90755 USA 866-426-2970 | 562-426-2970 info@tcsdentalinc.com www.tcsdentalinc.com 4 Copyright 2017 Thermoplastic Comfort Systems, Inc. www.tcsdentalinc.com / 866-426-2970 Operating Instructions: TCS Manual Injector I092614 Rev B Effective Date: 05/15/2017...
