- Page 1 User manual PL2SVX-EU PL2SVX-AUS PL2SVX-UK PL2SVX-CUS 230 V 240 V 240 V 120 V 50 Hz 50 Hz 50 Hz 60 Hz...
- Page 2 Save the box and all the packing material! LELIT has studied the external and internal packing of your coffee machine to help you re-use it in case of maintenance or repair need.
-
Page 3: Table Of Contents
English Index Product overview 1. General information 2. Installation information 3. Electrical installation 4. Equipotential connection 5. Water mains connection 6. Getting the machine ready for use 7. Installation check-up 8. Information for end user/operator 9. Warnings 10. Maintenance and repairs 11. -
Page 4: Product Overview

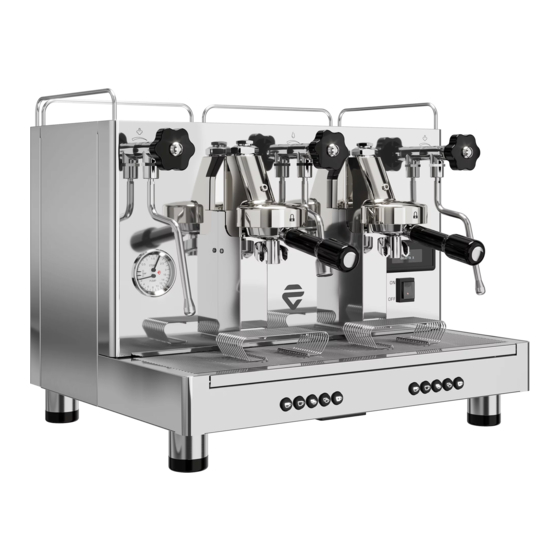

GiuliettaX - PL2SVX* PIC. 1 in the equipment box Product overview Power cord Steam wand Tube for water mains connection Hot water wand Water discharge tube Steam distribution knob Main switch Hot water distribution knob Selection panel Cup warmer rail Manometer for steam boiler pressure Cup warmer Manometer for pump pressure... -
Page 5: Installation Information
English 1. General information Attention. Please read the warnings and rules in this User’s Manual carefully before using or handling the machine in any way because they provide important information regarding safety and hygiene when operating the machine. Keep this booklet handy for easy reference. The machine was designed only for preparing espresso, coffee and hot beverages using hot water or steam, and for warming cups. -
Page 6: Electrical Installation
GiuliettaX - PL2SVX* Completely unwind the power supply cord. Should the power cord be damaged, please let only authorized, technically qualified people replace it. The coffee machine should sit on a flat, stable surface at least 20 mm from walls and from the counter. -
Page 7: Water Mains Connection
English 5. Water mains connection Water used in coffee machines must be potable and suitable for human consumption (see laws and regulations in force). Check that the water pH level is 6-8°F and complies with the laws in force and that the chloride value is less than 100 mg/l. -
Page 8: Information For End User/Operator
GiuliettaX - PL2SVX* Attention. Once the machine has been installed and is ready for use, before allowing the operator to start using the machine, wash the internal components by following the instructions below. EXTRACTION GROUPS Hook up the filter holders to the groups (without coffee). Let each group dispense water for about a minute. - Page 9 English boiler pressure. During the use of the machine, HOT WATER DISPENSING this value can fluctuate (between 1 and 2 bar). If the machine has not been used for more than an hour, before using the hot water, dispense STEAM DISPENSING about 200 cc.
-
Page 10: Warnings
GiuliettaX - PL2SVX* 9. Warnings Danger of burns. The areas marked with CAUTION: HOT “CAUTION: HOT“ label become very hot. PARTICULAR CARE IS NEEDED WHEN CLOSE TO THESE AREAS. 9.1 General warning The manufacturer disclaims all liability for damages to items or persons due to improper use or due to the coffee machine being used for reasons other than its intended use. -
Page 11: Turning The Machine On
English The access to the service area is restricted to persons having knowledge and practical experience of the appliance, in particular as far as safety and hygiene are concerned. Cleaning and user maintenance shall not be made by children without supervision. 11. - Page 12 GiuliettaX - PL2SVX* 13.1 Coffee dose programming The machine has a selection/control panel for each extraction group: K1GR1 K2GR1 K3GR1 K4GR1 K5GR1 K1GR2 K2GR2 K3GR2 K4GR2 K5GR2 13.2 13.3 Through the control panel it’s possible to perform the machine functions: Button Function Special function...
- Page 13 English 13.4 13.5 3. Once the desired quantity of coffee for that dose is reached, press the selected button again and the serving dose will be memorized. The machine will go back to doses programming mode. At the same time, the LED of the programmed dose will go off and the LED of both K5 buttons will blink; now it’s possible to program the other doses without repeating the operation described in point 1.
-
Page 14: Dispensing Other Hot Beverages
GiuliettaX - PL2SVX* 14. Dispensing other hot beverages STEAM DISPENSING 14.1 Once the machine is ready, open the steam knob (12) anticlockwise with the steam wand (10) directed on the drip tray and let the initial condense water come out; then close the steam knob to stop the function (Pic. - Page 15 Rinse by letting the hot water come out of each group for 30 seconds. 15.2 Filterholders cleaning Pour 1 litre of warm water and 10 gr of detergent powder (or 3 single bags of LELIT PLA9201) into a suitable basin.
-
Page 16: Toubleshooting - Solving The Most Common Problems
GiuliettaX - PL2SVX* 16. Toubleshooting – Solving the most common problems Before calling the service personnel, to avoid useless expenses, check whether the machine problem corresponds to one of the cases indicated below. Malfunction Cause Solution Leaking from the filterholder Dirty group gasket Clean the group gasket with a brush edge... -
Page 17: Advices - Tips - Useful Images
English 17. Advices – Tips – Useful Images Attention. This chapter is for the use of qualified and authorized technical staff only. The access to the service area is restricted to persons having knowledge and practical experience of the appliance, in particular as far as regards safety and hygiene. Attention. - Page 18 GiuliettaX - PL2SVX* 17.5 17.6 Use a PH2 Phillips screwdriver and remove the 3 fixing screws of the cup warmer shelf (Pic.17.5). Use a PH2 Phillips screwdriver and tighten the 8 M screws (part#MC268/I) present in the package to fix the sides of the cup warmer shelf (Pic.17.6). Attention.
- Page 19 English IMPORTANT INFORMATION For the correct disposal of the product in accordance with EU DIRECTIVE 2002/96/EC and with Legislative Decree no. 151 of 25 July 2005. At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special authorised differential waste collection centre or to a dealer providing this service.
- Page 20 LELIT.COM EN/7800056 REV 01 ©2021 Gemme Italian Producers Srl. All Rights Reserved...
