Summary of Contents for Robit HYPER 181

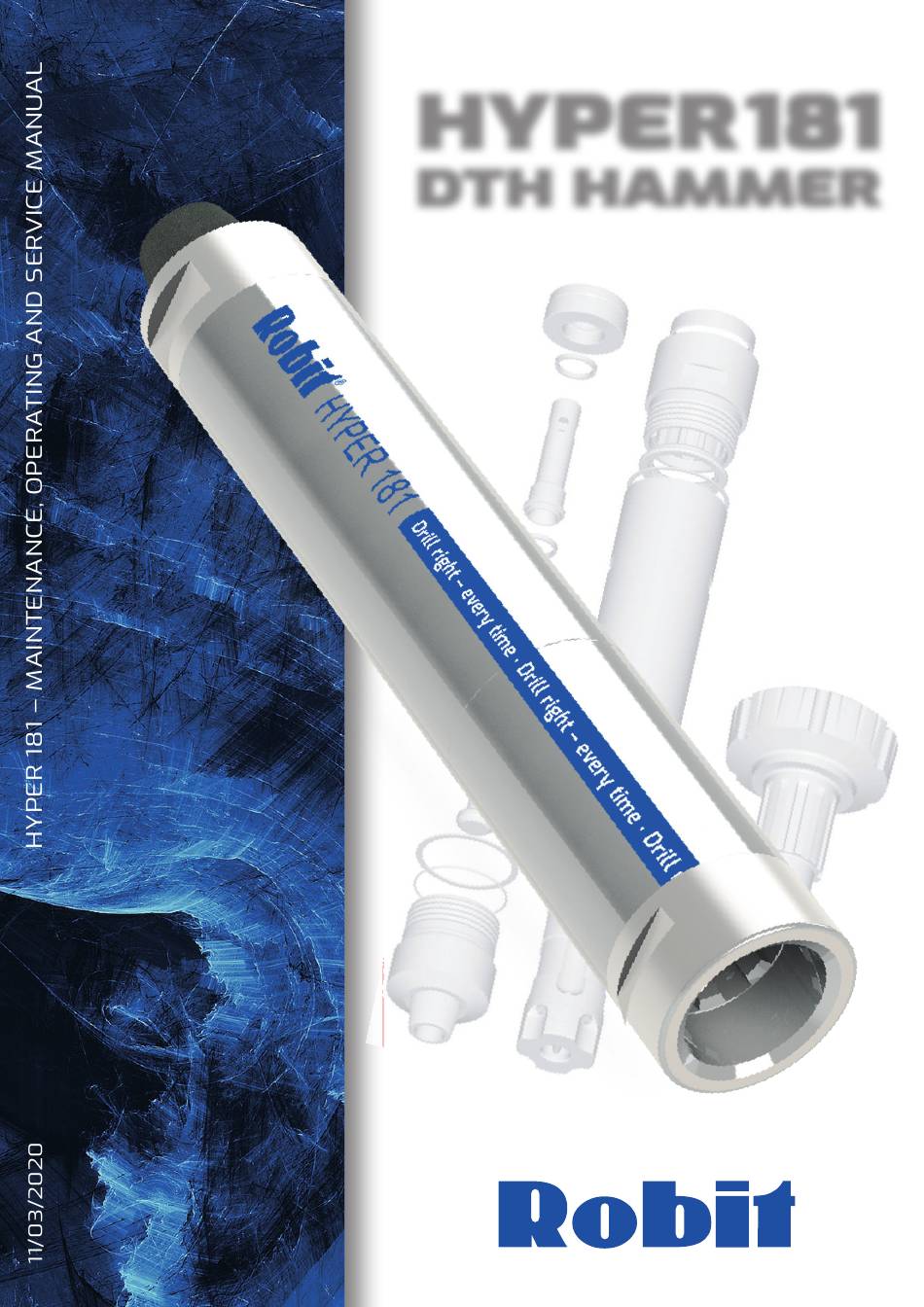

- Page 1 HYPER 181 DTH HAMMER www.robitgroup.com...
-
Page 2: Table Of Contents
CHUCK RELEASE WASHERS CLAMPING POSITIONS The Robit Hyper 181 is a strong and robust tool of a simple and straight forward design to provide maximum performance within a minimum of maintenance. The Hyper 181 is designed to operate efficiently at air pressures between 100psi (7bar) and 225psi (15bar). - Page 3 HYPER 181 BACKHEAD PISTON PISTON PISTON PISTON BACKHEAD ‘O’RING BREAKOUT WASHER WEARSLEEVE CHECK VALVE SPRING DRIVE PLATE VALVE CHEST BREAKOUT WASHER BUFFER COVER CONTROL RETAINING TUBE RING COMPRESSION BUFFER TUBE BUFFER TUBE HOLDER TUBE ‘O’RING CHUCK CHUCK BEARING...
-
Page 4: Hammer Parts List
HAMMER PARTS Ref Description (N180) Part Number HSH1813882M Backhead 8 ∕ ” Reg Pin Backhead ‘O’ Ring HSH18114 Check Valve HSH18108 Check Valve Spring HSH18110 Diverter HSH18107 Compression Buffer HSH18128 Buffer Cover HSH18173 Tube Holder HSH18131 Tube Buffers (2) HSH18129 Tube ‘O’... -
Page 5: Hammer Specifications
HAMMER SPECIFICATIONS OUTSIDE DIAMETER Specification ¼”API STANDARD BACKHEAD reg pin CONNECTION CHUCK HYPER 181 CONNECTION (N180) STD CONFIGURATION OR Sd18 LENGTH N180 SD18 LESS 86” 88.60” 2185mm 2250mm OUTSIDE 16” DIAMETER OF HAMMER 406mm OUTSIDE 16” DIAMETER OF CHUCK 406mm BORE 12.25”... -
Page 6: Air Consumption
103971 3672 Additional Flushing The Hyper 181 has a control tube with a softened face which can be easily drilled through to allow for extra flushing air should this be required. In certain drilling conditions extra flushing air may be... - Page 7 STRIPPING THE HAMMER NOTE:- All components must be washed clean and laid out on a dirt free surface to enable inspection COMPONENT PARTS to take place. The stripping procedure is explained in the following section, Backhead Assuming both the chuck and the backhead threads have been loosened either on the drilling rig or by using a hydraulic splitter, the stripping procedure is as follows Backhead ‘O’Ring...
-
Page 8: Checking For Wear & Damage
CHECKING FOR WEAR AND DAMAGE Premature wear to internal parts is a result of either:- 1. Insufficient or incorrect lubrication. 2. The ingress of debris in the hammer. 3. Incorrect service and storage. The maximum wear allowance shown in this section are a guide as to when to replace parts. In certain conditions parts may need to be replaced before they reach the sizes shown. - Page 9 Pistons with wear patterns, or indentations deeper CHAMFER “B” than 2mm should be replaced. IN BORE The table below contains useful machine information for reforming the piston face. MACHINE DETAIL HAMMER RADIUS “A” CHAMFER “B” HYPER 181 0.125” 0.250” @45 Fig. 3 Area to be machined...
- Page 10 C C H H E E C C K K I I N N G G F F O O R R W W E E A A R R A A N N D D D D A A M M A A G G E E CHECKING FOR WEAR AND DAMAGE Control Tube Control Tube...
-
Page 11: Rebuilding (Assembly) Of Hyper Hammers
REBUILDING HYPER HAMMERS 1. Ensure all the maintenance work outlined in the previous section has been completed. 2. Lay the wearsleeve on two wooden blocks, support the chuck end so as to raise the sleeve 50mm - Backhead 70mm off the ground this will make it easier to screw in the chuck assembly. -
Page 12: Lubrication
This is equally important that the lubricator system must be adjustable and have a visual check to ensure the lubricator does not run out of oil. As a good general guide, all Robit Hyper hammers require a third of a pint of oil per 100cfm of air through the hammer ( 0.07 litre per metre cubed) Eg Hyper 181 operating at 150psi = 2016cfm = 6.7 pints per hour... -
Page 13: Hammer Storage
The hammer should be stripped and cleaned and free of all water/moisture as possible. Robit T220 or similar rock drill oil should be poured into backhead (see chart below for quantity) allowing all parts to be coated throughout the hammer. - Page 14 0.300” - 7.62mm 0.740” - 18.80mm Chuck Release Washers are fitted to the Robit Range of Hyper Hammers to assist the removal of the Chuck from the Wearsleeve after drilling. The Chuck Release Washer is manufactured from a composite material that reduces the friction between the...
- Page 15 9.000” / 229mm HYPER 181 BACKHEAD There are many different “Splitting” Machines available for unscrewing the threaded connections on a Robit Hyper Hammer, some are attachments to the Drill Rig, others are independent hydraulic units, or purpose made Bench arrangements. Regardless of which machine is chosen they all require some method of securing the Wearsleeve whilst applying a torque to either the Chuck or Backhead.
- Page 16 www.robitgroup.com...
