Function
1. I
nductive load like refrigerator, washing machine, electric drill are well applicable.
2. stand-by comsumption only need 0.3W
3. Input voltage: 12V or 24V be option
4. safety protection device and voice alarm
5. Battery optimization function, make your battery more durable.
6. Integrate with charge controller (charge and inverter simultaneously)
Warning
1.
A deficient assembly could result in damage to the device, cause function failures or potential damage to the users
2. The working device generates a high voltage which might be lethal in case of contact. So, any manipulation
of the inverter must be carried out with utmost care and meet the local rules
3. No current or voltage generating device(public grid, generator,...)may be connected to the output of the inverter because
this could result into its destruction
Installation

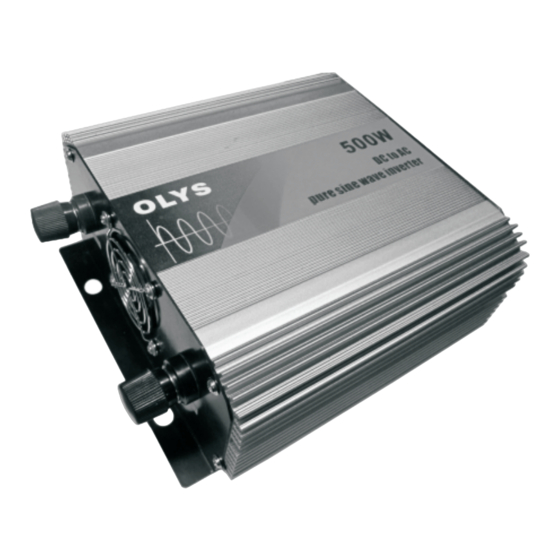

PURE SINE WIVE INVERTER
INVERTER INTEGRATE WITH CHARGE
USER MANUAL
。
unit:mm
Thank you very much for buying
thoroughly before using the product
Place where the inverter is to be installed
1.Out of reach of unauthorized persons,specially children.
In a dry place(max.95% humidity), and in any case with no
condensation.
Not directly on top of the batteries
No easily inflammable material should be placed directly
underneath or close to the GPI. ventilation must be free,and a space of
10cm. on each side is needed for good evacuation of the internal
heat
Connection
1. connecting the consumer devices
Once the consumer devices are connected,make sure that
they are turned off before connecting the battery
2 connecting the battery
● onnect the battery observing carefully the polarity。
c
● Connect the battery using the fillowing colours:
BLACK cable：negative pole（-）
RED cable：positive pole （+）
When connecting the battery,there is a spark(Danger of
explosion!),because of the charging of the internal
filtering capacitors.
A fire security fuse must be installed on the battery.
product. Please read
our
Advertisement
Related Manuals for OLYS GPI2012A
Summary of Contents for OLYS GPI2012A
- Page 1 PURE SINE WIVE INVERTER INVERTER INTEGRATE WITH CHARGE USER MANUAL Thank you very much for buying product. Please read thoroughly before using the product Function 1. I nductive load like refrigerator, washing machine, electric drill are well applicable. 2. stand-by comsumption only need 0.3W 3.
- Page 2 1. control and indicators LED2( LED1( B.L.O power Ther is a switch on the inverter to activate or deactivate it.Use this function to save the energy of the batteries when you are not using the inverter ： NOTE ON/OFF The solar charge controller remains in operation even when the inverter is off "functioning"indicator(green LED1) Illuminated: A 230v Voltage is present at the output,...
- Page 3 The state<activated> or <deactivated> of the functions is indicated by the buzzer with a continuous push on the on/off key after a duration given for each function as per the table below: single <beep> short=function activated Ÿ Double <beep> short = function deactivated Ÿ...
- Page 4 Battery lifetime Optime Cycling a battery in permanent charging mode from 0 to 30% is often a cause of early aging of batteries, particularly in solar home systems. In order to enhance the battery lifetime, the GPI inverter are equipped with a unique function that wil readjust the low voltage disconnection(LVD) threshold according to the behavior of the user consumption.
- Page 5 Pure sine wave inverter technical data MODEL G P I 2 0 1 2 A G P I 4 0 1 2 A G P I 6 0 2 4 A G P I 3 0 1 2 A G P I 5 0 1 2 A 1 2 V d c 1 2 V d c 1 2 V d c...
