Summary of Contents for SymCom PumpSaver Plus 235P

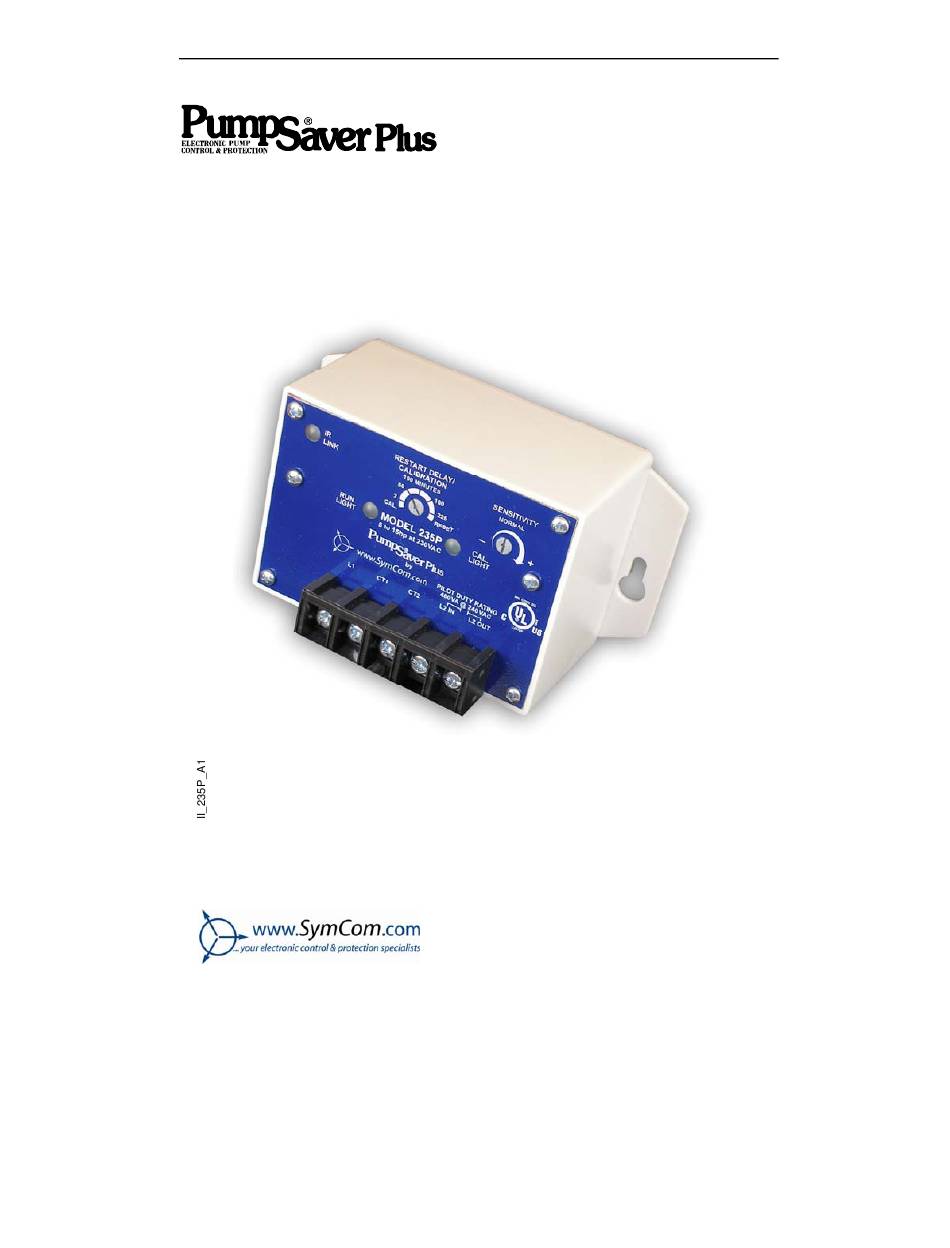

- Page 1 INSTALLATION Revision A1 INSTRUCTIONS Rapid City, SD, USA, 02/2009 MODEL 235P 2880 North Plaza Drive, Rapid City, South Dakota 57702 (800) 843-8848 · (605) 348-5580 · fax (605) 348-5685...
- Page 2 *** WARNING *** NO WARRANTY IF DEVICE IS NOT FIELD CALIBRATED © 2009 SymCom, Inc. All Rights Reserved...
- Page 3 TABLE 1: Current Transformer Selection Size Current 5-7 ½ HP 27.5 – 42.1 50:5 10 HP 75:5 15 HP 100:5 FIGURE NO.1: Typical Wiring Diagram © 2009 SymCom, Inc. All Rights Reserved...
- Page 4 © 2009 SymCom, Inc. All Rights Reserved...
-
Page 5: Operation
The PumpSaver Plus has an adjustment knob to set the underload trip sensitivity. Setting SENSITIVITY to the middle position (straight up) is equivalent to SymCom’s standard underload trip level. Adjust the SENSITIVITY knob to increase/decrease underload sensitivity up to approximately ®... - Page 6 4. Turn the SENSITIVITY knob to the right—the CAL. LIGHT will turn off, RUN LIGHT will turn on. 5. Turn the SENSITIVITY knob to the left—both lights will turn on. 6. Turn the SENSITIVITY knob right—left—right—left—right. 7. After 2 seconds, the CAL. and RUN LIGHTS will blink once. © 2009 SymCom, Inc. All Rights Reserved...
- Page 7 USING AN INFORMER ® PumpSaver Plus products are equipped with an infrared LED that will communicate to a SymCom Informer—a handheld, battery-operated, diagnostic tool. The Informer—when directed at the ® PumpSaver Plus—will display real-time voltage, current and power; dry-well and overcurrent trip points;...
-
Page 8: Diagnostic Indicator Table
(if used), or down on rapid cycling. Power must the CAL. the RUN check for a defective pressure be removed and reapplied to reset LIGHT LIGHT or float switch. the unit. © 2009 SymCom, Inc. All Rights Reserved... -
Page 9: Physical Dimensions
PHYSICAL DIMENSIONS 2.93" FRONT VIEW (74.42) .375" 4.05" (102.87) (9.53) 4.50" (114.30) 5.26" (133.60) 2.90" (73.66) BOTTOM VIEW 2.17" (55.12) © 2009 SymCom, Inc. All Rights Reserved... -
Page 10: Specifications
IEC 61000-4-5, Level 4, 4kV line-to-line and line-to- ground Safety Marks cUL Listed UL508, C22.2 No. 14 Dimensions 2.90” H x 5.26” W x 2.93” D Weight 14 oz. Mounting Methods #8 screws © 2009 SymCom, Inc. All Rights Reserved... - Page 11 NOTES For warranty information, please see Terms and Conditions at www.symcom.com © 2009 SymCom, Inc. All Rights Reserved...
- Page 12 Visit us at www.symcom.com to see our complete product listing! Can’t find what you’re looking for? SymCom designs and manufactures custom control boards too. Call us for details! © 2009 SymCom, Inc. All Rights Reserved...
