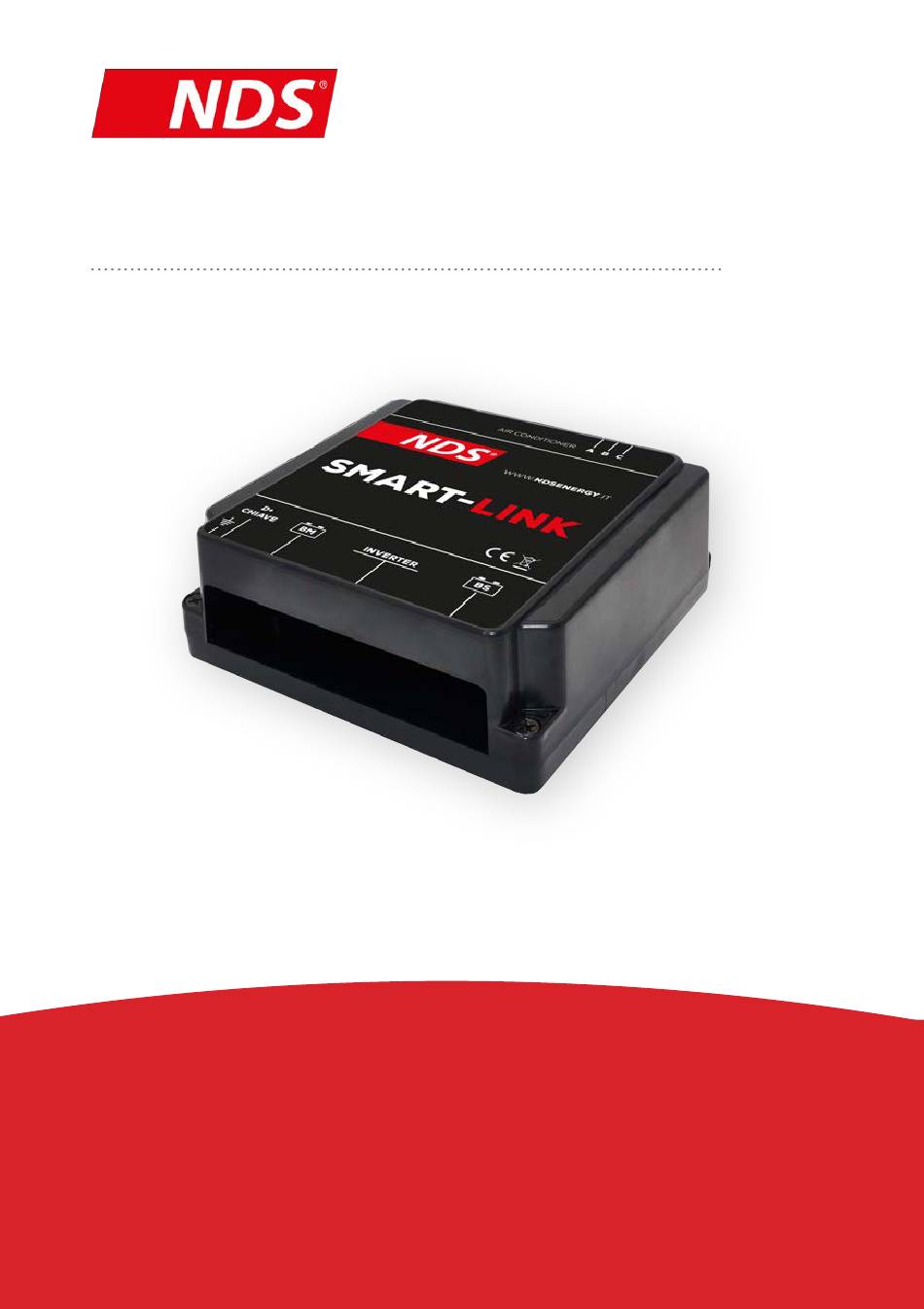

- Page 1 SMART-LINK User Manual ENGLISH VALID FOR THE FOLLOWING MODELS SL 12-100...
- Page 2 INSTRUCTIONS FOR THE PROPER DISPOSAL This electronic product is subject to the European Directive 2012/19 / EU. Comply with local waste disposal regulations, do not dispose of old products with normal household waste. The proper disposal of products that can no longer be used prevents potential negative consequences for the environment and for the population.
-
Page 3: Table Of Contents
INDEX 1. Safety instructions 2. Package contents 3. DESCRIPTION 4. operations 5. installation 6. connections 7. Connector cabling 8. wiring diagrams 9. Technical features 10.F.A.Q. 11. warranty... -
Page 4: Safety Instructions
• The information contained in this manual may be changed without notice. NDS Energy s.r.l. reserves the right to make changes and improvements to the product at any time without notice and without obligation to apply these changes to the devices previously distributed. -
Page 5: Package Contents
characteristics of the product, differing in color, size or accessories. 2. PACKAGE CONTENTS Check the contents of the package: • N°1 SMART-LINK • N° 1 Three-pole connector for the air conditioning management • N°1 selection jumper (for 8 or 9 connector) •... -
Page 6: Operations
MAIN FEATURES • H e a v y d u t y A u t o m a t i c 1 2 V p o w e r s u p p l y management. • Dedicated switch for the air conditioners compressor ON-OFF management, for air conditioners equipped with Economy function (e.g. - Page 7 conditioning unit is switched off via the relay on the control connector. If the voltage is restored to normal (after about 1 minute) the compressor is reactivated. If even in this condition the alternator fails to meet all energy requirements, the power supply of the inverter is switched to the leisure battery.
-
Page 8: Installation
5. INSTALLATION Unscrew the two clamping screws located at the bottom-front area of the SMART-LINK case (Fig.1). Turn the plastic shell upwards until the interlocking flaps on the opposite side are released. Fig.1 Place SMART-LINK on the chosen support. Fix the device using the eyelets visible on the inside of the body with the screws provided or equivalent (Fig.2). - Page 9 Unscrew and remove the three M6 nuts from the front connection screws and make the electrical connections as follows (Fig.3): Pin 3: Starting battery positive pole Pin 4: Inverter Positive Pin 5: Leisure battery positive pole Fasten the three cable lugs securely to the connection screws by tightening the supplied nuts.
- Page 10 If the vehicle's alternator is a Smart Alternator - Euro 6, it is necessary to place the jumper (supplied) on connector 8 or connector 9. If the alternator is a traditional alternator (not Smart Alternator) leave the two connectors 8 and 9 free. Fig.4 Replace the plastic shell in place and tighten the clamping screws to close the device.
-
Page 11: Connections
Leisure Battery negative pole D+ signal Starting Battery positive pole Inverter (appliances) positive connection Leisure Battery positive pole BACK VIEW Fig.6 FUNCTION Air conditioner Economy connector (Pin: C,B,A) NDS setup connection (don’t use) Smart Alternator Setup connector Smart Alternator Setup connector... -
Page 12: Connector Cabling
C - Normally closed C B A The management of the air conditioner requires only two of the three contacts on the green three-pin NDS connector. The following table shows which connections to activate on the green connector provided by NDS, depending on the model of air conditioner on board. -
Page 13: Wiring Diagrams
8. WIRING DIAGRAMS... -
Page 14: Technical Features
9. TECHNICAL FEATURES SMART-LINK Voltage supply 12V (10V - 16V) Relay maximum current 100A Operating mode Automatic Air conditioner connector maximum current Self-consumption Working temperature -15°C / +65°C Size 125x123x46mm Weight 352g VEHICLE WITH TRADITIONAL ALTERNATOR Starter battery switch threshold D+ active and Starter Battery >... -
Page 15: F.a.q
Can I connect a 2000W inverter to an appliance with a constant power consumption of 1800W? • Is Smart-Link compatible with other NDS devices? Yes Smart-Link is compatible with all NDS devices. • My vehicle is Euro6 with Smart Alternator, should I change some settings? - Page 16 UE DECLARATION OF CONFORMITY Company: NDS Energy s.r.l. Address: via Giovanni Pascoli 65010 - Cappelle sul Tavo (PE) Italy Declare under our sole responsibility that the product: Commercial Name: SMART-LINK Model code: SL 12-100 to which this declaration applies complies with the provisions of...
-
Page 17: Warranty
11. WARRANTY... - Page 20 0043_MANS_SmartL_GB02 NDS ENERGY s.r.l. Via Pascoli, 96/98 65010 Cappelle sul Tavo (Pe) Italy Tel.:+39 085 4470396 web: www.ndsenergy.it email: customer@ndsenergy.it LIKE US: facebook.com/ndsenergysrl...
