CU-124
May 23, 2022
HEP-2
HEP-2-Zxxxx
Portable High-Energy Hand-Held Igniter
(Battery Powered)
OPERATING MANUAL

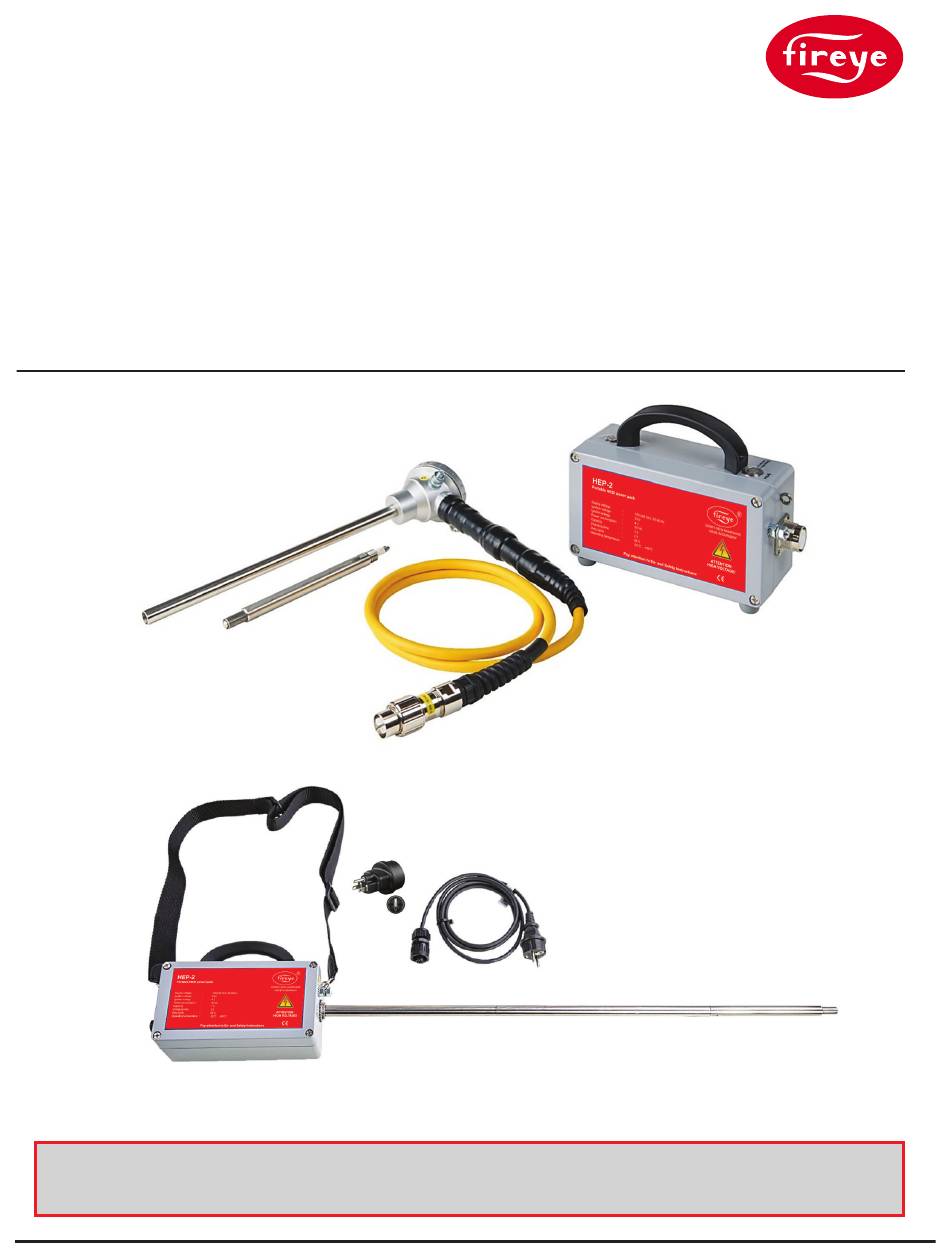

HEP-2 with flexible cable in front of the ignition electrode and short ignition tip HE-S
HEP-2-Zxxxx with fixed ignition electrode and screwed-on ignition tip HE-S
The operating instructions must be read carefully before installation, commissioning and maintenance.
Instructions must be observed and the operating manual must be kept for later use!
© 2022 Carrier
1
Advertisement
Table of Contents
Related Manuals for Fireye HEP-2-Z Series
Summary of Contents for Fireye HEP-2-Z Series
- Page 1 CU-124 May 23, 2022 HEP-2 HEP-2-Zxxxx Portable High-Energy Hand-Held Igniter (Battery Powered) OPERATING MANUAL HEP-2 with flexible cable in front of the ignition electrode and short ignition tip HE-S HEP-2-Zxxxx with fixed ignition electrode and screwed-on ignition tip HE-S The operating instructions must be read carefully before installation, commissioning and maintenance. Instructions must be observed and the operating manual must be kept for later use! ©...
- Page 2 Revision Status: A Last Update The texts and illustrations have been prepared with the greatest care. Fireye (and the authors) cannot accept any legal or any other liability for possibly remaining, incorrect or incomplete information and their consequences. Without prior written permission of Fireye, the documentation or parts thereof may not be reproduced, copied or lent or passed on to third parties.
-
Page 3: Safety Instructions And Protective Measures
SAFETY INSTRUCTIONS AND PROTECTIVE MEASURES Safety during operation and use: Improper handling can lead to considerable personal injury and damage to property. Work on the portable high-energy hand-held ignition device may only be carried out by appropriately trained operating personnel or a qualified electrician. Operator is a person who is responsible for installing, operating, setting up, maintaining, cleaning, repairing or transporting equipment and machines so that they can recognize and avoid hazards. -
Page 4: Table Of Contents
TABLE OF CONTENTS Safety instructions and protective measures ........................3 Limitations of liability ................................3 Image directory ...................................4 General ....................................5 Description ..................................5 Necessary components for a complete system ........................6 Assembly Instructions ................................7 Applications ..................................9 Loading process ................................10 Replacing the batteries ..............................11 Technical specifications ..............................12 Accessories and spare parts ..............................13 Warranty ...................................14 Liability ....................................14... -
Page 5: General
GENERAL The operating instructions must be read carefully before commissioning. The device generates a life-threatening voltage of 2kV. Failure to do so may result in personal injury and/or mechanical destruction. DESCRIPTION The portable high-energy hand-held ignition device consists of electronics, a 2kV ignition generator and an integrated battery charger. -
Page 6: Necessary Components For A Complete System
Please note that the red high voltage cable is shortened to the required length in the junction box only after all components have been assembled. NOTICE: Due to the pre-assembled high-voltage cable, the electrode length is usually 3 m and can be longer if required. In this case, please contact Fireye. © 2022 Carrier... -
Page 7: Assembly Instructions
ASSEMBLY INSTRUCTIONS If the optionally available extension tubes are used, the extension tube is first screwed into the thread of the junction box. Then the cover of the junction box is unscrewed. The red high-voltage cable from the ignition tip adapter is pulled through the extension tubes into the junction box. -
Page 8: Individual Components Hep-2-Zxxxx With Fixed Ignition Electrode
INDIVIDUAL COMPONENTS HEP-2-Zxxx WITH FIXED IGNITION ELECTRODE See bottom of page 12 for further details. HEP-2-Zxxxx - Portable high-energy hand-held ignitor with mains cable and carrying strap HE-S / HE-L - Ignition tip short / long (to be selected depending on the required overall length) HEP--Zxxxx HEP-GRIP (Optional) HE-L... -
Page 9: Applications
APPLICATION Caution! Hot Surface Possible! Danger of burns: The ignition rod may be hot after being pulled out of the combustion chamber and also after ignition has taken place - wear protective gloves. Before commissioning, potential equalization should be carried out between the grounding bolt on the housing and the front panel of the burner, for example with the optionally available potential equalization line (at least 4 mm²... -
Page 10: Loading Process
LOADING PROCESS ATTENTION! Before each charging process, the connection cable and the plug connection must be checked for damage. A defective charging cable must not be used and must be replaced. If any damage is detected, the device must be sent to the manufacturer for repair The rechargeable battery (three individual cells) of the hand-held ignition device is charged via the supplied mains cable. -
Page 11: Replacing The Batteries
BATTERY REPLACEMENT The batteries may only be replaced by a qualified electrician. WARNING: ATTENTION HIGH VOLTAGE! Before opening the ignition unit, it is absolutely necessary to disconnect the main connection and secure it against being switched on again. Check whether the power switch is switched off (signal dark). (background LED off). -
Page 12: Technical Specifications
TECHNICAL DATA Ignition Voltage: Ignition frequency: 3 sparks/sec Ignition energy: 4 J / spark Maximum ignition duration: 180 s (ED 30%) Max. current consumption during charging: 1.0 A Supply voltage: 100 - 240 V, 50/60 Hz (For charging the batteries) Operational availability: approx. -
Page 13: Accessories And Spare Parts
ACCESSORIES AND SPARE PARTS - Order no.: HEP-2-PP Portable Battery Igniter - Order no.: HE-SSR-0.0 Ignition Cable - Order no.: HEP-SR Spacer Ring with 16.5mm inner diameter and Allen screw for locking - Order no.: HEP-2-GRIP Grip Handle - Order no.: HEP-BP The set consists of three flat-top Li-Ion single batteries 3.7V, 3000 mAh . -
Page 14: Warranty
Fireye shall be limited exclusively to the right to replacement or repair as above provided. In no event shall Fireye be liable for consequential or special damages of any nature that may arise in connection with such product or part.
