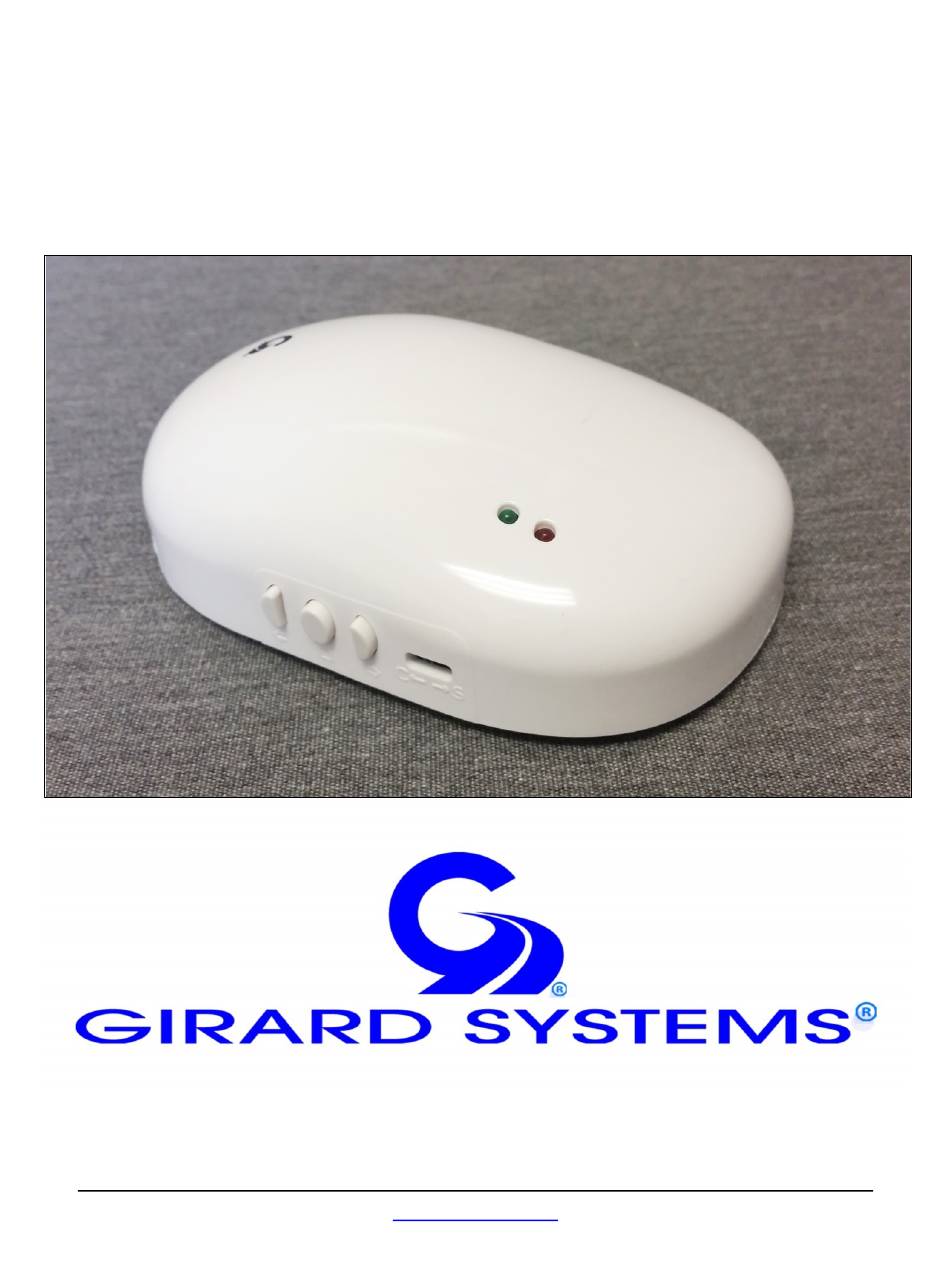

- Page 1 AC MOTOR CONTROLLER GC154 INSTALLATION MANUAL REV.12302015 RV AWNING PRODUCTS 1361 CALLE AVANZADO, SAN CLEMENTE, CA 92673 (800) 382-8442 FAX (949)276-5500 www.girardrv.com...
- Page 2 Shore Power – if connected; Generator Power – if the generator is running; Inverter Power – batteries must be charged for inverter operation. Girard Systems awnings are supplied with an electric motor appropriate to the product. Page 2 of 12...
-
Page 3: Table Of Contents
PRODUCT DESCRIPTION The G – Link GC154 is a single awning motor control unit that can be remotely operated with a G-link paired remote handset or switch from a distance of up to 500ft. in open air and up to 100ft in the presence of obstructions. The operating frequency is 433.92MHZ. - Page 4 The GC154 may be operated by use of the UP/STOP/DOWN buttons on the side of the unit (Fig. 1). The direction of travel of the motor can be reversed by using the Reverse switch as indicated in (Fig. 2). STOP Fig.1...
- Page 5 The 110v Motor control Wiring harness is plugged into the large rectangular port shown below. The G-Link GC154 can be connected to the vehicle’s Dry Contact System ( Crestron, Silverleaf etc.) using the ribbon type wiring harness shown in the pictures below.
-
Page 6: Installation
Dry contact connections to RV system The GC154 will receive the command to extend, stop or retract from the Vehicles smart control system which is sent to the connected awning through the motor control wiring harness. Specifications Power: 110VAC / 60Hz... - Page 7 Page 7 of 12...
-
Page 8: Setup And Programming
1. Selection of “Continuous” or “Step” mode. a. Supply power to the GC154. b. Simultaneously press the STOP and RIGHT button of the GC154 for at least 6 seconds: The Green LED will first illuminate and then blink a few times. When... -
Page 9: Programming To A Motion Sensor
PROGRAMMING TO A MOTION SENSOR First the Motion sensor will need to be prepared for programming by carrying out the following procedure. Remove the 2 small Phillips screws which secure the motion sensor to the mounting bracket. The base of the module is magnetized so will need to be gently lifted... - Page 10 Remove the 4 Phillips Base Plate Magnet screws holding the module together. Remove the base plate and silicone insert. Insert Fig.3 Turn the base plate over (Magnet down). Reed Switch Then place the motion sensor on top of it so that the magnet is aligned with the reed switch.
- Page 11 Using a small screwdriver or the end of a paper clip press the Program Button on the GC154 Motor Controller. (see fig 9) The Green LED on the Motor Controller will begin to flash.
-
Page 12: Programming To An Anemometer
4) Press the up button on the Anemometer to retract the awning or physically activate it by spinning the cups. For queries or assistance with programming any of your G-Link devices please call Girard Systems TOLL FREE on 800–382–8442 between 7:30am and 3:30pm P.S.T. Page 12 of 12...
