OPERATING INSTRUCTIONS AND SPARE PARTS
P.O. Box 1673
Bedfordview
2008
Manufacturers of Industrial Lawnmowers, Scarifiers & Sodcutters

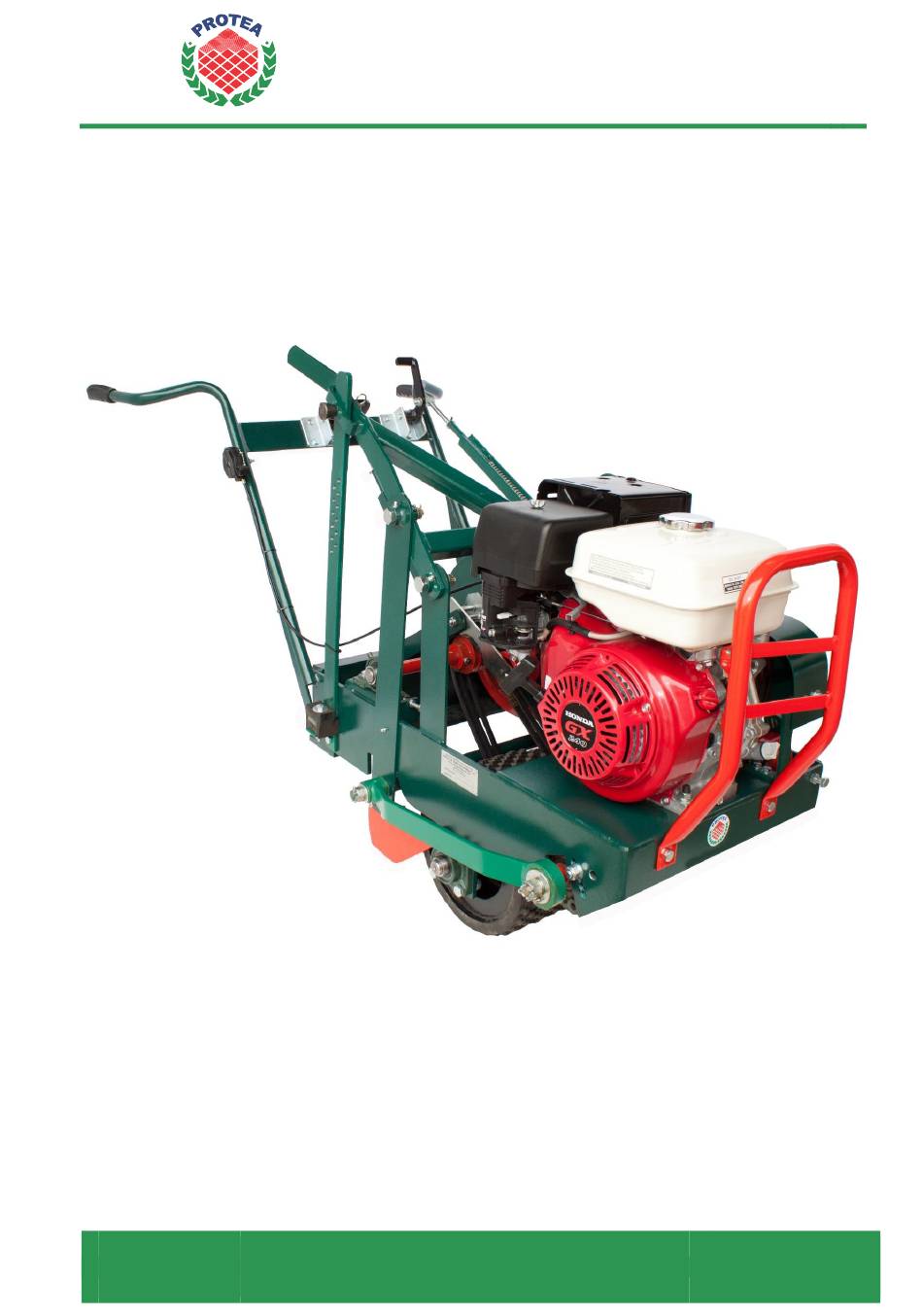

PROTEA SOD CUTTER
MODEL 460
MANUAL
www.proteamachines.com
PROTEA TURF EQUIPMENT
Reg. No. CK 1989/023716/23
Vat Reg. No. 4830119907
32 Shaft Rd
Knights, Germiston
Tel: +2711 828 9935

Advertisement

loading
Need help?

Need help?

Do you have a question about the 460 and is the answer not in the manual?

Questions and answers

Related Manuals for PROTEA 460

Summary of Contents for PROTEA 460

  • Page 1 PROTEA TURF EQUIPMENT Manufacturers of Industrial Lawnmowers, Scarifiers & Sodcutters Reg. No. CK 1989/023716/23 Vat Reg. No. 4830119907 PROTEA SOD CUTTER MODEL 460 OPERATING INSTRUCTIONS AND SPARE PARTS MANUAL P.O. Box 1673 32 Shaft Rd Bedfordview www.proteamachines.com Knights, Germiston 2008...

  • Page 2: Contact Details

    +2782 458 7257 Postal Address Physical Address P.O. Box 1673 32 Shaft Road Bedfordview Knights 2008 Germiston Gauteng Gauteng South Africa South Africa Email: spares@proturf.co.za Email: sales@proturf.co.za Email: sean@proturf.co.za For further information on any Protea products, please visit our website www.proteamachines.com...
  • Page 3 LAWNMOWER SAFETY PRECAUTIONS 1. Know your controls. Read the owner's manual 13. Stop the engine whenever you leave the carefully. Learn how to stop engine quickly in the mower unattended, even for a moment. event of an emergency. 14. Stop the engine before pushing the mower 2.

  • Page 4: Specifications

    SODCUTTER MODEL 460 TO OPERATE TURF CUTTER AND ATTACHMENTS Start motor by using choke and throttle lever. Lift Sodcutter by the handle and adjust depth of cut. Have motor running about 2000 revolutions per minute. Engage cutter bar so that is oscillates, then engage drive wheels, and lower Sodcutter slowly on to the grass.

  • Page 5: Spare Parts

    SPARE PARTS...
  • Page 6 FIGURE 1: FRONT WHEEL ASSEMBLY PAGE 1...
  • Page 7 REFER FIG. 1 ILLUS. NO DESCRIPTION PART NO FRONT WHEEL (EACH) 120340 M10x20 GRUB SCREW + M10 NUT STANDARD FRONT WHEEL PULLEY (COMES WITH TAPER LOCK) 120155 FRONT WHEEL BEARING 120446 M12x40 SET SCREW + M12 SPRING WASHER + M12 NYLOC NUT STANDARD M30 FRONT WHEEL SPRING WASHER STANDARD...
  • Page 8 FIGURE 2: MAIN FRAME ASSEMBLY PAGE 3...
  • Page 9 REFER FIG. 2 ILLUS. NO DESCRIPTION PART NO HONDA GX240HX - 6:1 REDUCTION 6200500H KOHLER CH395 - 6:1 REDUCTION 6200500K ENGINE PULLEY: HONDA 120151 ENGINE PULLEY: KOHLER 120150 THROTTLE CABLE 656720 M8x25 ENGINE PULLEY GRUB SCREW (NOT SHOWN) STANDARD ENGINE PULLEY KEY (NOT SHOWN) 120516 ENGINE PULLEY CAP &...
  • Page 10 FIGURE 3: COUNTERSHAFT ASSEMBLY PAGE 5...
  • Page 11 REFER FIG. 3 ILLUS. NO DESCRIPTION PART NO COUNTERSHAFT 120331 COUNTERSHAFT PULLEY: 3 GROOVES (COMES WITH GRUB SCREWS) 120330 COUNTERSHAFT PULLEY: 1 GROOVE (COMES WITH TAPERLOCK) 120332 "V" BELT - COUNTERSHAFT (1 PER MACHINE) 3602040 COUNTERSHAFT BEARINGS 1125550 M12 SPRING WASHER STANDARD M12x40 SET SCREW STANDARD...
  • Page 12 FIGURE 4: HEIGHT ADJUSTER LEVER ASSEMBLY PAGE 7...
  • Page 13 REFER FIG. 4 ILLUS. NO DESCRIPTION PART NO HEIGHT ADJUSTER LEVER 120020 BELT TENSIONER LEVER 120152 HEIGHT ADJUSTER ARM 120201 HEIGHT ADJUSTER LEVER PIVOT BOLT 120212 PIVOT SLEEVE 120211 M10 CASTLE NUT 2641303 HEIGHT ADJUSTER CLIP 120203 HEIGHT ADJUSTMENT PIN 120202 HEIGHT ADJUSTER RUBBERS (SET) 120510...
  • Page 14 FIGURE 5: CONROD AND CAMSHAFT ASSEMBLY PAGE 9...

  • Page 15: Camshaft Assy

    REFER FIG. 5 ILLUS. NO DESCRIPTION PART NO CONROD ASSY (C/W BEARING (1124440) & BRONZE BUSH (120223)) 120220 CAMSHAFT ASSY 120200 CAMSHAFT "V" BELTS - STANDARD (3 PER MACHINE) 3602060 CAMSHAFT TRUEBLUE "V" BELTS - HEAVY DUTY (3 PER MACHINE) 3602061 CONROD SWIVEL BEARING 1124440...
  • Page 16 FIGURE 6: BELT TENSIONERS PAGE 11...
  • Page 17 REFER FIG. 6 ILLUS. NO DESCRIPTION PART NO ENGINE PULLEY TENSIONER COMPLETE ASSEMBLY (LONG) 120181 ENGINE PULLEY TENSIONER SPRING 120560 SPRING ROD 120179 1/8" x 1" SELLOCK PIN STANDARD FRONT WHEEL PULLEY TENSIONER COMPLETE ASSEMBLY (SHORT) 120180 TENSIONER WASHER 120575 FRONT WHEEL PULLEY TENSIONER SPRING 120562 6304 JOCKEY PULLEY BEARING...
