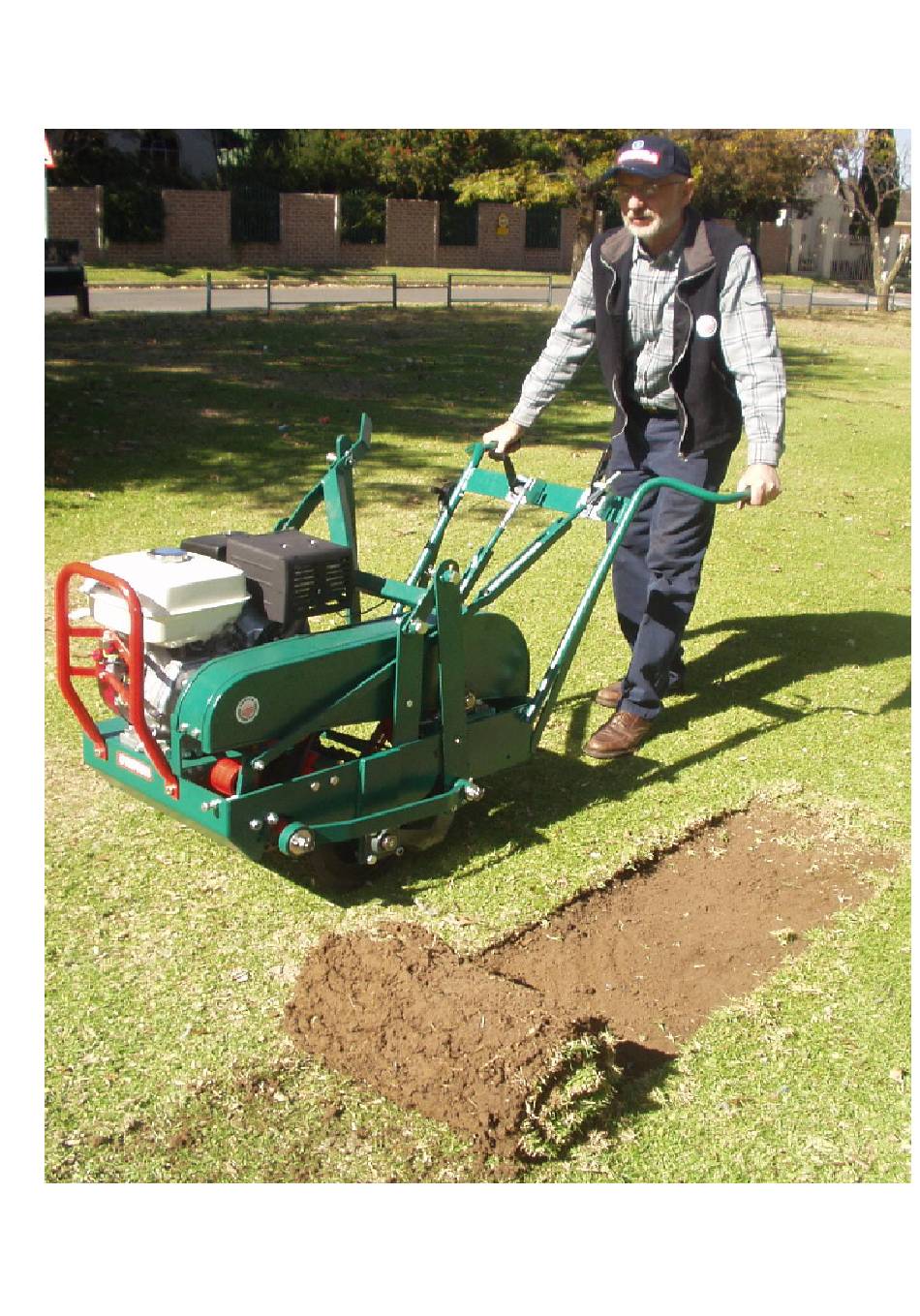

- Page 1 PROTEA SODCUTTER MODEL 460 OPERATING INSTRUCTIONS & SPARES MANUAL...
-
Page 2: Contact Details
Fax: 011 828 6869 Mobile: 082 458 7257 Postal Address Physical Address P.O.BOX 1673 32 Shaft Road BEDFORDVIEW Knights 2008 GAUTENG Germiston SOUTH AFRICA Gauteng South Africa Email: sales@proturf.co.za Email: sean@proturf.co.za For further information on any Protea products, please visit our website www.proturf.co.za... - Page 3 POWER LAWNMOWER SAFETY PRECAUTIONS Know your controls. Read the owner's manual 13 Stop the engine whenever you leave the carefully. Learn how to stop engine quickly in an mower, even for a moment. emergency. 14 Stop the engine before pushing mower Make sure the lawn is clear of sticks, stones, across gravel drives, walks or roads.
-
Page 4: Specifications
SODCUTTER MODEL 460 TO OPERATE TURF CUTTER AND ATTACHMENTS Start motor by using choke and throttle lever. Lift Sodcutter by the handle and adjust depth of cut. Have motor running about 2000 revolutions per minute. Engage cutter bar so that is oscillates, then engage drive wheels, and lower Sodcutter slowly on to the grass. -
Page 5: Spare Parts
SPARE PARTS... -
Page 6: Front Wheel Assembly
FRONT WHEEL ASSEMBLY PAGE 1... - Page 7 FRONT WHEEL ASSY. NO DESCRIPTIONS PART NUMBER FRONT WHEEL SOD/ 120340 2 off SQUARE HEAD SCREW BG/ 3162322 2 off FRONT WHEEL PULLEY SOD/ 120155 1 off FRONT WHEEL BEARING SOD/ 120446 2 off HEX BOLT & NUT M12 x 40 8 off FRONT WHEEL PULLEY TAPER LOCK SOD/ 120595...
- Page 8 MAIN FRAME ASSEMBLY PAGE 3...
-
Page 9: Main Frame Assembly
MAIN FRAME ASSEMBLY DESCRIPTIONS PART NUMBER HONDA GX240 HX 8HP SOD/ 6200500 1 off - 6:1 REDUCTION ENGINE PULLEY SOD/ 120151 1 off THROTTLE CABLE HD/ 656720 1 off ENGINE PULLEY M8 x 12 GRUB SCREW 1 off ENGINE PULLEY KEY: SOD/ 120516 1 off NOT SHOWN... -
Page 10: Countershaft Assembly
COUNTERSHAFT ASSEMBLY PAGE 5... - Page 11 COUNTERSHAFT ASSEMBLY DESCRIPTIONS PART NUMBER COUNTER SHAFT SOD/ 120331 1 off C/SHAFT PULLEY: 3 GROOVES c/w Grubscrew SOD/ 120330 1 off C/SHAFT PULLEY: 1 SOD/ 120332 1 off GROOVE C/SHAFT/ENGINE "V" BELTS SOD/ 3602040 1 off C/SHAFT BEARINGS SOD/ 1125550 2 off HEX BOLT M12 x 40...
- Page 12 HEIGHT ADJUSTER LEVER ASSEMBLY PAGE 7...
- Page 13 HEIGHT ADJUSTER LEVER ASSY. DESCRIPTIONS PART NUMBER HEIGHT ADJUSTER LEVER SOD/ 120020 1 off BELT TENSIONER LEVER New type from 16/3/2015 SOD/ 120152 2 off HEIGHT ADJUSTER ARM SOD/ 120201 1 off CUTTER HANDLE PIVOT BOLT SOD/ 120212 4 off PIVOT SLEEVE SOD/ 120211 4 off...
- Page 14 CONROD AND CAMSHAFT ASSEMBLY PAGE 9...
- Page 15 CONROD & CAMSHAFT ASSY. DESCRIPTIONS PART NUMBER CONROD ASSY.- C/BEARING SOD/ 120220 2 off CAMSHAFT ASSY. SOD/ 120200 1 off CAMSHAFT "V" BELTS SOD/ 3602060 3 off CONROD BEARING SOD/ 112440 2 off HEX BOLT (FLAT HEAD) M12 x 40 1 off CONROD BRONZE BUSH SOD/ 120223...
-
Page 16: Belt Tensioners
BELT TENSIONERS PAGE 11... - Page 17 BELT TENSIONERS DESCRIPTIONS PART NUMBER ENGINE PULLEY TENSIONER ASSY SOD/ 120181 1 off ENGINE PULLEY TENSIONER SPRING SOD/ 120560 1 off SPRING ROD SOD/ 120179 2 off M5 x 20 SELLOCK PIN 1 off FRONT WHEEL PULLEY TENSIONER ASSY SOD/ 120180 1 off TENSIONER WASHER SOD/ 120575...
