Summary of Contents for SPT Labtech apricot S1

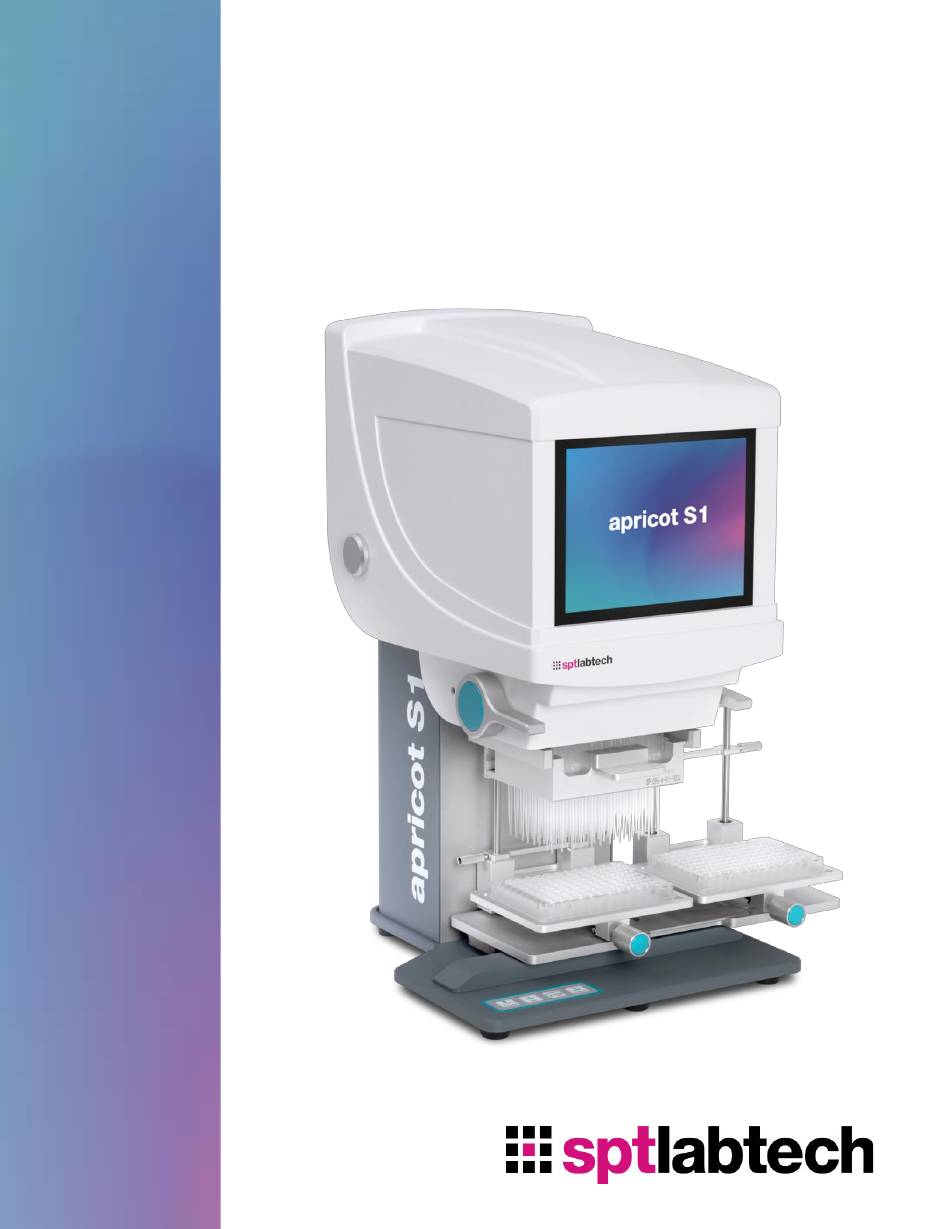

- Page 1 S1 user guide...
- Page 2 © 2021 SPT Labtech Ltd Notes:...
- Page 3 Our ongoing commitment is to help you get the best results, so we designed and manufactured this instrument with you in mind. With the apricot S1, access to the pipetting core is quick and easy for greater flexibility in pipettor operation. Just determine the pipetting configuration that best matches the applications you want to perform.
-
Page 4: Table Of Contents
Table of Contents 1. SPECIFICATIONS ..................4 Safety Precautions ......................5 Inspection and Set-Up ...................... 6 Moving the apricot S1 ....................... 7 Software Specs and Requirements .................. 8 2. FEATURES ..................... 9 Applications ........................10 Core, Tip & Head Compatibility ..................11 Pipettor + Head + Tips = Repeatable Results .............. -
Page 5: Specifications
© 2021 SPT Labtech Ltd 1. Specifications The following is a list of the ideal operating parameters for the S-Pipette. This instrument will perform optimally and safely under standard laboratory settings. The use of this instrument in other environments is not recommended, and results may prove unsatisfactory. -
Page 6: Safety Precautions
© 2021 SPT Labtech Ltd 1.1 Safety Precautions The apricot S1 is designed and engineered with your safety in mind. However, failure to adhere to proper care, maintenance, and operation of the instrument may lead to poor experimental results, reduced equipment life, and the possibility of injury to the operator. -
Page 7: Inspection And Set-Up
© 2021 SPT Labtech Ltd 1.2 – Inspection and Set-Up Care should be exercised when unpacking the crate. o Inspect the instrument for any visible damage that may have occurred during shipping. DO NOT PLUG IN OR TURN ON THE SYSTEM Contact SPT Labtech immediately –... -
Page 8: Moving The Apricot S1
© 2021 SPT Labtech Ltd 1.3 – Moving the apricot S1 Keep your back straight and lift with your legs to avoid possible injury. The instrument is quite heavy, so several people are required to move it. Lift the S-Pipettor unit by the base plate of the instrument. -
Page 9: Software Specs And Requirements
© 2021 SPT Labtech Ltd 1.4 – Software Specs and Requirements System Requirements o Android System o Display Requirement: Change display size to 100% ratio Inspect the instrument for any visible damage that may have occurred during shipping. sptlabtech.com/support... -
Page 10: Features
© 2021 SPT Labtech Ltd 2. Features... -
Page 11: Applications
© 2021 SPT Labtech Ltd 2.1 – Applications o Plate replication o Plate reformatting o Reagent addition o Compound addition o Serial dilution by column o Inspect the instrument for any visible damage that may have occurred during shipping. sptlabtech.com/support... -
Page 12: Core, Tip & Head Compatibility
Tips are available in Non-Sterile (NS), Sterile (S), and Filter Sterile (FS). Please see the matrix below for complete Core/Head/Tip compatibility. The part numbers listed are for your convenience in ordering. *Please contact your SPT Labtech Sales Representative or email apricotsupport@sptlabtech.com for assistance. -
Page 13: Pipettor + Head + Tips = Repeatable Results
© 2021 SPT Labtech Ltd 2.3 – Pipettor + Head + Tips = Repeatable Results The S Pipettor, pipetting head, and tips in a variety of volumes is a triad that works together to help you get the best results. -
Page 14: Adjustable Plate Elevators
© 2021 SPT Labtech Ltd 2.5 – Adjustable Plate Elevators 2, 3 or 4 Plate Elevators available for individual sampling using multiple plates and a variety of liquid handling labware. 2.6 – Adjustable Split-Level Shuttles Additional flexibility and even greater sampling control – 2, 3 or 4... -
Page 15: Accessing The Pipetting Core
Set Hood Support 2.8 – Loading a 96 or 384 Channel Core Determine the pipetting configuration that best matches your application. Load a 96 or 384 channel core into the apricot S1. Release Fasteners Lift Out the Core Exchange Channel Core... -
Page 16: Operation Overview
© 2021 SPT Labtech Ltd 3. Operation Overview Care should be exercised when unpacking the crate. o Inspect the instrument for any visible damage that may have occurred during shipping. Power on S-Pipette S-Pipette Initialization Wait for Software to Start... -
Page 17: Main Screen Overview
© 2021 SPT Labtech Ltd 4. Main Screen Overview 4.1 – Pipettor Control Interfaces Pipettor control is at your fingertips. No external computer needed. Intuitive Touch Screen Quick Access Keys See more detail on page 21 sptlabtech.com/support... -
Page 18: Touch Screen (User Interface)
© 2021 SPT Labtech Ltd 4.2 – Touch Screen (User Interface) o S-Pipette software automatically loads when you power up the instrument. o Wait for the initialization cycle to finish (the flashing lights will stop) and then enter the desired maximum tip volume. - Page 19 © 2021 SPT Labtech Ltd New window tab. Change the values of Plunger Calibration/Maximum Volume/Overshoot Volume/ Plunger 6 Settings Pause Time/select Recorded Files (Record Action 1–5)/re- establish Default settings/Change Plunger Block function. 7 Hood Open Label indicates that the hood is open.
-
Page 20: Settings Screen
© 2021 SPT Labtech Ltd 4.3 Settings Screen Default and user defined values. Tap/Hold to change values Max Volume: User defined maximum aspirate volume. Overshoot: Default overshoot value: 3μL; Maximum value is 48μL. Assign the plunger pause time (seconds) according to user requirements. -
Page 21: Quick Access Keys (User Interface)
© 2021 SPT Labtech Ltd 4.4 Quick Access Keys (User Interface) Default and user defined values. Tap/Hold to change values S-Pipette software automatically loads when you power up the instrument and the lights of the Quick Access Keys will flash. -
Page 22: Care And Maintenance
Caution: mineral oil only. Other types of lubrication may be detrimental to the gasket material and prevent a reliable seal. Yearly maintenance is recommended. Proper maintenance helps ensure the accuracy and performance of your apricot S1. -
Page 23: Troubleshooting
© 2021 SPT Labtech Ltd 6. Troubleshooting System not responding? Problem: Sometimes even an innovative multi-channel liquid handling system encounters an operating error and won’t respond. But, re-establishing a connection is easy. Solution: Make sure there is no fluid in the tips then restart then instrument. -
Page 24: Technical Support Contact Information
SPT Labtech products are renowned for their industry-leading reliability and efficiency. With our reliance service, you have access to a dedicated support team to safeguard your investment and secure your productivity.
