SKD Rhone2 User Manual

Power control switch
Hide thumbs Also See for Rhone2:
Table of Contents

Advertisement

Quick Links

Download this manual
Product name
Function
Article
EAN
Description
Features

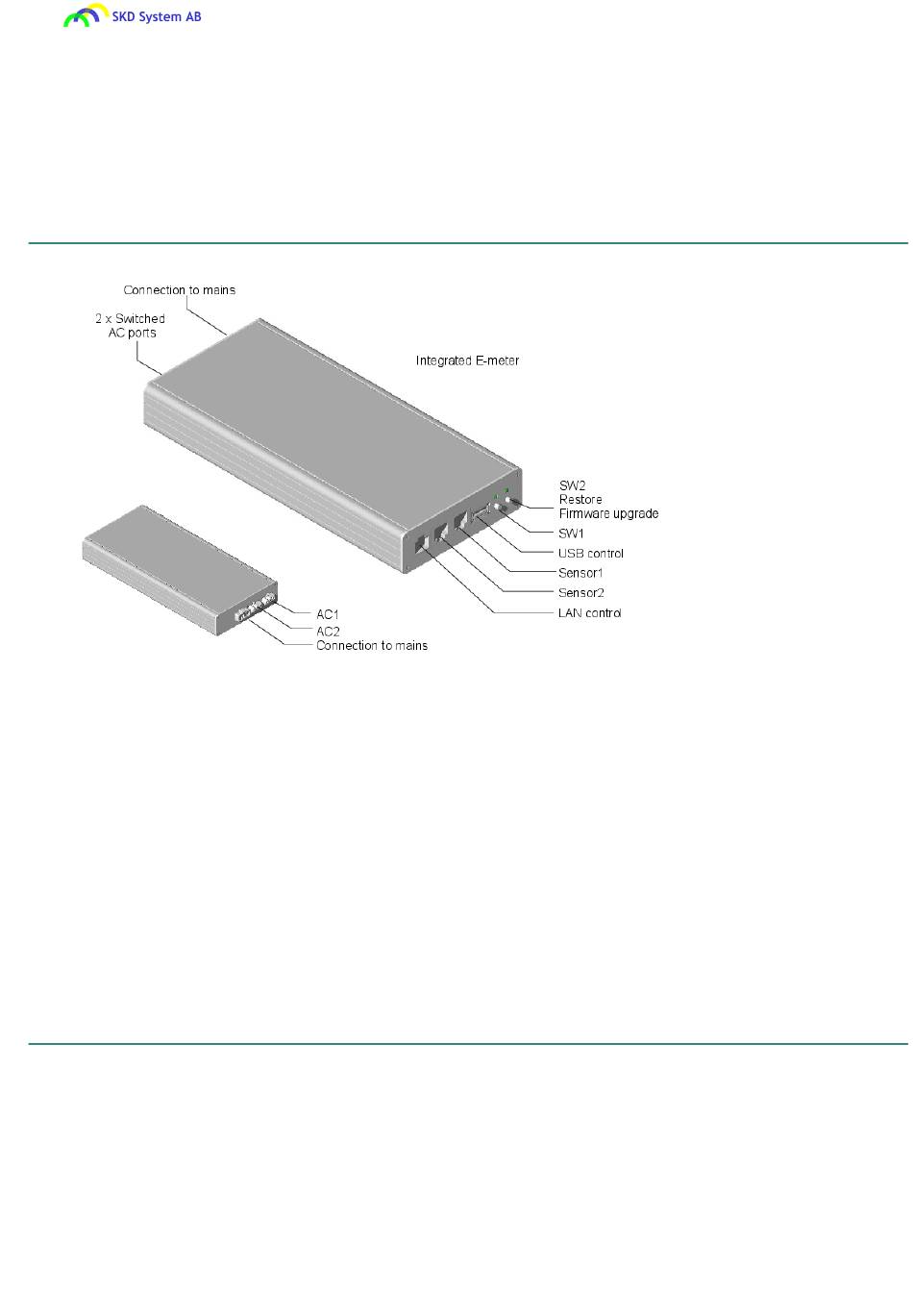

AC switch, 16A, high inrush
E meter, Measurement of current, range 0.016 to 16 Ampere, and power, range 4 to 3700 Watt)
Presence sensor interface
LAN control, HTTP, TCP
USB control, Android
Wieland mini male connector, connection to mains
Wieland mini female connectors, connection of electric equipment
WiFi control from Android device via LAN
Software controlled fuse in addition to physical fuse
Dimensions
L220 W100 H30mm
Applications
Application
The product is designed for applications where there is a need for switched electric power distribution. Two primary applications: Power
distribution on workplace and Switching of power to electric equipment.
Power control on workplace
Switching of power to power distribution lists and electrical equipment on workplace. One unit can serve one or two workplaces. Control
via LAN, by sensors, via USB.
Rhone2
Power Control Switch
M3107-1221-B
3830062480017
1
User manual
Generated 2015-07-06

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rhone2 and is the answer not in the manual?

Questions and answers

Related Manuals for SKD Rhone2

Summary of Contents for SKD Rhone2

  • Page 1 User manual Generated 2015-07-06 Product name Rhone2 Function Power Control Switch Article M3107-1221-B 3830062480017 Description Features AC switch, 16A, high inrush E meter, Measurement of current, range 0.016 to 16 Ampere, and power, range 4 to 3700 Watt) Presence sensor interface...

  • Page 2: Safety Precautions

    External current sensor Gas detection sensor. Other features Rhone2 can be configured to provide in addition to two 16A AC switches also with two 2A DC switches for signal switching. Safety Precautions The product must be connected to earthed AC outlet.

  • Page 3: Installation

    The product may not work properly after fall to the floor or after other types of mechanical distress. Installation Mounting Mount Rhone2 onto flat surface. For example: into the cabinet, onto backside of desk, underneath workdesk, onto the wall. Use velcro closing, alternatively metal fixtures. Velcro closing is included in delivery.

  • Page 4: User Operation

    Connection via WiFi is established automatically at activation of the app provided that Android device is connected to LAN via WiFi, product is connected to LAN and communication between Android and Rhone2 is connected to local LAN. NOTE: When Android gets connected to Rhone2 via USB cable, communication over USB takes over. Connection over WiFi gets disconnected.

  • Page 5: Web Interface

    When sensor function for AC1 and/or AC2 is activated, manual control is deactivated and vice versa. Use of USB control Connect Android device to Rhone2 with USB cable. skdRhone2 app starts automatically, provided it is installed on the Android. Use of LAN control Web access Open web browser and enter Rhone2 ip as link into web browser.
  • Page 6 Set node name. Up to 12 alphanumerics Example: nodename:First; Set node name to First who; Read node id and name help; Help, lists commands and command groups productdata; Read product data. states; Read device states (C) Copyright 2010-2015 SKD System AB...
  • Page 7 = [1,2] status = [0,1] 0=OFF, 1=ON. Activate/deactivate presence sensor. Presence: 0=Absent 1=Present 2=Sensor deactivated. Example: psensor:1-1; Activate Sensor1, psensor:1-0 Manual switch Turns AC1 on/off when AC1 is not controlled by Sensor1. \n\nIf LED1 is Red, AC1 is controlled by Sensor1. (C) Copyright 2010-2015 SKD System AB...
  • Page 8 HTTP interface can be accessed from web browser or via script. Command getdata.htm is used to read data from Rhone2. Command setdata.htm is used to update variables in Rhone2. getdata.htm and setdata.htm specifications are not available publicly at this time. Send request to info@skdab.se for specifications.

  • Page 9: Technical Specification

    Display of results on Android (via USB or WiFi). Presence sensor interface Function RJ-45 interface. Use patch cable to connect sensor. Pinout Pin 4 = Sensor signal. Pin 5 = 5V power supply to sensor. Pin 6 = Ground. (C) Copyright 2010-2015 SKD System AB...

  • Page 10: Product Approvals

    Command interface over TCP, port 60000. HTTP server, port 80 Interface Ethernet, RJ-45 connector MAC address SKD System AB MAC address space 00-50-C2C59XXX. MAC address is printed on the product label. MAC address can be read via Web interface or via app. Defaults Factory settings: IP=192.168.1.222...

  • Page 11: Environmental Specification

    Try by closing app and opening it again. Check that app is not running after Close. Do this via App manager. Select Overview icon or hold Home button for a second to display active applications. Stop skdRhone2 if it is running. (C) Copyright 2010-2015 SKD System AB...
  • Page 12 Alternatively: Restore product to factory defaults by holding SW2 until LED stops blinking. Default: ip 192.168.1.222, gateway 192.168.1.1. IP and Gateway address can be changed from Android, via product web page or by command. (C) Copyright 2010-2015 SKD System AB...
