SKD Rhone2 User Manual

Power control switch
Hide thumbs Also See for Rhone2:
Table of Contents

Advertisement

Quick Links

Download this manual

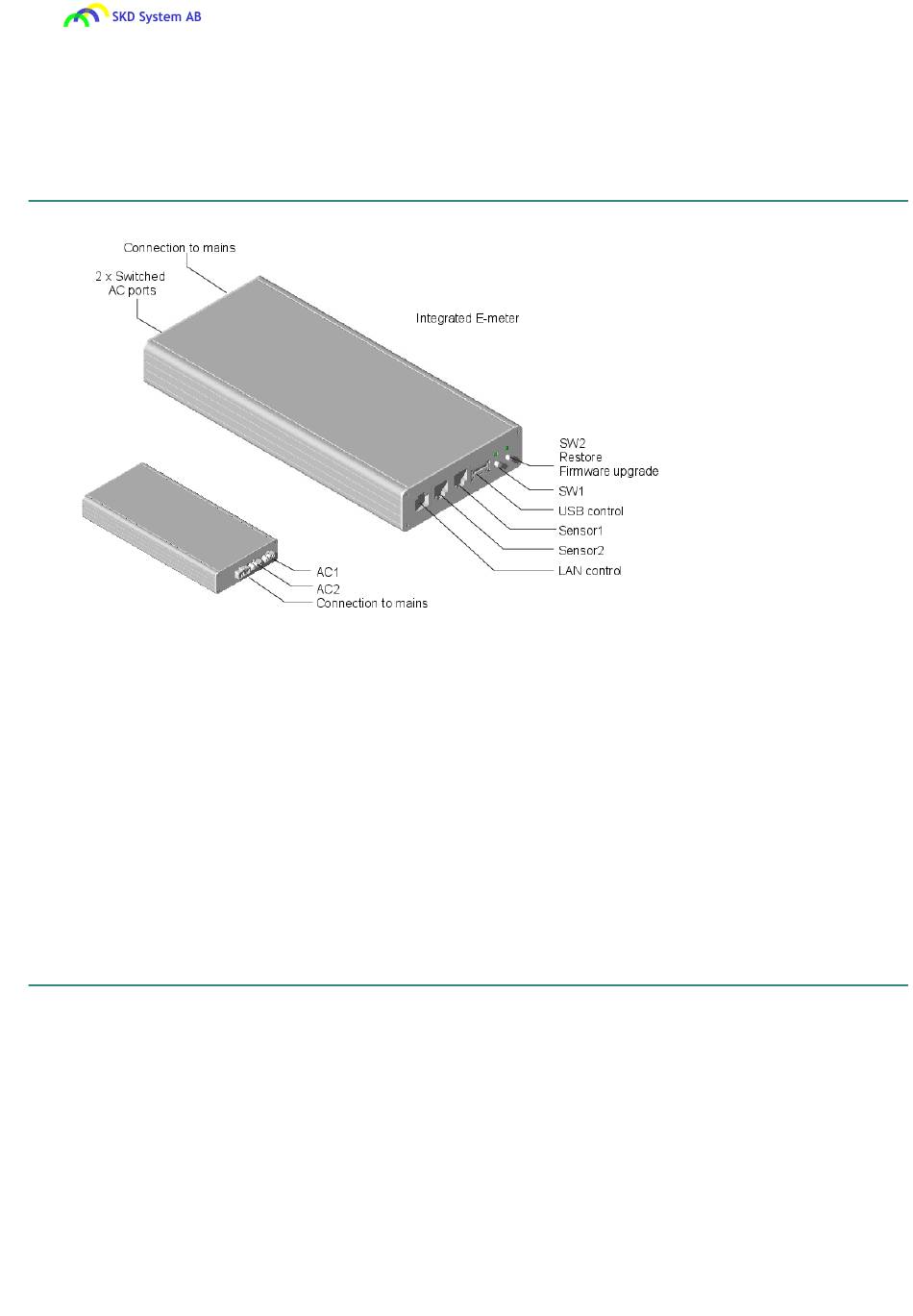

Product name
Function
Article
Description
Features
AC switch, 16A, high inrush
E meter, Measurement of current, range 0.016 to 16 Ampere, and power, range 4 to 3700 Watt)
Presence sensor interface
LAN control, HTTP, TCP
USB control, Android
Wieland mini male connector, connection to mains
Wieland mini female connectors, connection of electric equipment
WiFi control from Android device via LAN
Software controlled fuse in addition to physical fuse
Dimensions
L220 W100 H30mm
Applications
Power control on workplace
Switching of power to power distribution lists and electrical equipment on workplace. One unit can serve one or two workplaces. Control
via LAN, by sensors, via USB.
Rhone2
Power Control Switch
M3107-1221-B
1
User manual
Generated 2015-01-28

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rhone2 and is the answer not in the manual?

Questions and answers

Related Manuals for SKD Rhone2

Summary of Contents for SKD Rhone2

  • Page 1 User manual Generated 2015-01-28 Product name Rhone2 Function Power Control Switch Article M3107-1221-B Description Features AC switch, 16A, high inrush E meter, Measurement of current, range 0.016 to 16 Ampere, and power, range 4 to 3700 Watt) Presence sensor interface...

  • Page 2: Safety Precautions

    Connect product to equipment with cables that have Wieland mini, GST15i3, male connectors on the product side. Note: Connecting Wieland cables need to be handled by trained service personnel. E-meter Not action needed. E-meter starts measuring current and power automatically when power to Rhone2 is turned on. (C) Copyright 2010-2014 SKD System AB...
  • Page 3 Configure Rhone2 LAN from Android SmartPhone or Tablet Install skdRhone2 app. When Android device is connected to Rhone2 with USB-cable, the app will start and connect to Rhone2 automatically. Next, select Network page and set New IP, New Gateway and/or New MASK.

  • Page 4: User Operation

    Hold SW2 and turn on power. SW2 will start blinking fast after a couple of seconds. Upgrade is complete when blinking stops. d) If several Rhone2 nodes are installed in the same network, reassign the last three digits of MAC address to correspond the MAC address on product label.

  • Page 5: Web Interface

    192.168.1.222, port 60000, communications mode RAW. Alternatively open communication interface using script or via PC or Android application. If indirect connection from Android to Rhone2 over WiFi and LAN exists, skdRhone2 will connect automatically via WiFi. Use of sensors Activate sensor and set sensor timers via web, app or by command via LAN.

  • Page 6: Serial Interface Commands

    Set node name to First who; Read node id and name help; Help, lists commands and command groups productdata; Read product data. states; Read device states defaults; Read default settings. Default settings are parameters reinstated after Restore command. (C) Copyright 2010-2014 SKD System AB...
  • Page 7 = [1,2] status = [0,1] 0=OFF, 1=ON. Activate/deactivate presence sensor. Presence: 0=Absent 1=Present 2=Sensor deactivated. Example: psensor:1-1; Activate Sensor1, psensor:1-0 Manual switch Turn AC1 on/off when AC1 is not controlled by Sensor1. AC1 is controlled by Sensor1 if LED1 is Red. (C) Copyright 2010-2014 SKD System AB...
  • Page 8 If current IP of the product is not in the Selection list, add node address to the list. After each change of WiFi connection settings, Close app and start app again to ensure that the changes are activated in the app. Illustration of control of AC switch and sensors via WiFi: (C) Copyright 2010-2014 SKD System AB...

  • Page 9: Technical Specification

    Other types of devices are not supported at this time. To start communication over USB: If not installed, install app skdRhone2 from Google play. Connect USB cable between Android and Rhone2. App and communications start automatically. Technical Specification AC fuse Type Physical fuse.

  • Page 10: Product Approvals

    HTTP server, port 80 Interface Ethernet, RJ-45 connector MAC address SKD System AB MAC address space 00-50-C2C59XXX. MAC address is printed on the product label. MAC address can be read via Web interface or via app. Defaults Factory settings: IP=192.168.1.222, GW=192.168.1.1, MASK=255.255.255.0 Command interface Serial interface commands are listed in User Manual, product app and product web page.

  • Page 11: Environmental Specification

    In some cases, several instances of app activity could be running in parallel. Try closing app from Android. [In some Android products this can be done by holding Home button for a second and when running apps get displayed, swipe away the app]. (C) Copyright 2010-2014 SKD System AB...
  • Page 12 Alternatively: Restore product to factory defaults by holding SW1 or SW2 for 15seconds. Default: ip 192.168.1.222, gateway 192.168.1.1. IP and Gateway address can be set to new values via Android connected to USB or by connecting the product via LAN to PC. (C) Copyright 2010-2014 SKD System AB...
