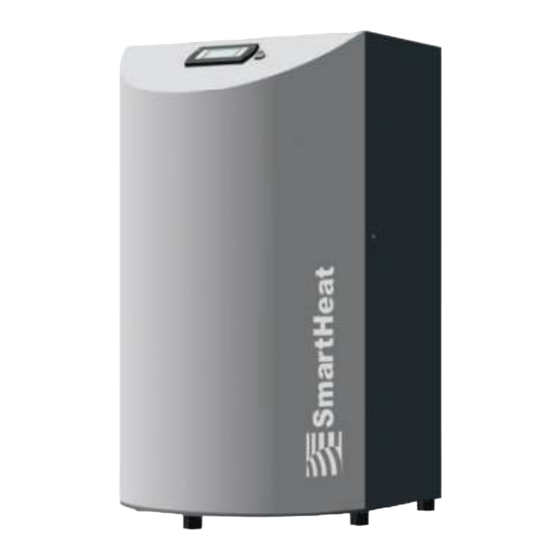

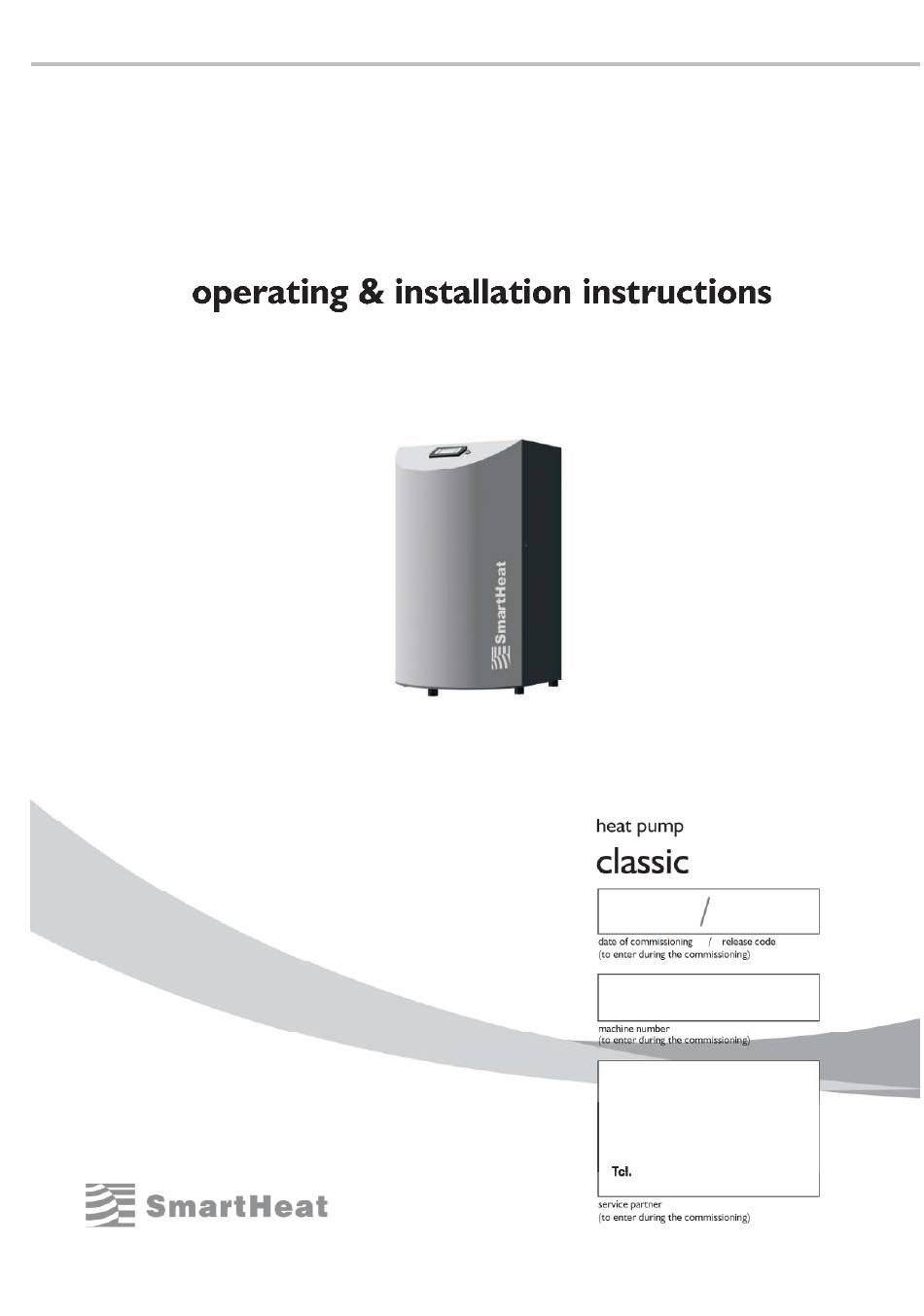

Operating & installation instructions classic Subject to technical changes. V 1.1.7 By choosing the heat pump classic you have decided to purchase a proven product. The unit considers the knowledge acquired in many years of using heat pumps with state-of-the-art technique.
V1.1.7 Subject to technical changes. >> Operating & installation instructions classic Inhaltsverzeichnis General notes ................................3 Limitation of liability ............................3 Duty of care of the operator ..........................3 Basic instructions .............................. 4 Purpose ..................................4 Proper use ................................4 Product description ..............................
>> Operating & installation instructions classic Subject to technical changes. V 1.1.7 General notes Limitation of liability All technical information data and notes for installation and operation included in these instructions are state-of-the-art at the time of printing and are performed considering our present experiences and knowledge in all conscience. It is not possible to derive any claims from the information, illustrations and descriptions of these instructions.
V1.1.7 Subject to technical changes. >> Operating & installation instructions classic Basic instructions The heat pump must only be operated with all connected media. A flow monitoring in the heating system must be guaranteed by the installation's operator. Before opening the unit it must be made sure that the heat pump is zero potential.
Water-water heat pump: SmartHeat classic WW The design of the SmartHeat classic WW heat pump is very similar to the design of the BW heat pump. However, in- stead of the brine circuit an extraction well and an injection well are connected which convey ground water to the heat pump.
Page 7
V1.1.7 Subject to technical changes. >> Operating & installation instructions classic Guidance value for the water quality The ground water which is used as heat source must fulfil the following listed minimum requirements: Soldered copper Alfa Nova Conductivity in µ-Siemens / cm * <...
General notes The classic module active cooling allows you to operate your heat pump heating unit also with a cooling function in addition to the known hot and warm water preparation functions. These cooling function enables the cooling of the building in relation with an appropriate distribution system when it is operated in summer.
Page 9
V1.1.7 Subject to technical changes. >> Operating & installation instructions classic Planning and dimensioning For planning and dimensioning of heating and cooling spaces consider the common technical rules. For maximum transferable cooling capacity it can be calculated with 100 W/m for wall and sealing spaces.
General notes The module for externally passive cooling extends the application range of your classic heat pump by the function to cool the building during the summer. This module is available for all classic-models of the series BW (brine/water) and WW (water/water).
Page 11
A separate supply is not necessary. Hydraulic connection There are no differences to the classic-heat pump series without cooling module regarding the hydraulic connection of the heat pump device. The heating flow and return keep their flow direction and become refrigerant flow (outlet) and return (input).
V1.1.7 Subject to technical changes. >> Operating & installation instructions classic Transportation Before delivery our products are checked if they are without damages and functional and finally they are packed. The transportation of the heat pump must be performed with care. It is only al- lowed to tilt the machine cabinet to more than 45°...
The installation space must be dry and frost-free and have a plane and horizontal ground. The ground must be dimen- sioned according to the weight of the SmartHeat classic heat pump. The connection to the heating and heat source system should be as short as possible.
Preparation The connections for the heat pumps of the classic series are at the rear of the device. Comprehensive hydraulic acces- sories such as e.g. connection kits, switching units, etc. (refer to price list) are available for the optimum connection in the SmartHeat system accessories.
After having performed the installation of the heating system, fill, bleed and squeeze off the heating system. For the optimum connection comprehensive hydraulic accessories are available from the SmartHeat system, such as e.g. connection kits, switching units, etc. If inappropriate connection material is used for the hydraulic installation strong noise development, malfunctions or material damages might occur! The integration of the heat pump into the heating network and for drinking water preparation may be very different depending on the respective application.
V1.1.7 Subject to technical changes. >> Operating & installation instructions classic Electrical connection General notes Work on the opened heat pump cabinet and connection box must only be carried out in dead switched status and by an approved electrician or services technician. All components, necessary for the power supply and control, are in the upper half of the heat pump cabinet.
Page 18
Heating engineers authorizes by SmartHeat or correspondingly qualified electricians may perform the electri- cal connection of the heat pump. Further special knowledge which the installer gathers during training at SmartHeat is required for such works.
Page 19
V1.1.7 Subject to technical changes. >> Operating & installation instructions classic Fig.: Connecting of PSD10122** and PSD10162** Inverter Fig.: Connecting of PSD10244 Inverter Note: To ensure conformity to the EMC directive, use shielded cable with tape +braid shields (SN/ST). The cable can also be laid in steel and copper cableways.
>> Operating & installation instructions classic Subject to technical changes. V 1.1.7 Commissioning General notes In order to guarantee a proper commissioning, it should be performed by a service partner who is authorized by the manufacturer. Under certain conditions it is related to a prolongation of the guarantee (cf. guarantees).
Page 21
V1.1.7 Subject to technical changes. >> Operating & installation instructions classic Water analysis and water treatment Planners and installers must check on the system if the available feed water is appropriate to fill the heating system with regard to the total hardness according to VDI 2035 sheet 1. The result of this test must be transmitted in writing to the builder / operator.
>> Operating & installation instructions classic Subject to technical changes. V 1.1.7 Control The heat pump is mainly commissioned and operated by means of the heat pump controller; this controller should be located inside the building. The precondition for successful operation of the heat pump is that it is continuously switched on.
V1.1.7 Subject to technical changes. >> Operating & installation instructions classic Maintenance, cleaning and care instructions Maintenance According to the EC-VO 842/2006 (F gas regulation) it is necessary to submit all coolant circuits of a coolant quantity >3kg (6 kg for hermetic systems) to a leak test every year. The coolant can be taken out of the machine via the type plate.
Failure The heat pump classic is a quality product and should work trouble-free. Before delivery our products are tested in order to make sure that they are delivered without damages and functional. However if a failure occurs it is displayed on the heat pump controller.
V1.1.7 Subject to technical changes. >> Operating & installation instructions classic 11 Decommissioning Provisional decommissioning: By actuating the power switch and turning it to the position "OFF“ the system is decommissioned. Due to the risk of freezing it is only allowed to decommission the system without emptying the heating circuit at temperatures of more than 0°C.
>> Operating & installation instructions classic Subject to technical changes. V 1.1.7 12 Hydraulic examples 12.1 Basic notes To avoid the transmission of sound to the heating circuit, use flexible tubes for connection! Freezing protection of the heat pump and the connection tubes should be ensured by the installer and user! ...
Page 27
V1.1.7 Subject to technical changes. >> Operating & installation instructions classic Hydraulic system example classic BWi with Buffer tank >> www.SmartHeat.de...
Page 28
>> Operating & installation instructions classic Subject to technical changes. V 1.1.7 Hydraulic system example classic WWi with Buffer tank Hydraulic system example clas- sic DI with Buffer tank >> www.SmartHeat.de...
>> Operating & installation instructions classic Subject to technical changes. V 1.1.7 13 Appendix EU declaration of conformity Technical data Terminal assignment plan >> www.SmartHeat.de...
Page 34
Typen/ types: classic 008 BWi (R), classic 010 WWi (R), classic power 012 BWi (R), classic power 016 WWi (R), classic 012 BWi (R), classic 016 WWi (R), classic power 024 BWi (R), classic power 032 WWi (R)
