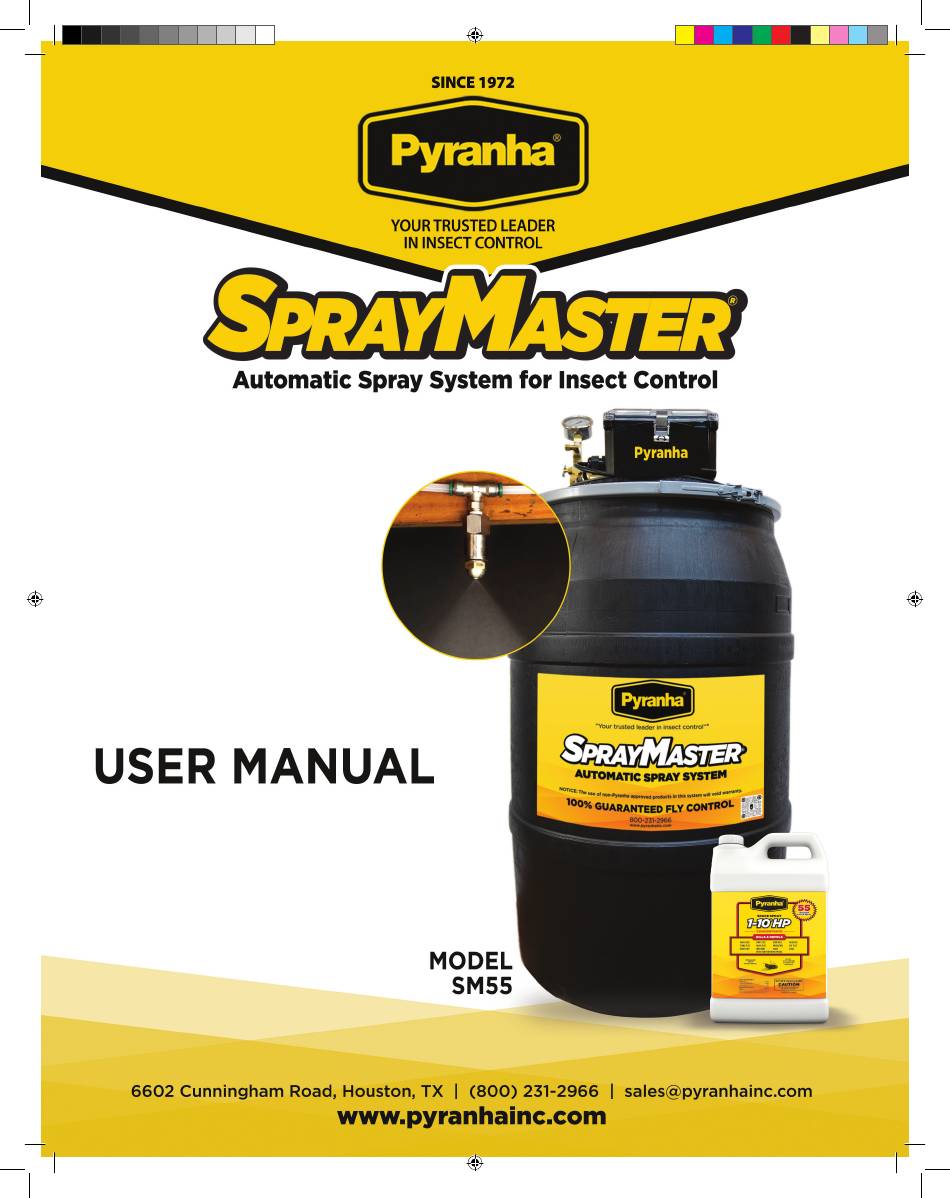

- Page 1 SprayMaster® System User Manual | www.PyranhaInc.com | Houston, Texas System_Manual_2020.indd 1 System_Manual_2020.indd 1 12/23/20 10:18 AM 12/23/20 10:18 AM...
- Page 2 SprayMaster® System User Manual | www.PyranhaInc.com | Houston, Texas System_Manual_2020.indd 2 System_Manual_2020.indd 2 12/23/20 10:18 AM 12/23/20 10:18 AM...
-
Page 3: Warranty Registration
INSECT CONTROL® Dear Pyranha SprayMaster™ System New Owner, We here at Pyranha®, Inc. “Thank You” for purchasing the SprayMaster™ System, and we look forward to many years of providing you with the comfort and protection to which all of our customers are accustomed. - Page 4 SprayMaster® System User Manual | www.PyranhaInc.com | Houston, Texas System_Manual_2020.indd 4 System_Manual_2020.indd 4 12/23/20 10:18 AM 12/23/20 10:18 AM...
- Page 5 SINCE 1972 SprayMaster® System Top Installation YOUR TRUSTED LEADER IN INSECT CONTROL® 1. Cut out or peel off tape covering large holes on lid. 2. Unlatch metal ring and slide it down so it remains around the drum. 3. Remove drum lid The following steps can be completed with the drum top resting on the lip of the drum, or on any support that...
- Page 6 EXTRA SprayMaster® System User Manual | www.PyranhaInc.com | Houston, Texas System_Manual_2020.indd 6 System_Manual_2020.indd 6 12/23/20 10:18 AM 12/23/20 10:18 AM...
-
Page 7: Installation Instructions
SINCE 1972 SprayMaster® Installation Instructions YOUR TRUSTED LEADER IN INSECT CONTROL® 1. At the installation site, remove all equipment from the corrugated box and the polyethylene drum and replace the drum lid. Check the image in Figure 1 below to identify each piece of equipment. FIGURE 1 NOTE: HIGH PRESSURE TUBING MUST BE USED OR WARRANTY WILL BE VOID. - Page 8 1. Remove the spray nozzles from package. Using the barn diagrams as a guide (Figure 4), run the ¼ inch nylon tubing on the ground around the stall area to be treated, beginning at the tank. 2. Using supplied tubing cutter, cut the tubing squarely to ensure airtight connections at each spray nozzle.
- Page 9 3. Push the tubing firmly into the side of the spray nozzle tee (Figure 5). Pull gently to confirm you have secure connections then push back in. If leakage occurs, remove tubing by pushing on the green circle, pushing the tubing in, pulling the tubing out and then releasing the green circle.
- Page 10 7. Remove the lid from the top of the drum and fill the drum about halfway with clean water. Do NOT put insecticide in the drum until testing is completed. Replace the lid on top of the drum. Do not restrict the float line and tubing. 8.
- Page 11 13. Rotate outer ring of clock dial clockwise to set the time of day (Figure 8). 14. Select the pin for the time of day you want the system to operate by using a ballpoint pen or similar object to move the switch outward into the set position (Figure 8). Repeat the above for each time you want the system to spray.
-
Page 12: Servicing Your System
SINCE 1972 SprayMaster® Servicing Your System YOUR TRUSTED LEADER IN INSECT CONTROL® When the liquid is low and the drum needs to be refilled, the Float Switch will automatically shut the system off and the red light will turn on. To service and refill the system, use the following procedure: 1. - Page 13 SINCE 1972 SprayMaster® Winterizing Your System YOUR TRUSTED LEADER IN INSECT CONTROL® Winterizing Your SprayMaster® System 1. Disconnect the nozzle tubing at the discharge elbow (liquid will pour from the tubing) and open the bleed valve at the other end. We recommend having both ends of the tubing empty into the drum.
- Page 14 CONSUMPTION RATE FOR AUTOMATIC INSECT CONTROL SYSTEMS The following is the formula for determining how many gallons of diluted Pyranha® Insecticide your Automatic System will consume in one week. • Number of times system fires in a day multiplied by Number of days in a week (7) multiplied by •...
-
Page 15: Troubleshooting Solutions
1. Check breaker panel. Plug in another appliance to same receptacle to make sure there is power. automatically or when you 2. Tank is empty and float is cutting 2. Fill your system with water and your preferred Pyranha® Concentrate. press the extra run button. power to the motor. - Page 16 SPRAY NOZZLE ASSEMBLY KIT - (5) 1/4” NOZZLE ASSEMBLIES, 100’ TUBING 004NTUNUPKIT TUNE-UP KIT - (2) 1/4” NOZZLES, 5 SPRAY TIPS, 1 INTAKE FILTER WITH TUBING 001HP55 PYRANHA® 1-10HP CONCENTRATE™ FOR 55 GALLON SYSTEM - 2.5 GAL 001HPS30 PYRANHA® 1-10HPS CONCENTRATE™ FOR 30 GALLON SYSTEM - 2.5 GAL 001ODAWAYC PYRANHA ODAWAY™...
Need help?
Do you have a question about the SPRAYMASTER SM55 and is the answer not in the manual?
Questions and answers
Sprayer pump is not turning on but the red light is blinking. It has power to the system and it’s full.
The red light blinking indicates that the liquid is low and the drum needs to be refilled. The Float Switch automatically shuts the system off when the liquid is low, causing the pump not to turn on.
