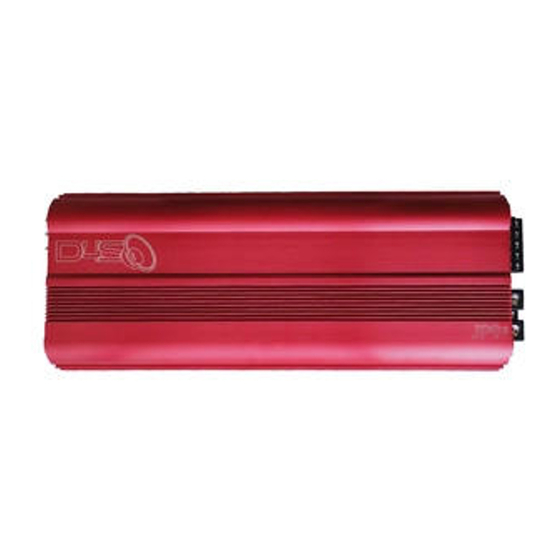

Down4Sound JP95 Owner's Manual

Download this manual

JP9

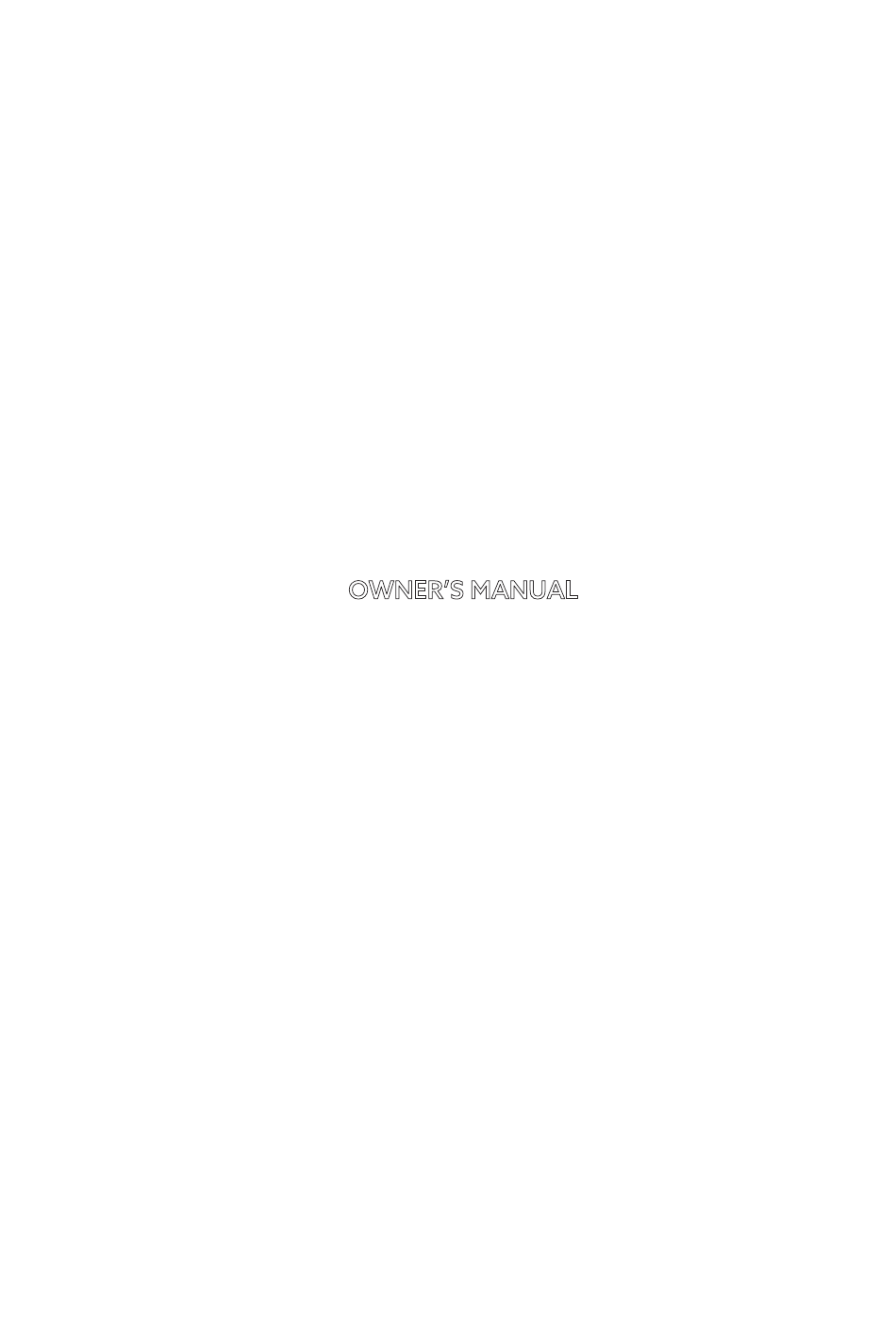

OWNER'S MANUAL

READ ME FIRST | OR NOT | BUT STILL, READ ME FIRST

Need help?

Do you have a question about the JP95 and is the answer not in the manual?

Page 1 OWNER’S MANUAL READ ME FIRST | OR NOT | BUT STILL, READ ME FIRST...
Page 2 LOW PASS FILTER MULTIPLY X10 FOR CH3 & CH4 REMOTE BASS KNOB WITH VOLTMETER & TEMPERATURE DISPLAY BAND PASS FILTER CAPABLE FOR CH3 & CH4 Rated Poiwer Output JP95 RMS power, 1ohm for CH5 900W x 1 RMS power, 2ohm 200W x 4 + 700W x 1...
Page 3 HEAD UNIT GROUND BATTERY Caution THE JP-95 is not supplied with internal fuses. Make sure you install an in-line fuse holder +12V POWER as the ground cable, making sure you install in-line fuse holder, approximately 11 inches to 16 inches GROUND ( GND ) Keep this cable as short as possible (not longer than 20 inches ).
Page 4 SPEAKER CONNECTION 1. 8~4 OHMS 8~4 OHMS...
Page 5 SPEAKER CONNECTION 2. 4~2 OHMS 4~2 OHMS SPEAKER CONNECTION 3. 4~2 OHMS 4~2 OHMS...
Page 6 The JP95 ampliﬁer has STATE OF THE ART protection features to prevent any damage from misuse or faulty conditions. IF the ampliﬁer senses excessive heat, short circuited speakers DC, or voltage, the protection indicator will light, and the system will be turned oﬀ. In order to check the problem, you should turn all level down and all power oﬀ...
Page 7 Wass up! www.Down4SoundShop.com...
