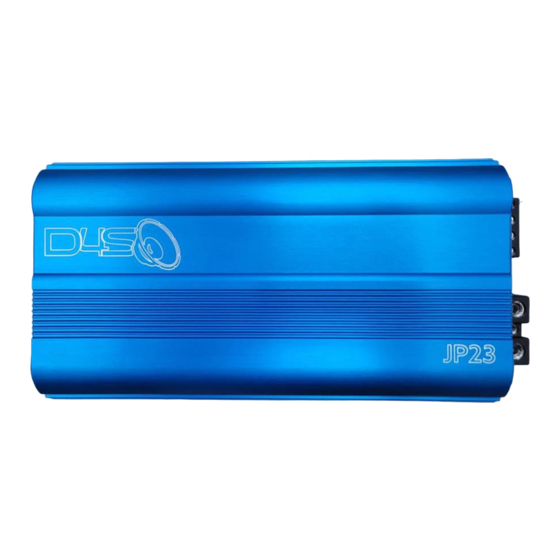

Down4Sound JP23 Owner's Manual
  1. Manuals
  2. Brands
  3. Down4Sound Manuals
  4. Amplifier
  5. JP23
  6. Owner's manual

Down4Sound JP23 Owner's Manual

Hide thumbs

Advertisement

Table of Contents

JP23
OWNER'S MANUAL
READ ME FIRST | OR NOT | BUT STILL, READ ME FIRST

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JP23 and is the answer not in the manual?

Questions and answers

Related Manuals for Down4Sound JP23

Summary of Contents for Down4Sound JP23

  • Page 1 JP23 OWNER’S MANUAL READ ME FIRST | OR NOT | BUT STILL, READ ME FIRST...
  • Page 2 ::: Designed in Dunnellon, FL & Las Vegas NV | USA ::: By. JP, Jacob Scott. Special Thanks to Craig Smith & TEAM D4S. 0 GAUGE POWER / GROUND TERMINALS. We added everything we could to this amplifier, we hope you enjoy the JP23. Rated Power Output JP-23 RMS power, 1ohm 2000W x 1 @ 12v | 2300w x 1 @ 14.4v...
  • Page 3 HEAD UNIT GROUND BATTERY Caution THE JP-23 is not supplied with internal fuses. Make sure you install an in-line fuse holder +12V POWER as the ground cable, making sure you install in-line fuse holder, approximately 11 inches to 16 inches GROUND ( GND ) Keep this cable as short as possible (not longer than 20 inches ).
  • Page 4 SPEAKER CONNECTION 1. 4~1 OHMS SPEAKER CONNECTION 2. 4~2 OHMS 4~2 OHMS...
  • Page 5 Wired Remote Control 2. STRAPPABLE INPUT CONNECTION MASTER AMPLIFIER The MASTER amp has total control over the SLAVE amp. SLAVE AMPLIFIER...
  • Page 6 MASTER AMPLIFIER Caution SLAVE AMPLIFIER Using a strappable con guration, the MASTER ampli er has total control over the SLAVE ampli er. When using dual ampli er to operate subwoofer, the positive terminal of the subwoofer's voice coil must be connected to the positive terminal of the MASTER Ampli er and the negative terminal of the subwoofer's voice coil must be connected to positive terminal of the SLAVE Ampli er.
  • Page 7 The JP23 ampli er has STATE OF THE ART protection features to prevent any damage from misuse or faulty conditions. IF the ampli er senses excessive heat, short circuited speakers DC, or voltage, the protection indicator will light, and the system will be turned o . In order to check the problem, you should turn all level down and all power o and carefully check the installation for wiring mistakes or short, check the subwoofer too sometimes spiders rip and they short the coil..
  • Page 8 www.Down4SoundShop.com...
