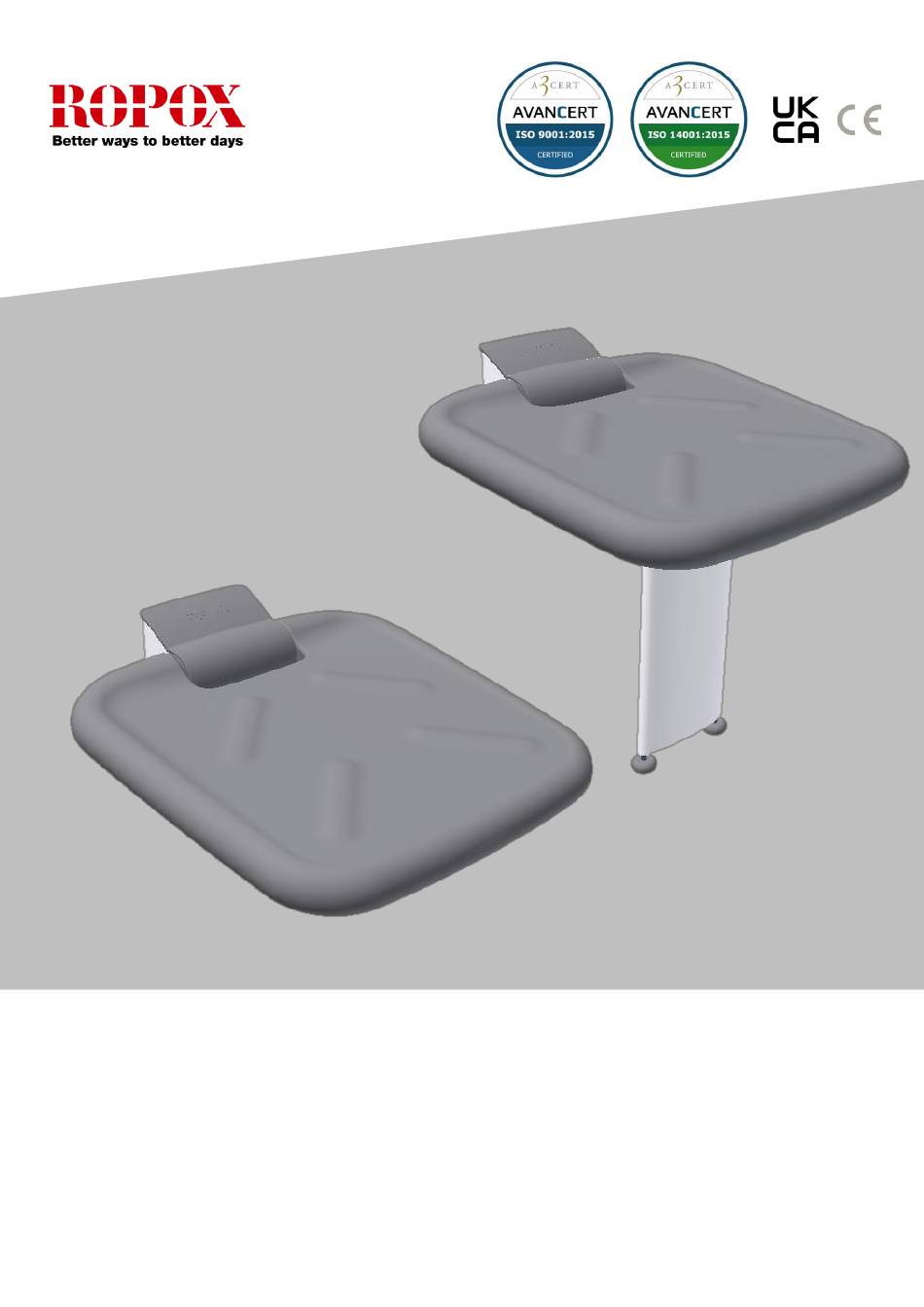

- Page 1 Ropox Folding shower seat User manual Installation guide This manual must always accompany the product TF 200.01.0044 / Dato 22-06-2022...
-
Page 2: Table Of Contents
Table of Contents Symbols used in this manual ....................3 General safety ........................3 2.1 Product Unit label ............................5 General requirements ......................6 3.1 Product information ............................ 6 3.2 Product description ............................. 6 3.3 Intended use ..............................6 3.4 Intended operator ............................6 3.5 Options ................................ -
Page 3: Symbols Used In This Manual
Symbols used in this manual Warning Symbol Indication of potentially hazardous situation. If not avoided it can result in serious injury or death. Caution Symbol Indication of potentially hazardous situation which may result in minor or moderate injury. It may also be used to alert against unsafe practices. Notification Symbol This symbol is used to notify correct use and handling of the product. - Page 4 The information in this manual is based on correct installation in accordance with installation instructions for this product. Ropox cannot be held liable if the product is used in any way that differs from stated in this manual and/or installation instruction.
-
Page 5: Product Unit Label
2.1 Product Unit label 40-43011-2 Shower seat Ropox shower seat, with leg Foldable Max load: 200kg Mass of product: 10kg This product is UKCA-marked in accordance with: UK SI 2002 No. 618 - The Medical Devices Regulations 2002, and its amendments UK SI 2008 No. -
Page 6: General Requirements
Shower seat Without legs MDD Class Class I 93/68/EEC Maximum user weight 40-43011 = 200 kg / 440 lbs according to 40-43016 = 150 kg / 330 lbs EN12182:2012 Ambient temperature -10 °C to +50 °C Transport and storage range +5 °C to +40 °C Operation... -
Page 7: Options
3.5 Options 40-43016 Ropox Folding Shower Seat Maximum user weight 150kg/330lbs for 40-43016 40-43011 Ropox Folding Shower Seat with leg TF 200.01.0044_eng... -
Page 8: Dimensions
3.6 Dimensions 40-43016 Ropox Folding Shower Seat TF 200.01.0044_eng... - Page 9 40-43011 Ropox Folding Shower Seat with leg TF 200.01.0044_eng...
-
Page 10: Mounting Instructions
(441lbs) for the seat with legs. The hatched area is the minimum area for reinforcement of the wall. Max. tensile load of upper screws 40-43011: 70kg/screw (154lbs) 40-43016: 225kg/screw (496lbs) NOTE: All dimensions are based on a fixed seat height of 450mm (17 7/10”) above floor level. If a change of this height is required, the recommended dimensions must be changed accordingly. -
Page 11: Mounting Instructions For Shower Seat Without Leg
4.2 Mounting instructions for shower seat without leg The following parts are included: Shower Seat Mounting screws Rawlplugs The screws and rawlplugs included are for mounting on a concrete wall. The installer must always examine the material, condition and strength of the wall and use appropriate screws and rawlplugs. The seat has a max user weight of 150kg/330lbs. - Page 12 TF 200.01.0044_eng...
- Page 13 TF 200.01.0044_eng...
-
Page 14: Mounting Instructions For Shower Seat With Leg
4.3 Mounting instructions for shower seat with leg The following parts are included: Shower Seat with leg and adjustment screws Mounting screws Rawlplugs The screws and rawlplugs included are for mounting on a concrete wall. The installer must always examine the material, condition and strength of the wall and use appropriate screws and rawlplugs. The seat with legs has a max user weight of 200kg/440lbs. - Page 15 TF 200.01.0044_eng...
- Page 16 TF 200.01.0044_eng...
- Page 17 TF 200.01.0044_eng...
-
Page 18: User Instructions
5. User instructions 5.1 Folding away after use The Ropox Folding Shower Seat has a built-in spring mechanism to make it really easy to fold the seat away by the wall after use. The seat is also designed to hold itself up, but is at the same time easy to fold down again. -
Page 19: Maintenance
6. Maintenance The Ropox Folding Shower Seat is maintenance-free. For safety reasons, however, we do recommend regular inspection of all installation screws and moving parts in order to make sure that the wall mounting is in order and safe. 6.1 Cleaning Do not use a high pressure cleaner to clean this product. - Page 20 Seats Chemical Resistance: TF 200.01.0044_eng...
-
Page 21: Troubleshooting
The seat cannot maintain The internal spring might be defective; if so, contact an upright position Ropox for a new part. The seat is unusually Detach the plastic cover by the wall bracket. • If the springs have come loose, put the springs into heavy to lift position while the seat is in an upright position. -
Page 22: Spare Parts
8. Spare parts 40-40018-013 Feet 40-43010-233 Plastic cover for 40-43016 40-43010-289 Plastic cover for 40-43011 40-43017-2 PUR seat 40-43010-176 Leaf spring 40-43010-216 Relief spring TF 200.01.0044_eng... -
Page 23: Complaints
9. Complaints All inquiries concerning complaints must be directed to the distributor representing Ropox on the market in question. Cf. Ropox General Terms of Sale and Delivery. TF 200.01.0044_eng...
