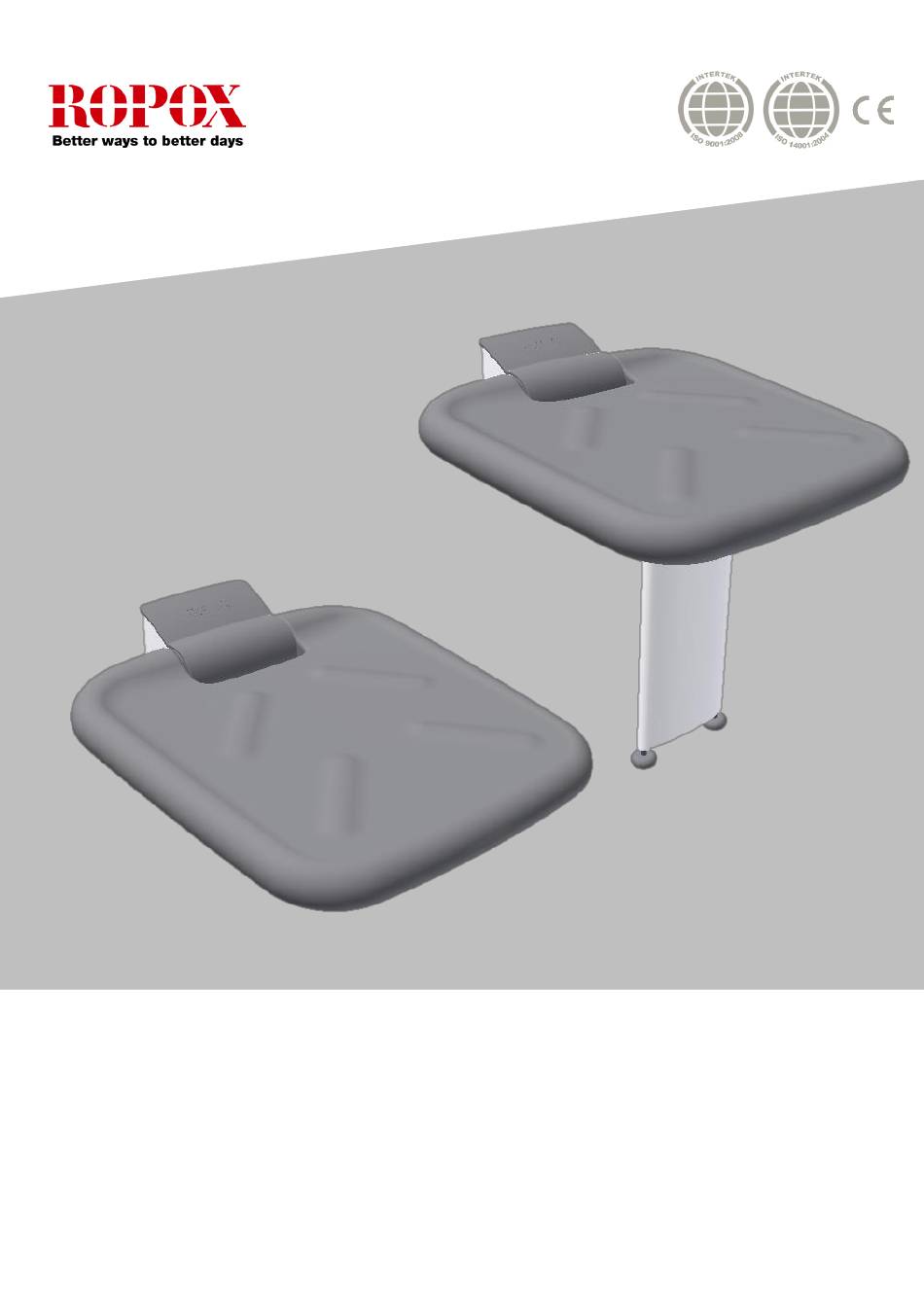

- Page 1 Ropox Folding shower seat User manual Installation guide This manual must always accompany the product PDF 6205 / 08.01.2019...
-
Page 2: Table Of Contents
Options .................................. 4 Technical data ..........................5 Dimensioned drawings ............................6 Mounting instructions......................... 8 Mounting instructions for shower seat without leg 40-43016 ................8 Mounting instructions for shower seat with leg 40-43011 ..................11 User instructions ........................15 Folding away after use ............................15 Safety in use ................................15... -
Page 3: Product Information
Product: Ropox Shower Seat Manufacturer: Ropox, DK-4700 Næstved, Tel. +45 55 75 05 00 Area of application: The shower seat is designed to provide a comfortable seat and support for people using the shower/bath. The seat can be used in private homes, care centres or similar institutions in order to ensure simple, comfortable movement and use. -
Page 4: Options
Options 40-43016 Ropox Folding Shower Seat Maximum user weight 150kg/330lbs for 40-43016 40-43011 Ropox Folding Shower Seat with leg Maximum user weight 200kg/440lbs for 40-43011 Side 4... -
Page 5: Technical Data
Max user weight is 150kg/330lbs (without leg) and 200kg/440lbs (with leg) in accordance with DS/EN 12182. All models of Ropox Shower Seat are manufactured in accordance with the current requirements of Directive No. 93/42/EEC concerning Medical Devices and belong to the lowest risk class 1. -
Page 6: Dimensioned Drawings
Dimensioned drawings 40-43016 Ropox Folding Shower Seat Side 6... - Page 7 40-43011 Ropox Folding Shower Seat with leg Side 7...
-
Page 8: Mounting Instructions
Mounting instructions Mounting instructions for shower seat without leg 40-43016 The following parts are included: Shower Seat Mounting screws Rawlplugs The screws and rawlplugs included are for mounting on a concrete wall. The installer must always examine the material, condition and strength of the wall and use appropriate screws and rawlplugs. - Page 9 Side 9...
- Page 10 Side 10...
-
Page 11: Mounting Instructions For Shower Seat With Leg 40-43011
Mounting instructions for shower seat with leg 40-43011 The following parts are included: Shower Seat with leg and adjustment screws Mounting screws Rawlplugs The screws and rawlplugs included are for mounting on a concrete wall. The installer must always examine the material, condition and strength of the wall and use appropriate screws and rawlplugs. - Page 12 Side 12...
- Page 13 Side 13...
- Page 14 Side 14...
-
Page 15: User Instructions
User instructions Folding away after use The Ropox Folding Shower Seat has a built-in spring mechanism to make it really easy to fold the seat away by the wall after use. The seat is also designed to hold itself up, but is at the same time easy to fold down again. -
Page 16: Maintenance
Maintenance The Ropox Folding Shower Seat is maintenance-free. For safety reasons, however, we do recommend regular inspection of all installation screws and moving parts in order to make sure that the wall mounting is in order and safe. Cleaning Do not use a high-pressure cleaner to clean this product. - Page 17 Seats Chemical Resistance: Side 17...
-
Page 18: Troubleshooting
The seat cannot maintain The internal spring might be defective; if so, contact an upright position Ropox for a new part. The seat is unusually Detach the plastic cover by the wall bracket. • If the springs have come loose, put the springs into heavy to lift position while the seat is in an upright position. -
Page 19: Marking
Marking Labels Every Ropox Shower Seat has its own label as shown below. This label contains important information, which must be quoted when contacting the supplier. Below are the versions with and without a leg respectively. Product number Serial number Max. -
Page 20: Spare Parts
Spare parts Current spare parts 40-40018-013 Feet 40-43010-233 Plastic cover for 40-43016 40-43010-289 Plastic cover for 40-43011 40-43017-2 PUR seat 40-43010-176 Leaf spring 40-43010-216 Relief spring Side 20... -
Page 21: Ce Declaration
CE Declaration EU Declaration of Conformity Ropox hereby declares that the following products 40-43016 Ropox Folding Shower Seat with leg 40-43011 Ropox Folding Shower Seat without leg are classified as class I and conform to the following directives and standards: Directives Directive No. -
Page 22: Complaints
Complaints All inquiries concerning complaints must be directed to the distributor representing Ropox on the market in question. Cf. Ropox General Terms of Sale and Delivery. Ropox A/S Ringstedgade 221 DK – 4700 Naestved Tel.: +45 55 75 05 00 Fax.: +45 55 78 05 50 E-mail: info@ropox.dk...
