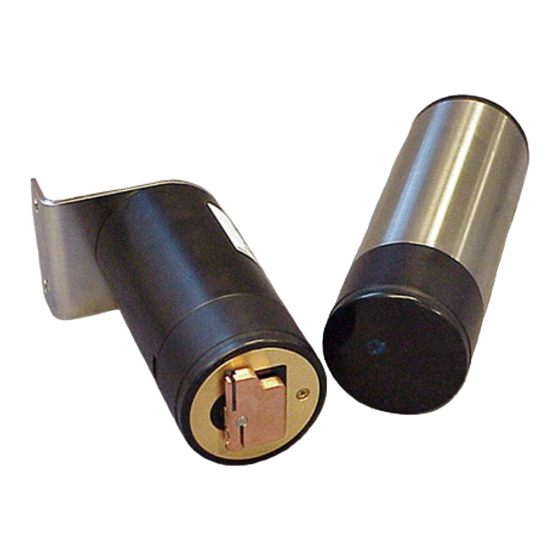

ECO VSF
Volume Scattering Function Meter
User's Guide
The user's guide is an evolving document. If you find sections that are unclear, or
missing information, please let us know. Check our website periodically for updates.
WET Labs, Inc.
P.O. Box 518
Philomath, OR 97370
541-929-5650
fax: 541-929-5277
www.wetlabs.com
ECO VSF User's Guide (VSF)
Revision AN
14 Sept. 2011
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Wet Labs ECO VSF
Summary of Contents for Wet Labs ECO VSF
- Page 1 The user’s guide is an evolving document. If you find sections that are unclear, or missing information, please let us know. Check our website periodically for updates. WET Labs, Inc. P.O. Box 518 Philomath, OR 97370 541-929-5650 fax: 541-929-5277 www.wetlabs.com ECO VSF User’s Guide (VSF) Revision AN 14 Sept. 2011...
- Page 3 To return the instrument, contact WET Labs for a Return Merchandise Authorization (RMA) and ship in the original container. WET Labs is not responsible for damage to instruments during the return shipment to the factory. WET Labs will supply all...
-
Page 5: Table Of Contents
Device and Output Files ....................21 Plot Header........................21 Column Count Specification ....................21 Column Description ......................21 Sample Device File ......................22 Sample Output File ......................22 Appendix A: Mounting Bracket Drawing ................ 23 ECO VSF User’s Guide (VSF) Revision AN 14 Sept. 2011... -
Page 7: Specifications
VSFB—Provides the capabilities of the VSF and self-recording with internal batteries for autonomous operation. VSFSB—Provides the capabilities of the VSF with an integrated anti-fouling Bio-wiper™ and self-recording with internal batteries for autonomous operation. Specifications subject to change without notice. ECO VSF User’s Guide (VSF) Revision AN 14 Sept. 2011... -
Page 8: Connectors
Configurable WARNING If you are going to build or use a non-WET Labs-built cable, do not use the wire from pin 3 or the ECO meter will be damaged. Input power of 7–15 volts DC is applied to pin 4. The power supply current returns through the common ground pin. -
Page 9: Delivered Items
Three pre-cut segments (7 inches) of 0.036-inch diameter monofilament for end flange Three pre-cut segments (0.25 inches) of 0.094-inch diameter white nylon bar stock for replacing the white plastic dowel pin ECO VSF User’s Guide (VSF) Revision AN 14 Sept. 2011... -
Page 10: Optional Equipment
Temperature (deg C) = (Output * Slope) + Intercept 1.3.6 Pressure Sensor ECO meters are optionally equipped with a strain gauge pressure sensor. The pressure sensor is calibrated at WET Labs and the calibration coefficients are supplied on the ECO VSF User’s Guide (VSF) Revision AN... - Page 11 5. Screw the Swagelock fitting into the end flange until finger tight. 6. Tighten it an additional 1/8 turn using a wrench only if necessary. 7. Wipe up any excess oil. ECO VSF User’s Guide (VSF) Revision AN 14 Sept. 2011...
-
Page 12: Theory Of Operation
The ECO VSF measures the optical scattering at 100, 125, and 150 degrees, thus providing the shape of the Volume Scattering Function (VSF) throughout its angular domain. -
Page 13: Instrument Operation
Connect the 6-socket connector on the test cable to the instrument to provide power to the LEDs and electronics (see Section 1 for a diagram of the pinouts of ECO VSF). Connect the battery leads on the test cable to the 9V battery supplied with the meter. Light should emanate from the meter. -
Page 14: Bio-Wiper™ Operation
Deployment The ECO VSF meter requires no pump to assure successful operation. Once power is supplied, the unit is ready for submersion and subsequent measurements. Some consideration should be given to the package orientation. Do not face the sensor directly into the sun or other bright lights. -
Page 15: Upkeep And Maintenance
Upkeep and Maintenance We highly recommend that ECO meters be returned to the factory annually for cleaning, calibration and standard maintenance. Contact WET Labs or visit our website for details on returning meters and shipping. After each cast or exposure of the instrument to natural water, flush with clean fresh water, paying careful attention to the sensor face. - Page 16 To gauge 0.03 in., fold a piece of paper in half, then in half again, then fold a third time, creasing the edges. It’s now 8 sheets and about 0.03 in. thick. ECO VSF User’s Guide (VSF) Revision AN 14 Sept. 2011...
- Page 17 180 degrees to cover the optics after sampling. 14. If the wiper needs adjusting, loosen the screw, make any necessary adjustments, and repeat steps 9 through 13 to ensure the wiper is performing properly. ECO VSF User’s Guide (VSF) Revision AN 14 Sept. 2011...
-
Page 18: Vsfb And Vsfsb: Using Internal Batteries
WET Labs Inc. disclaims all product liability from the use or servicing of this equipment. WET Labs Inc. has no way of controlling the use of this equipment or of choosing qualified personnel to operate it, and therefore cannot take steps to comply with laws pertaining to product liability, including laws that impose a duty to warn the user of any dangers involved with the operation and maintenance of this equipment. -
Page 19: Replacing End Flange And Batteries
NOT pull too hard or far on the battery pack or it will come unplugged and the unit will need to be returned to WET Labs. 10. Gently pull the white cord at the loop to remove the battery pack from the pressure housing. -
Page 20: Checking Vent Plug, Changing O-Rings
Rotate the vent plug to begin tightening the screw. Finish tightening using a screwdriver, being careful not to overtighten truss screw. Note A portion of the truss screw head has been removed to allow for venting in case of pressure buildup. ECO VSF User’s Guide (VSF) Revision AN 14 Sept. 2011... -
Page 21: Data Analysis
Data Analysis Data from the ECO VSF represents raw output from the sensor. Applying linear scaling constants, this data can be expressed in meaningful forms of inverse meters for each of the respective angles. Data Corrections Attenuation coupling—Many scattering sensors require a subsequent attenuation correction for pathlength coupling of the transmitted and scattered light. -
Page 22: Determining Other Angle-Specific Coefficients
Determining other Angle-Specific Coefficients Other angular scattering coefficients can be determined through interpolation between the measured angles. At this time WET Labs offers no preference in the type of curve fit to use for deriving these coefficients. 5.2.1 Determining Backscattering Coefficient... -
Page 23: Testing And Calibration
The total power consumption (voltage times current) must remain below 600 mW over the entire voltage range. Calibration Calibration of the ECO VSF involves the following steps. 1. Numerical determination of the volume weighted angular region for each scattering angle. ECO VSF User’s Guide (VSF) Revision AN 14 Sept. - Page 24 Weighting functions were determined in this manner for each source–detector pair (nominal angles of 100, 125, and 150 degrees) and are plotted in the figure below. ECO VSF User’s Guide (VSF) Revision AN 14 Sept. 2011...
- Page 25 From the curves obtained with varying concentration we then calculate the absolute response of the instrument. These are the scaling coefficients supplied with each instrument. ECO VSF User’s Guide (VSF) Revision AN 14 Sept. 2011...
-
Page 26: General Terminal Communications
General Terminal Communications While WET Labs supplies a host software package for instrument configuration and data retrieval, the unit sensors can be controlled from a terminal emulator or customer-supplied interface software. This section outlines hardware requirements and low-level interface commands for this type of operations. -
Page 27: Device And Output Files
= measured volts dc (not used on VSF) Valid Column Descriptions are listed below. Date=x MM/DD/YY Time=x HH:MM:SS N/U=x The column is Not Used N/U=x The column is Not Used ECO VSF User’s Guide (VSF) Revision AN 14 Sept. 2011... -
Page 28: Sample Device File
6. 150 degree angle output signal 7. Thermistor º º º Date Time Therm 9/17/2003 13:11:20 9/17/2003 13:11:21 9/17/2003 13:11:22 9/17/2003 13:11:23 9/17/2003 13:11:24 9/17/2003 13:11:25 9/17/2003 13:11:26 9/17/2003 13:11:27 9/17/2003 13:11:28 ECO VSF User’s Guide (VSF) Revision AN 14 Sept. 2011... -
Page 29: Appendix A: Mounting Bracket Drawing
Appendix A: Mounting Bracket Drawing ECO VSF User’s Guide (VSF) Revision AN 14 Sept. 2011... - Page 30 WET Labs WEEE Policy In accordance with Directive 2002/96/EC and the Council of 27 January 2003, WET Labs policy regarding the collection and management of Waste Electrical and Electronic Equipment (WEEE) is published here and is available at www.wetlabs.com. A core component of our corporate vision is to accept responsibility for preserving our environment and we embrace the opportunity to work with our customers and the EU to reduce the environmental impact resulting from the continuous improvement of our products.
- Page 31 M. Johnson Finalize pressure sensor and thermistor output 11/1/06 calculations (DCR 509) M. Johnson Delete reference to refilling pressure sensor, update 9/11/07 shipping requirements (DCR 531) M. Johnson, H. Van Zee ECO VSF User’s Guide (VSF) Revision AN 14 Sept. 2011...
- Page 32 Change reference column to N/U M. Johnson, H. Van Zee 9/21/10 Change LED from 660 to 650 nm (DCR 691) H. Van Zee 9/14/11 Add WEEE Statement (DCN 775) H. Van Zee ECO VSF User’s Guide (VSF) Revision AN 14 Sept. 2011...
