Haneco SKYLUX G4 Installation Manual

HANECO LED HIGHBAY INSTALLATION GUIDE
Thank you for choosing Haneco SKYLUX G4/SL/SP Highbay.
We strongly recommend that you read this manual carefully before installation.
This installation guide is suitable for SKYLUX G4/SL/SP model.
• Installation must be carried out by a licenced electrician and in accordance
• Ensure input voltage conforms within product specifications.
• Ensure wires are securely connected.
• Before switching on, ensure all wires are correctly connected.
• The warranty is void if product is not installed according to the instructions.
Note: Product technical information and specification may change over time without prior
notice. For latest information, please contact our customer service or visit our website
www.haneco.com.au
Product Specification
PRODUCT CODE
SKYLUX120W-G4
SKYLUX200W-G4
SKYLUX120W-SL
SKYLUX200W-SL
SKYLUX120W-SP
SKYLUX200W-SP

Installation

1. Ensure main power supply is switched off before commencing the installation.
2. Remove the IP65 cover to access the power and color dip switch. Push inward and turn counterclockwise to remove the IP65 cover as shown in
the figure below.
3. Set the desired power and color tone.
Note:
a) Only Skylux G4 model has the color switchable option.
b) Fitting are preset with it highest wattage. To adjust lower fitting wattage, turn the dip switch to ADJ.
4. Ensure to install the IP65 cover.
5. Screw the eye bolt on top of the luminaire.
6. Install optional accessories and desired mounting setting.
7. Install the luminaire onto the desired location.

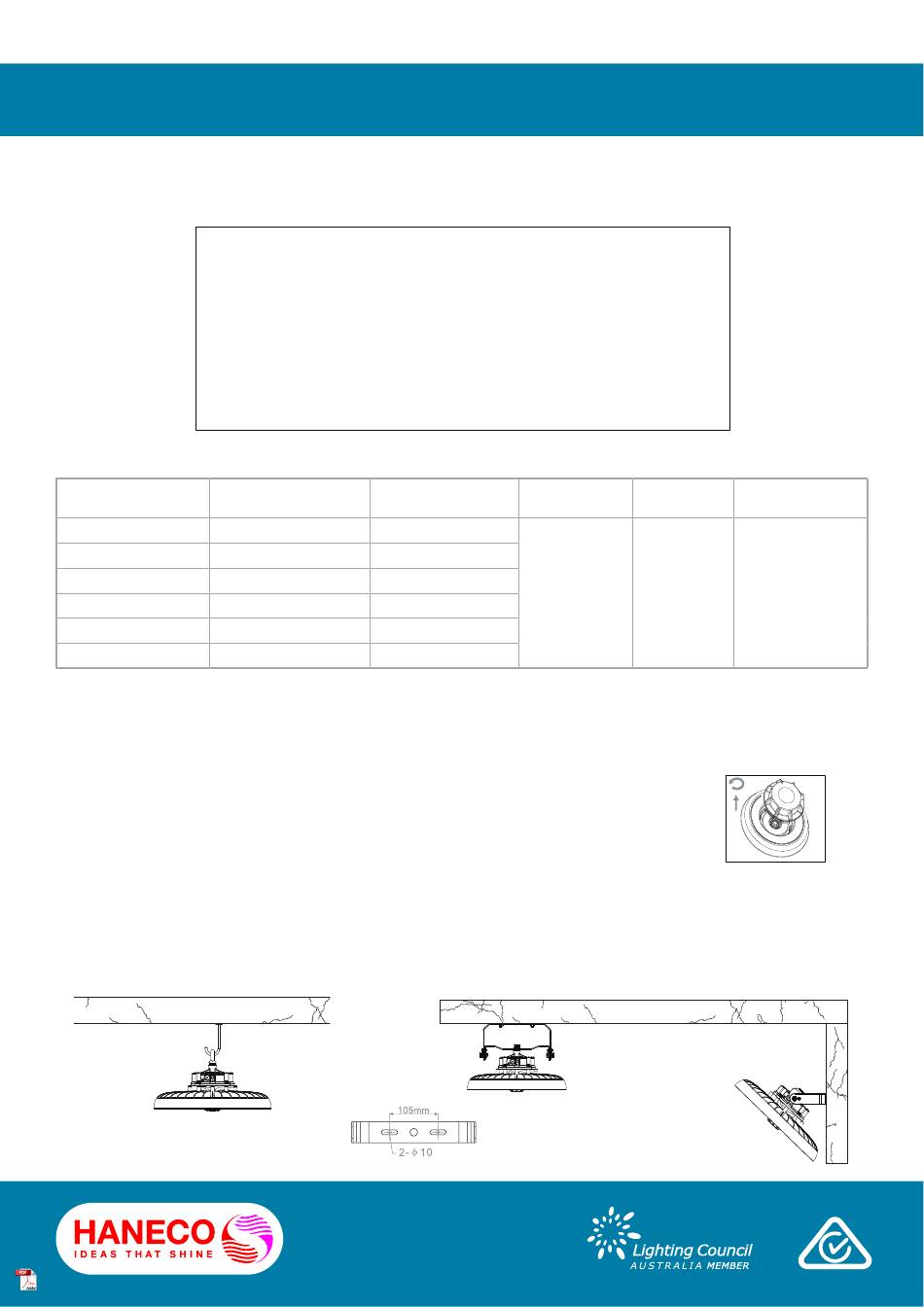

Mounting Option

Ceiling mounting with hook
,
SKYLUX
with these instructions and relevant Australian standards and local regulations.
POWER
60/70/90/120 3000/4000/5000
100/150/170/200 3000/4000/5000
60/70/90/120
100/150/170/200
60/70/90/120
100/150/170/200
For more information
www.haneco.com.au
1300 001 LED (533)
G4/SL/SP
WARNING
VOLTAGE/
CCT
FREQUENCY
5000
220 - 240
50Hz - 60Hz
5000
5000
5000
Ceiling or wall mount with bracket
Not Included (available as accessories)
Mounting bracket holes
IK/IP OPERATING
RATING TEMPERATURE
IK08
-35 - 50°C
IP65
