HANECO LIGHTING EMERGENCY LED LIGHT INSTALLATION GUIDE
Thanks for choosing our LUME LED Emergency Light.
We strongly recommend that you read this manual carefully before installation.

Installation

The LUME is tested to AS/NZS60598.2.2:2001 and AS/NZS2293.3 standards.
Insulation materials used to abut and cover the luminaire must meet the following requirements:
1: Be of a type that can maintain it's dimensions and structural intergrity when exposed to the maximum surface temperatures of
the class of luminaire, being 90˚C and must withstand a 30s needle flame test carried out in accordance with AS/NZS 6095.11.5 with
the flame applied to all surfaces of the sample.
ALLOWED TO SIDE ABUT TO TIMBER STRUCTURE OR
COVERED UNDER THERMAL INSULATION
1. Cut minimum Ø40mm hole, minimum Ø70mm hole with small adaptor or Ø120mm with large adaptor.
(for driver installation through Ø40mm hole see diagram overleaf).
2. Insert plug into socket.
3. Hold mounting clips up to sides of emergency light and insert into cut-out so that springs retract onto rear surface of ceiling.

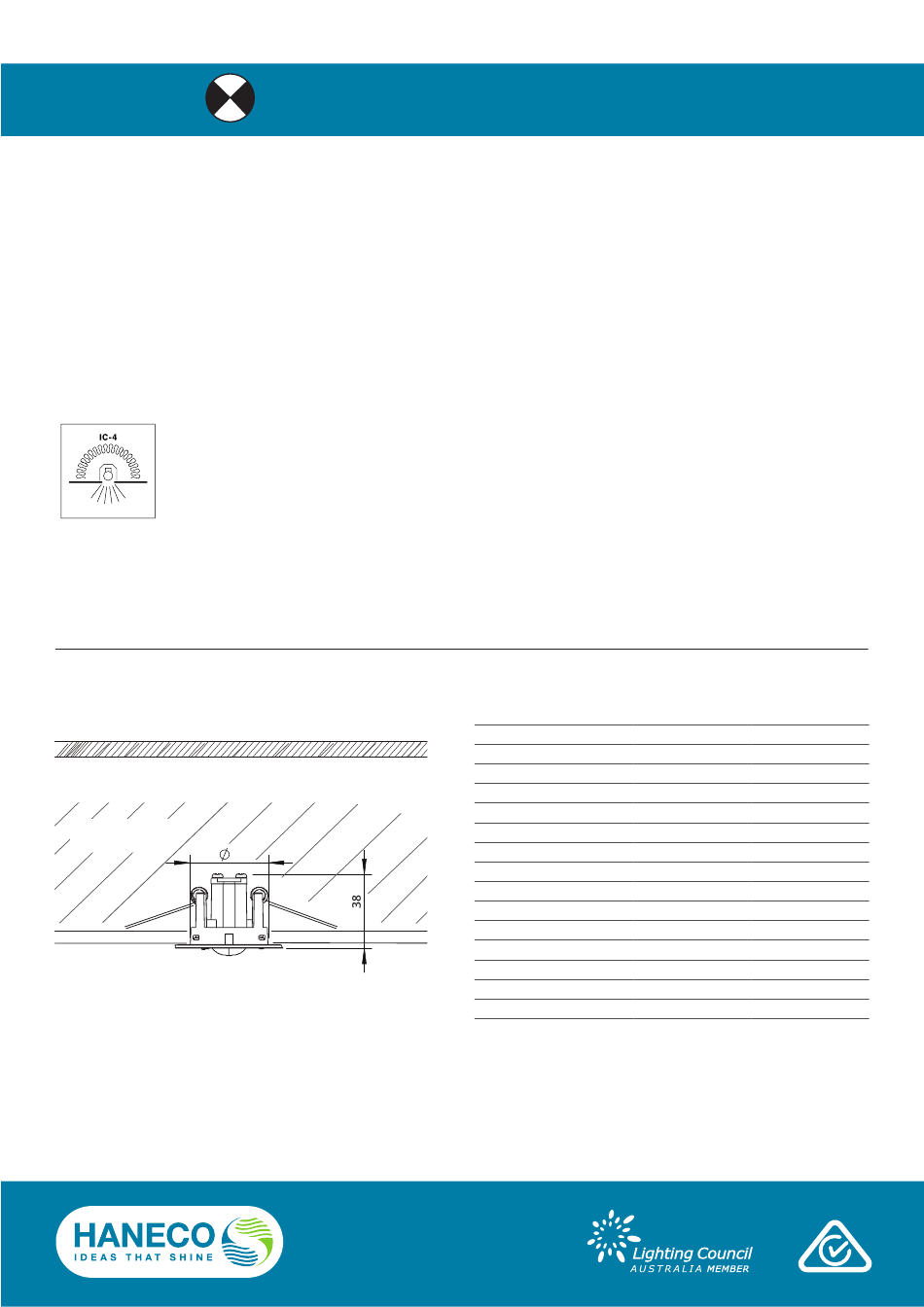

INSTALLATION DIAGRAM

Building element above fitting

Insulation

Note: Ceiling max. thickness <14mm
LUME REMOTE
39
For more information
www.haneco.com.au
1300 001 LED (533)

Technical Data

LUME1WD40
Rated power supply 220-240 VAC 50/60HZ
Power (Standby) 1.2W
Power (Max) 2.5W
Charge time 16 hours
Discharge duration >1.5 hours
Test facility Manual test
Operation Non-maintained
Response time <0.5S
Degree of protection IP20
Insulation class Class II
Material Polycarbonate
Ambient temperature 0...+40°C
Battery type LiFePO4 3.2V 1.5Ah LiFePO4 3.2V 3.6Ah
Emergency classification D40
Product Code: LUME1WD40-REMOT
LUME3WD63
2.5W
4.5W
D63
LUME3WD63-REMOT
