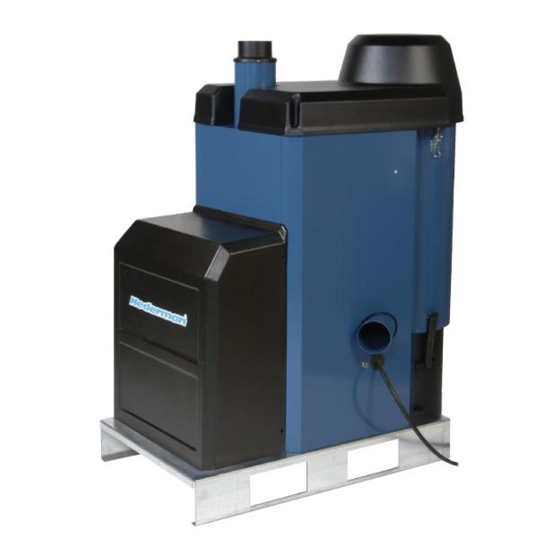

Nederman L PAK Series Instruction Manual
Hide thumbs
Also See for L PAK Series:
- Manual (17 pages) ,
- User manual (178 pages) ,
- Original instruction manual (18 pages)
Related Manuals for Nederman L PAK Series
Summary of Contents for Nederman L PAK Series

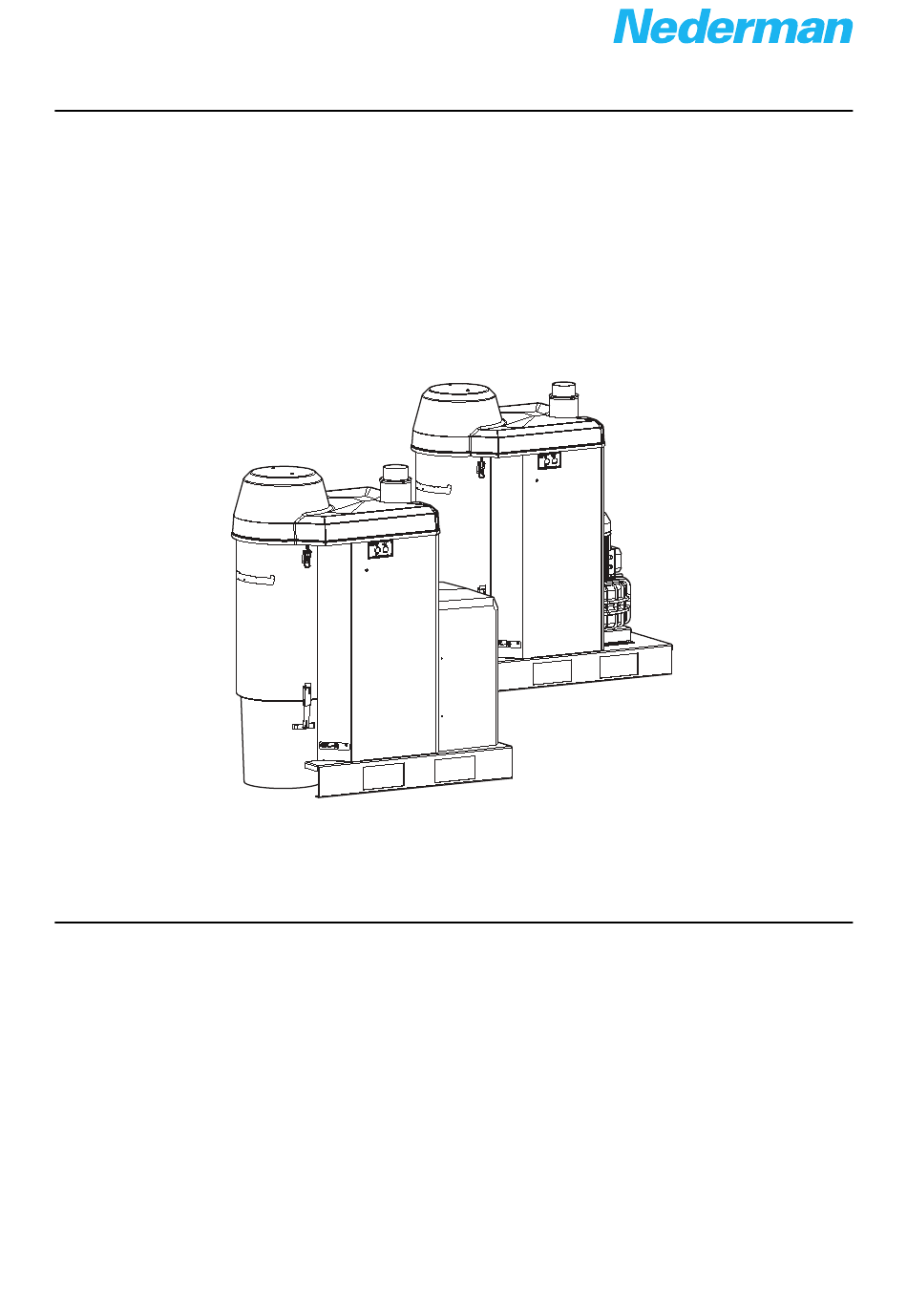

- Page 1 Instruction Manual, PLC L-PAK Series L-PAK 150/250 Advanced 50 Hz, 60 Hz Original instruction manual, plc INSTRUCTION MANUAL, PLC 2022-03-17 2130223 (01)
- Page 2 L-PAK 150/250 Advanced Trace back information: Workspace Main version a1 Checked in 2022-03-17 Skribenta version 5.5.018...
-
Page 3: Table Of Contents
L-PAK 150/250 Advanced Table of contents Figures ..................................... 1 Preface .................................... 2 Safety ....................................Classification of important information ......................3 Description ..................................4 Unit Operation ................................Software with extended functionality ......................Unit operation modes ............................5 PLC messages ................................. Status messages ..............................5.1.1 L-PAK Off (Off mode) .......................... -
Page 4: Figures
L-PAK 150/250 Advanced Figures NEDERMAN Hi Vacum Unit L-PAK TimeTo Service 2000 Hours Pilot signal OFF Pilot signal On Hi Vacuum Unit Standby Wai�ng For Pilot Signal Mo 15:33 2018-01-22 Hi Vacuum Unit Running Running Time 05:33 Min P = -20 kPa... - Page 5 L-PAK 150/250 Advanced...
-
Page 6: Preface
See also livered, notify the carrier and the local Nederman rep- Figure 1 for a flow chart showing how the unit goes resentative immediately. -
Page 7: Plc Messages
The pump motor is off, there is no vacuum, the FCV is closed, and the unit cannot be activated by a pilot signal. TimeToService: The amount of time until the next scheduled service. The default setting is 2000 hours. See Section 6.2.2 H-Meter Nederman Hi Vacuum Unit L-PAK Time To Service 2000 hours 5.1.2 L-PAK Standby (Standby mode) -
Page 8: Idling (Idling Mode)
L-PAK 150/250 Advanced 5.1.4 Idling (Idling mode) The unit is in Idling mode. The pump motor is on, there is no vacuum, and the FCV is open. The unit goes into Idling mode when there has been no pilot signal for the time set in DIR_Time, see Section 6.2.5 DIR_Time. -
Page 9: Status Report
L-PAK 150/250 Advanced 5.1.6 Status report NEDERMAN ESC + C Hi Vacum Unit L-PAK Thu 10:45 2018-02-01 TimeTo Service 2000 Hours Status Report 1 Status Report 2 CASAlarm 2180523-0-EN Starts FCTmr Clean Puls FLT M-Prot FanTempHi ZV Detect CleanePulse PSILFC-I2 Press the down arrow once to show the time and date screen. -
Page 10: Warning Messages
L-PAK 150/250 Advanced 5.2 Warning messages If a warning is activated, there is a problem that needs to be corrected, but the unit continues to work. When a warning is activated, Output Q4 and White lamp button “Filter Cleaning/ Test start” flash with intervals, 1 second On/3 second Off. -
Page 11: Alarm! Fan Hi-Temp
L-PAK 150/250 Advanced 5.3.1 Alarm! Fan Hi-Temp When the fan temperature passes above 125°C, a Warning Fan Hi-Temp message is displayed, and the filter cleaning valve opens to let air in to cool the fan. If the filter-cleaning valve has been open to cool the fan for more than 8 minutes, and the temperature has not gone below 90°C. -
Page 12: Plc Settings
L-PAK 150/250 Advanced 6 PLC settings 6.1 Find a parameter and set its value NEDERMAN Stop > Hi Vacum Unit Program > L-PAK Setup > Thu 10:45 Network > 2018-02-01 TimeTo Service Diagnos cs > 2000 Hours Set Parameter H-Meter >... -
Page 13: Parameter Settings
L-PAK 150/250 Advanced 6.2 Parameter settings The following PLC displays show the different settings that can be configured for the unit. 6.2.1 Adjust the time and date NEDERMAN Stop > Program > Hi Vacum Unit L-PAK Setup > Thu 10:45 Network >... -
Page 14: Ssr_Time
6.2.6 Weekly timer The weekly timer sets the unit to “Stand By” mode and “Off Mode” at preset times. If the pilot signal “PS” is act- ive and the Vacuum unit is in Standby mode, the unit starts. NEDERMAN Stop >... - Page 15 L-PAK 150/250 Advanced NOTE! There are several other input menus on the same level as the date and time screen. If pressing the down arrow takes the PLC to one of those menus, use the left arrow to get to the date and time screen. Daily AM setting D1: = MTWTF: Default setting;...
-
Page 16: Ottmr
L-PAK 150/250 Advanced 6.2.7 OTTmr Menu for setting the overtime timer. If the unit needs to be used after the weekly timer has expired, the unit can be turned on for a set number of hours by pressing the external standby button. When the OTTmr expires, the machine goes back into Off mode. -
Page 17: Clean Cycle
L-PAK 150/250 Advanced 6.2.10 Clean cycle Menu for setting the opening and closing times for the “FCV” Filter Cleaning Valve. FCV cleaning cycle repeats X times depending on the value of parameter ‘On’. This function is always active when filter cleaning takes place. Tch = Vacuum Building time (Charge Time): Default is 5 seconds. -
Page 18: Standard Pilot Signal (Ps) Input
L-PAK 150/250 Advanced 6.4 Standard Pilot Signal (PS) input 6.4.1 PS Input 2 Input 2, terminals 13 and 14 are for the standard pilot signal input. It is possible to set this input into 2 state Standard or PSIFC mode. Standard mode Switch = Off: Filter cleaning by timer or manual cleaning is possible any time when PS is activated. - Page 19 www.nederman.com...
